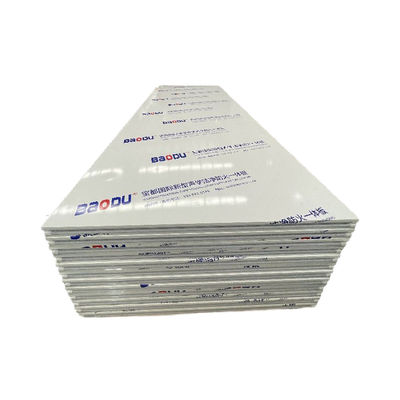

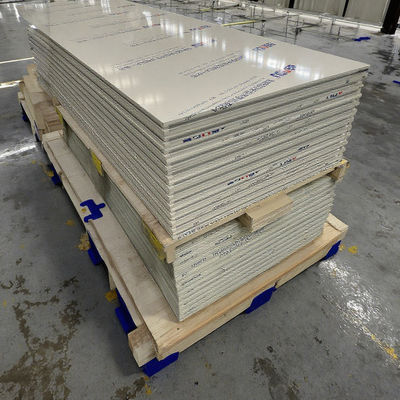

New Design Pharmaceutical Modular GMP Standard Clean Room Sandwich Panel

Product Overview----------------------------------------------------------------------------

GMP requires a cleanroom or clean area for pharmaceutical manufacturing. Within the GMP there are further standards for the materials used in the construction of a cleanroom or area compliant with GMP. All materials must be able to withstand frequent cleaning and disinfection. Additionally, materials must be free of cracks, smooth and level, and able to interlock seamlessly. Particulate materials may not be used due to the risk of contamination. Aside from GMP compliance, other factors such as durability, ease of installation, and cost come into consideration when designing a cleanroom. At BAODU we will guide you through the design process step by step to ensure that both GMP standards, your needs, and your budget are all satisfied.

-Panel come with steel frame four sides to avoid contamination
-Resistant to chemical, attack abrasion and scratches Clean Room Fabrication (Architecture), including: clean room partition wall system; clean room suspended ceiling system.
-High quality insulation core materials
-Pre-embedded reinforcement for the opening of light fixture and air filters.
-Pre-embedded conduit for wiring.
-Advanced design makes all connection smooth, flush and cleanable
-Easy and fast installation system
-Finishing Surface can be flush connection as required.
-Strong walkable ceiling/ false ceiling

Machine –made economical sandwich panelModular wall and ceiling sandwich panel for china modular clean room turnkey for pharmaceutical factory
-Hand-made modular sandwich panel
-Skin:
- Pre-painted galvanized steel (PPGI) skin
-304S.S skin
-HPL(Melamine high pressure laminate) skin
-Core insulation material:
-EPS(Expanded polystyrene)
-PUF (Polyurethane foam)
-Rock wool (mineral wool)
-Paper or aluminum honeycomb
-With magnesium gypsum board

Clean Room Sandwich Panel Characteristics----------------------------------------------------------

Related Purification Equipment---------------------------------------------------------

                                            Pass Box                Laminar Clean Bench                  Air Shower

                                       Fan Filter Unit(FFU)       Air Handling Unit(AHU)        PVC Rolling Door

Clean room doors for modular clean room turnkey for pharmaceutical factory
-Alu frame panel doors
-Flush type steel skin doors
-HPL skin doors
-Stainless steel doors
-Auto sliding door
-Emergency door
Clean room windows for modular clean room turnkey for pharmaceutical factory
-Flush type double glass window
-Alu frame double glass window
-Single glass window
Alu profile coving, corner, hangling and connection system

HVAC System for modular clean room turnkey for pharmaceutical factory
•HVAC design and room data: according to ISO14644-1 and CFR209E cleanliness class
Chiller system:
- Air cooling chiller
-Water cooling chiller
Air handling unit (AHU)
•Humidifier or dehumidifier
•Air supply ducts
•HEPA filter box
•Air return and air exhaust ducts
•Diffuser, grills , valves, damper and louver, fan etc
Flooring system for Modular Portable Clean Room 100 class clean room house Prefabricated

Clean RoomAccessory Equipment:
-Clean room telephone
-Static pass through box
-Dynamic pass through box
