Lightweight Insulated Steel Sandwich Panel 75mm ODM

Name: Lightweight Insulated Steel Sandwich Panel 75mm ODM
Brand: BAODU
SKU: Rockwool Sandwich Panel
Rating: 4.9 (136 reviews)

Place of Origin	Hebei,China
Brand Name	BAODU
Certification	CE
Model Number	Rockwool Sandwich Panel
Minimum Order Quantity	Discussible
Price	Reasonable
Packaging Details	In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time	15days
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	Lightweight Insulated Sound Mineral Wool Rockwool Sandwich Panel With PU Edge Color Steel	Usage	Construction Insulation Shop Outdoor Office
Core Material	Rockwool Board	Type	Rockwool Sandwich Panel With PU Edge
Certificate	CE	Length	Customized
Heat-insulation	Yes	Application	Wall Building Warehouse Roofing Wall And Roof
Width	1000mm	Advantage	Superior Fireproof-insulation,fire Proof,Light Weight&Easy To Install,Fireproof,Innovative Technology
High Light	ODM steel sandwich panel , 75mm steel sandwich panel , Lightweight 75mm sandwich panel

Leave a Message

Product Description

Lightweight Insulated Sound Mineral Wool Rockwool Sandwich Panel With PU Edge Color Steel

Product Description:

Rockwool Sandwich Panel is a type of insulated panel made of rock wool, which is a non-combustible, high temperature resistant and sound insulation material. It has a modern design and is available in a wide range of colors that can be customized to meet different needs. The panel is CE certified, waterproof and provides excellent after-sale service including online technical support and onsite installation. Rockwool Sandwich Panel is designed for buildings requiring sound insulation and thermal insulation, such as factories, warehouses and office buildings.

Features:

Fire resistance

Sound insulation

High coefficient of the thermal insulation

Fast speed of the construction

Energy efficiency - that enables us to apply cost-effective solutions while keeping the preferred temperature level in the building

Applications:

BAODU Rockwool Sandwich Panel is an insulated panel made from rock wool. It offers excellent thermal insulation and fire protection properties. The rock wool material used in this panel is environmentally friendly and non-toxic. The panel can also be used in both interior and exterior construction projects. It is lightweight, easy to install and has a long service life.

Lightweight Insulated Steel Sandwich Panel 75mm ODM 0

Technical Parameters:

Technical parameters of BAODU new model fireproof sandwich panel
Allowable vertical load and thermal conductivity of BAODU new model fireproof rockwool roof sandwich panel (allowable deflection f≤L/200)
S(mm)	W/m²K	G(kg)	P=KN/m2	0.60	0.80	1.00	1.20	1.50
50	0.75	15.53	L(m)	3.66	3.13	2.75	2.46	2.12
70	0.53	18.37	L(m)	4.90	4.22	3.73	3.35	2.91
100	0.41	21.21	L(m)	5.99	5.17	4.58	4.12	3.59
125	0.36	24.05	L(m)	6.91	5.96	5.28	4.79	4.14
150	0.31	26.88	L(m)	7.82	6.75	5.98	5.37	4.68
200	0.23	22.78	L(m)	9.65	8.33	7.38	6.62	5.77
Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200)
S(mm)	W/m²K	G(kg)	P=KN/m2	0.60	0.80	1.00	1.20	1.50
50	0.69	12.95	L(m)	3.74	3.23	2.86	2.57	2.23
70	0.47	14.50	L(m)	5.01	4.34	3.86	3.48	3.05
100	0.36	16.04	L(m)	6.21	5.32	4.73	4.28	3.75
125	0.34	17.06	L(m)	7.11	6.31	5.77	4.93	4.32
150	0.33	19.14	L(m)	8.00	6.94	6.18	5.58	4.89
200	0.30	22.78	L(m)	9.79	8.56	7.63	6.88	6.00

Customization:

Our Rockwool Sandwich Panel is an insulated panel with a versatile design. It is made of rock wool, which has excellent soundproof and heat-insulation performance. It is certified by CE, so you can be rest assured that the quality is top notch. The design style is modern and it can be customized to your needs. The minimum order quantity is discussible and the price is reasonable. We can deliver the product to you within 15 days, and the payment terms are L/C, D/A, D/P, T/T, Western Union, MoneyGram. We have a supply ability of 5000 square meters per day.

Support and Services:

At Rockwool, we provide comprehensive technical support and service for our Rockwool Sandwich Panels. Our technical support team is available to answer any questions you may have about the product and its applications. We offer on-site installation and repair services, as well as detailed product information and product training. We also provide ongoing technical support and advice for our customers, ensuring that your product is installed and maintained correctly.

Our customer service team is available to answer any questions or concerns you may have about our Rockwool Sandwich Panels. We provide fast and friendly service to all of our customers. We are dedicated to providing the best customer service experience possible.

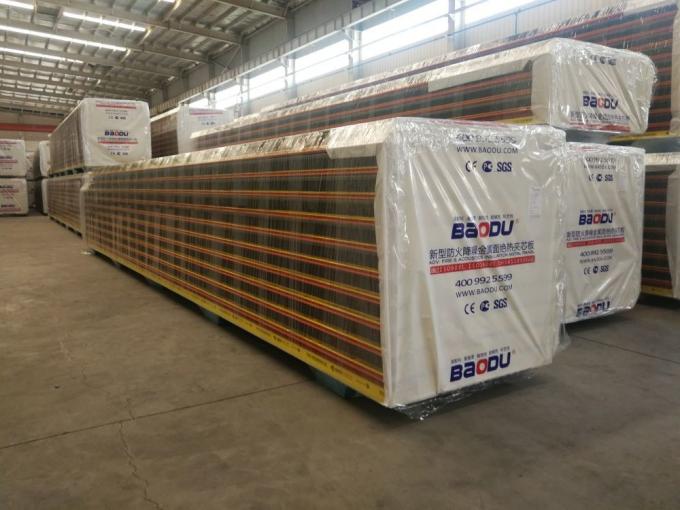

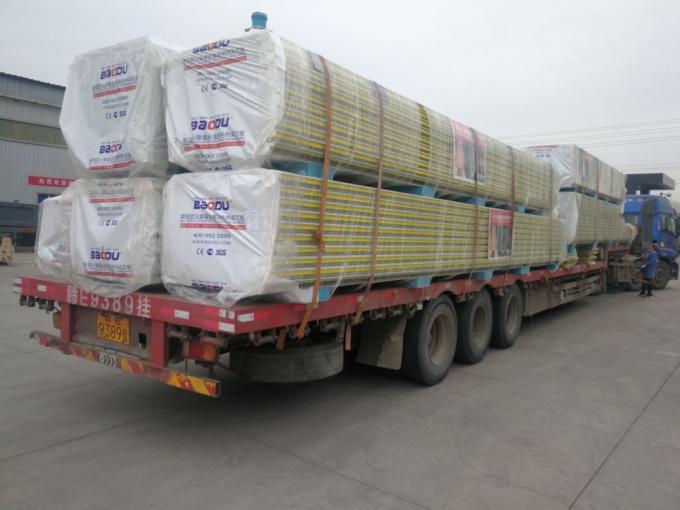

Packing and Shipping:

Packaging and Shipping of Rockwool Sandwich Panel:

The Rockwool Sandwich Panel will be packaged in protective packaging material to prevent damage during shipping. The panel will be securely packed and strapped to a pallet for easy and safe transportation. The shipment will be labeled with the corresponding order information and the shipping address.

Lightweight Insulated Steel Sandwich Panel 75mm ODM 2
