Exterior Thermal Insulated Rockwool Sandwich Panel Soundproof Custom
| Place of Origin | Hebei, China |
|---|---|
| Brand Name | BAODU |
| Certification | CE |
| Document | Product Brochure PDF |
| Minimum Order Quantity | Discussible |
| Price | Discussible |
| Packaging Details | In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements. |
| Delivery Time | 15days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 Square Meters per Day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Pu Sealing RockWool Sandwich Panel Insulated Thermal Fireproof Waterproof Exterior | Width | 950mm,960mm,1000mm |
|---|---|---|---|
| Thickness | 50mm-200mm,etc | Density | 100kg/m3 |
| Steel Thickness | 0.4-0.8mm | Color | Customized |
| Type | EPS Sandwich Panels,Rock Wool Sandwich Panels,Polyurethane Sandwich Panels | Length | According To The Transportation |
| Application | Wall,Building,Warehouse,Roofing,wall And Roof | Usage | Construction Insulation,shop,Outdoor,office |
| Highlight | Exterior Rockwool Sandwich Panel,Insulated Rockwool Sandwich Panel,Custom soundproof sandwich panel |
||
Product Description

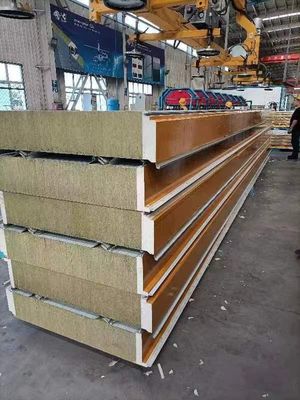

Pu Sealing RockWool Sandwich Panel Insulated Thermal Fireproof Waterproof Exterior
Rockwool insulation is placed between two sheets.
Excellent sound insulation and high fire resistance are the main advantages of the Rockwool Sandwich Panels.
They are characterized by longer fire resistance, than other panels
We offer two types of Rockwool Sandwich Panels to our clients: wall and roofing panels with different thicknesses. In terms of the roofing and walling. we’ve got five ridged Rockwool roofing sandwich panels and Rockwool walling sandwich panels in stock.
Specification
|
Pu Sealing RockWool Sandwich Panel Insulated Thermal Fireproof Waterproof Exterior
Pu Sealing RockWool Sandwich Panel Insulated Thermal Fireproof Waterproof Exterior |
The main advantages of the Rockwool Sandwich Panels are as follows:
Fire resistance
Sound insulation
High coefficient of the thermal insulation
Fast speed of the construction
Energy efficiency - that enables us to apply cost-effective solutions while keeping the preferred temperature level in the building
| Technical parameters of BAODU new model fireproof sandwich panel | ||||||||
| Allowable vertical load and thermal conductivity of BAODU new model fireproof rockwool roof sandwich panel (allowable deflection f≤L/200) | ||||||||
| S(mm) | W/m²K | G(kg) | P=KN/m2 | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50 | 0.75 | 15.53 | L(m) | 3.66 | 3.13 | 2.75 | 2.46 | 2.12 |
| 70 | 0.53 | 18.37 | L(m) | 4.90 | 4.22 | 3.73 | 3.35 | 2.91 |
| 100 | 0.41 | 21.21 | L(m) | 5.99 | 5.17 | 4.58 | 4.12 | 3.59 |
| 125 | 0.36 | 24.05 | L(m) | 6.91 | 5.96 | 5.28 | 4.79 | 4.14 |
| 150 | 0.31 | 26.88 | L(m) | 7.82 | 6.75 | 5.98 | 5.37 | 4.68 |
| 200 |
0.23 |
22.78 | L(m) | 9.65 | 8.33 | 7.38 | 6.62 | 5.77 |
| Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200) | ||||||||
| S(mm) | W/m²K | G(kg) | P=KN/m2 | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50 | 0.69 | 12.95 | L(m) | 3.74 | 3.23 | 2.86 | 2.57 | 2.23 |
| 70 | 0.47 | 14.50 | L(m) | 5.01 | 4.34 | 3.86 | 3.48 | 3.05 |
| 100 | 0.36 | 16.04 | L(m) | 6.21 | 5.32 | 4.73 | 4.28 | 3.75 |
| 125 | 0.34 | 17.06 | L(m) | 7.11 | 6.31 | 5.77 | 4.93 | 4.32 |
| 150 | 0.33 | 19.14 | L(m) | 8.00 | 6.94 | 6.18 | 5.58 | 4.89 |
| 200 | 0.30 | 22.78 | L(m) | 9.79 | 8.56 | 7.63 | 6.88 | 6.00 |
Features:
Baodu wall use the 1000mm dislocation double mortise and tenon joint with Pu sealing rockwool sandwich panel. (connection picture as follows )
1.The PU sealing not only can strength the connection but also can make sure the connection be more smooth. And Pu sealing also can reduce the thermal bridging situation in extremely cold area.
2.The hidden screw facade can prevent the rain or chemical corrosion so that improve the sandwich panel life , which also can make it more beautiful.
3.Dislocation double mortise and tenon joint can make sure the sandwich panel connection be more fasten and which also can prevent the rain goes back to the interior.
4.Double steel plates are used in the connection part which can improve sandwich panel wind-proof function without any nails.
5.Sponge bar are used in the connection part which can provide better airtightness and free from thermal bridging

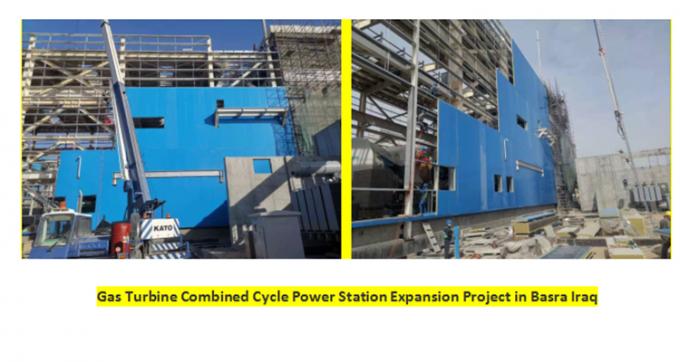

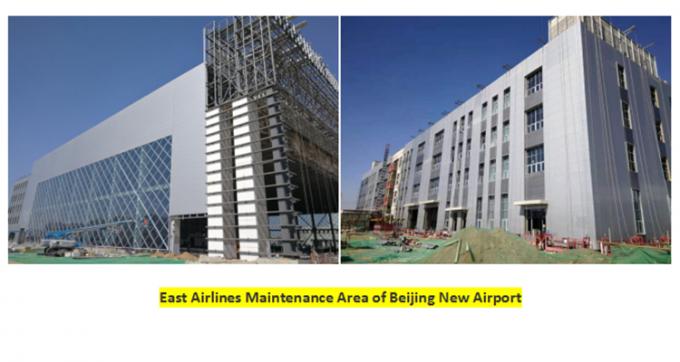

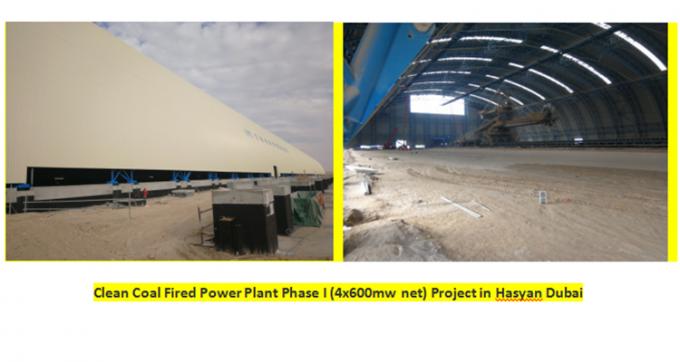

Project Case

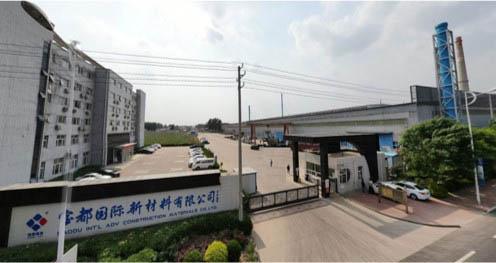

Company Profile
Baodu International Advanced Construction Material Co., Ltd was established in January 2010 with the office in Beijing and factory in Hebei, China. Baodu is a designer, manufacturer, supplier and exporter of industrial noise comprehensive treatment, steel structure, sandwich panel and prefab house. Baodu has an annual output of 6 million square meters of acoustic sandwich panels, 100000 tons of steel structures and 1 million square meters of floor decking sheet. The products are sold in more than 30 countries and regions around the world. Baodu has a professional design team with more than 10 years’ experience, including 5 senior engineers, 20 engineers, and 35 technicians. Baodu has several energy saving and environment protection intellectual property rights, construction and environment protection design qualification, CE certification and Russian GOST certification etc. Baodu participated in the military parade village project for the 60th anniversary of China and project of Beijing Daxing International Airport. Under the guidance of China's "one belt, one road" strategy, Baodu has also undertaken overseas projects such as the project of Thar,Pakistan coal fired power plant, Hasyan Dubai power plant and so on. Finally, welcome your coming to Baodu for a visit and cooperation!
