Modular Steel‑Framed Processing Plant Automobile Component Workshop Roof Drainage Assembly Foundation Anchor Parts Project Drawings Supply
| Place of Origin | Hebei,China |
|---|---|
| Brand Name | BAODU |
| Certification | ISO9001,CE |
| Model Number | Steel Warehouse |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 300square meters |
| Price | $30-45square meter |
| Packaging Details | In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements. |
| Delivery Time | 30days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union, |
| Supply Ability | 100000 Square Meter/Square Meters per Month |
Product Details
| Product Name | Modular Steel‑Framed Processing Plant Automobile Component Workshop Roof Drainage Assembly Foundation Anchor Parts Project Drawings Supply | Processing Service | Bending, Welding, Decoiling, Cutting, Punching |
|---|---|---|---|
| Installation Guide | Installation Drawings And Video | Bracing | Round Bar/Angle Steel/Steel Rod |
| Design | SAP2000/AutoCAD /PKPM /3D3S/TEKLA | Corrosion Protection | Hot-Dip Galvanizing |
| Windows | Aluminum/ PVC Sliding Window | Sail Finishing | PVDF/PTFE, Pvc Coated |
| Roof And Wall | Corrugated Steel Plate Or Sandwich Panel | Parapet Wall | As Requested |
| Highlight | modular steel-framed processing plant,automobile component workshop roof drainage,steel structure warehouse foundation anchor |
||
Product Description
Modular Steel-Framed Auto Component Workshop
Complete supply solution for automobile component processing plants including modular steel frame, roof drainage assembly, foundation anchor parts, and comprehensive project drawings.
Key Specifications
Building Size
78×30×8.5m (Customizable)
Steel Column
H(300-550)×200×6×10mm Q345
Steel Beam
H(300-550)×180×6×8mm Q345
Roof Purlin
C180×75×50×2.5mm
Wall Purlin
C180×75×50×2.5mm
Roof Panel
50-200mm Sandwich Panel
Wall Panel
50-200mm Sandwich Panel
Anchor Bolts
M24 Q235
Technical Specifications
System Components
Baodu Steel Structure specializes in pre-engineered buildings including warehouses, workshops, and industrial facilities with comprehensive structural systems and custom additions.
Roof and Wall System
Advanced insulation and weatherproofing systems protect structures from environmental factors while ensuring energy efficiency and durability.
Main Steel Frame
Engineered for strength and stability, our steel frames provide reliable support for demanding industrial applications with long-term durability.
Additional Materials
Complete range of accessories and safety features to ensure full functionality and performance of your steel structure project.

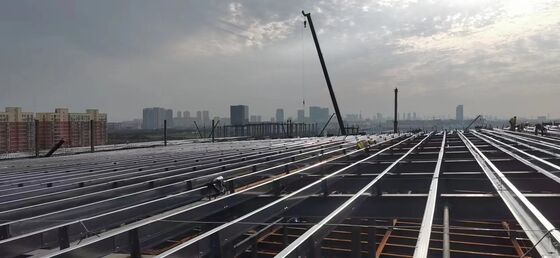

Construction Process
Project Portfolio
Our steel structures serve diverse applications including warehouses, workshops, factories, cold storage, commercial buildings, aviation facilities, and agricultural buildings.
Quality Assurance
We implement comprehensive quality management throughout raw material supply, engineering design, manufacturing, and installation. Our professional quality team uses advanced inspection equipment and supports third-party certification by SGS, TUV, and BV.
Certifications & Capacity
Technical Support & Services
Key Advantages
- Large-span, column-free interiors for flexible production layouts
- High-strength Q355/Q235 steel framework with superior load-bearing capacity
- 40-60% faster construction with prefabricated components
- Energy-efficient design with integrated ventilation and climate control
- Customizable and scalable solutions for future expansion
Company Profile
Established in 2010, Baodu International is a leading manufacturer of industrial construction materials with annual production capacity of 6 million square meters of acoustic sandwich panels, 100,000 tons of steel structures, and 1 million square meters of floor decking. Our professional design team has completed prestigious projects including Beijing Daxing International Airport and international power plant facilities.
Packaging & Shipping
Professional seaworthy packaging with waterproof protection, optimized container loading for 20GP/40GP/40HQ containers, and complete export documentation including structural test reports, quality certificates, and comprehensive project drawings.
Frequently Asked Questions
What are the advantages of your modular steel-framed auto workshop compared to ordinary steel buildings?
Our workshop is professionally optimized for auto parts production with anti-vibration, dust-proof, and high-precision structural design. We provide one-stop supply of modular steel frame, roof drainage system, foundation anchor parts, and complete project drawings, avoiding scattered procurement and design mismatches.
Can you provide complete official project design drawings?
Yes. We provide full sets of standardized project drawings including architecture, structure, foundation, and drainage systems. All drawings support overseas project review, construction guidance, and engineering acceptance.
What is the function of the matched foundation anchor parts?
The customized anchor parts enable precise positioning and firm fixation of the steel frame, enhancing overall wind and seismic resistance while preventing structural displacement from equipment vibration.
Is the roof drainage system professionally designed for large workshops?
Absolutely. Our industrial-grade roof drainage system features optimized slope design and multi-point drainage layout to quickly remove rainwater and prevent water accumulation, protecting internal production equipment from moisture damage.
Is the modular structure convenient for later workshop expansion?
Yes. The standardized modular steel frame and reserved anchor positions support free expansion, partition adjustment, and equipment upgrades without requiring complete reconstruction.
Does the workshop meet environmental and safety standards for auto parts production?
Yes. The structure meets international industrial safety standards with dust-proof, sound-insulated, and ventilated systems that comply with automobile component processing factory specifications.
How long is the service life of the modular steel processing plant?
With hot-dip galvanizing or multi-layer anti-rust treatment, the main steel frame has a service life of 40-50 years, ensuring long-term stable operation for auto parts production.
