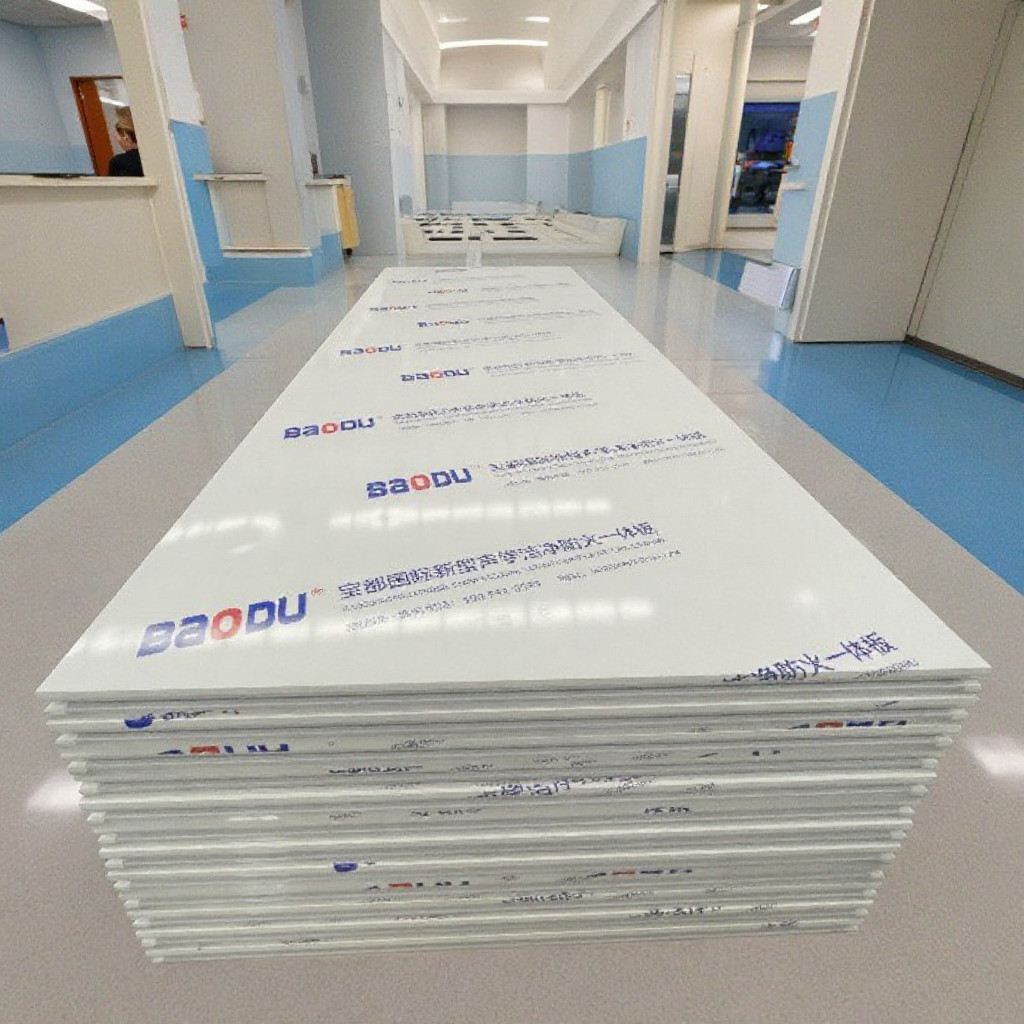

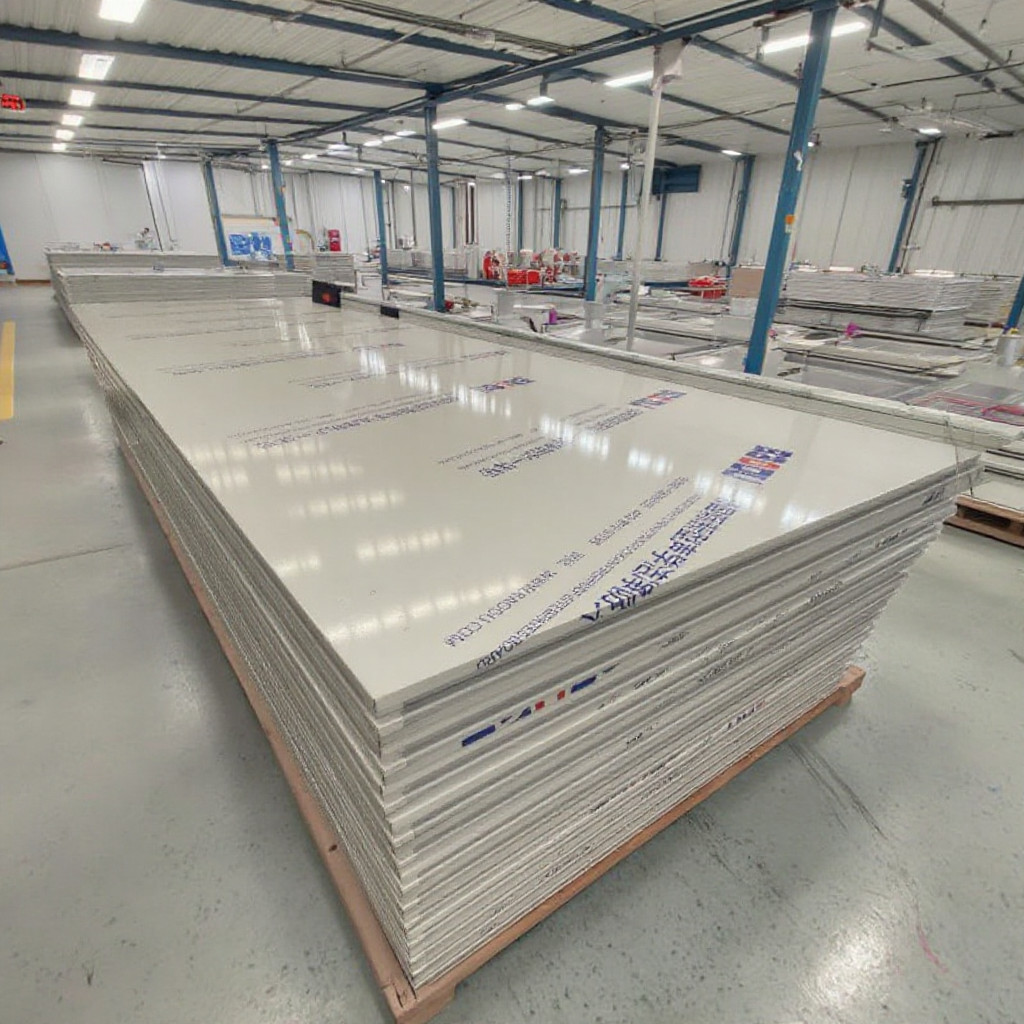

Four Sides Frame Rockwool Cleanroom Sandwich Wall Panel
| Place of Origin | HEBEI,CHINA |
|---|---|
| Brand Name | BAODU |
| Certification | CE |
| Model Number | Four Sides Frame Rockwool Cleanroom Sandwich Wall Panel |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 500square meters |
| Price | $7-10square meter |
| Packaging Details | For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements. |
| Delivery Time | 15days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 Square Meter/Square Meters per Day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Width | 980mm,1180mm | Product Name | Four Sides Frame Rockwool Cleanroom Sandwich Wall Panel |
|---|---|---|---|
| Keyword | Rockwool Cleanroom Sandwich Wall Panel | Steel Facer Thickness | 0.4-0.8mm |
| Core Materials | Rockwool | Outer Plate Material | PPGI |
| Frame Thickness | 0.6/0.8mm | Applications | Pharmaceutical Cleanroom, Electronic Cleanroom, Food Cleanroom, Etc. |
| Lead Time | 2-7day | Max Length | 9000mm |
| Highlight | Cleanroom Rockwool Sandwich Panel,Cleanroom Sandwich Wall Panel,Four Sides Frame Rockwool Sandwich Panel |
||
Product Description
Four Sides Frame Rockwool Cleanroom Sandwich Wall Panel
Product Overview----------------------------------------------------------------------------
The Rockwool Clean room Wall Panel is a multi-layered high-performance composite panel designed for demanding environments such as biopharmaceuticals,precision electronics, and food processing.Its core is made of basalt rock melted at 1,500°C and spun into ultrafine fibers (diameter ≤7μm). Using a 3D pendulum process, the fibers form a dense mesh structure, laminated with galvanized/stainless steel plates (0.5-1.2mm thickness options) and bonded via polyurethane adhesive under continuous thermal pressure. This achieves a structural-functional integrated solution.
Features----------------------------------------------------------------------------------------
Core Features & Technological Breakthroughs
Ultimate Fire Safety
Fire Ratings:* Class A1 (Non-combustible)
* Fire Resistance Test Data:* 100mm thickness: 240 minutes (GB/T 9978.1 fire endurance test)
Cleanroom Environment Adaptability
* Surface Treatment Technologies: * Antibacterial Coating: Nano-silver ions (Ag+ ≥150ppm) with >99.9% inhibition rate against E. coli/Staphylococcus aureus
* Anti-static Layer: Surface resistivity 10^6-10^9Ω , suitable for Class 1000+ cleanrooms
* Airtightness Metrics:* Joint leakage rate <0.01% @ 50Pa pressure difference
* Compatible with integrated FFU filter mounting systems
Mechanical & Environmental Performance
* Impact Resistance: 9mm steel-faced panel withstands 50J impact without cracking
* Eco-certifications:
*≥30% recycled content
* TVOC emissions <220μg/m³
* Reaction to Fire A2-s1,d0
* Fire Resistance Test Data:* 100mm thickness: 240 minutes (GB/T 9978.1 fire endurance test)
Cleanroom Environment Adaptability
* Surface Treatment Technologies: * Antibacterial Coating: Nano-silver ions (Ag+ ≥150ppm) with >99.9% inhibition rate against E. coli/Staphylococcus aureus
* Anti-static Layer: Surface resistivity 10^6-10^9Ω , suitable for Class 1000+ cleanrooms
* Airtightness Metrics:* Joint leakage rate <0.01% @ 50Pa pressure difference
* Compatible with integrated FFU filter mounting systems
Mechanical & Environmental Performance
* Impact Resistance: 9mm steel-faced panel withstands 50J impact without cracking
* Eco-certifications:
*≥30% recycled content
* TVOC emissions <220μg/m³
* Reaction to Fire A2-s1,d0
Product Paramenters----------------------------------------------------------------------------------
|
|
Production Process------------------------------------------------------------------------------------
1. Raw Material Selection:
* Basalt rock (SiO₂≥45%, Al₂O₃≥14%) + slag (≥70% recycled)
2. Fiber Production:
* Electric furnace melting (1,500-1,600°C) → Four-roller centrifugal spinning (7,200rpm) → Fiber diameter 4-7μm
3. Curing Process:
* Phenolic resin spraying (formaldehyde emission ≤0.05ppm, EN 717-1) → Curing oven at 230°C
4. Lamination:
* Steel plate pretreatment (degreasing → phosphating → nano-ceramic coating) → Continuous hot pressing (1.2MPa, 180°C)
5. Quality Control:
* Online X-ray inspection (void detection) → Laser thickness gauge (±0.1mm accuracy) → Batch fire performance testing
Successful Project---------------------------------------------------------------------------------------
Semiconductor Wafer Fabs (Class 10 Cleanrooms)
* Solution:
* Wall-ceiling system integrated with HEPA filters
* Grounding resistance <1×10^6Ω, compliant with SEMI F47 voltage sag standards
* Case Study: 32,000㎡ deployed in a Taiwan 12-inch wafer fab project
Facilities
* Key Technologies:
* Radius corners (R≥50mm) to eliminate cleaning dead zones
* Pre-installed ports for real-time particle monitoring
Data Center Retrofits
* Energy Efficiency Data:
* U-value 0.28 W/m²·K → 18% annual cooling energy savings
