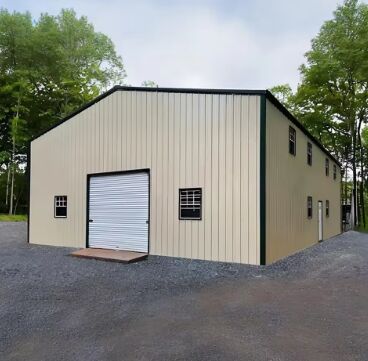

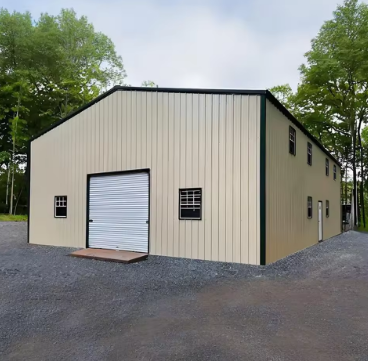

Prefabricated Steel Structure Shopping Mall Construction Prefab Shop Manufacturers Building Company
| Place of Origin | Hebei,China |
|---|---|
| Brand Name | BAODU |
| Certification | ISO9001,CE |
| Model Number | Steel Warehouse |
| Document | Product Brochure PDF |
| Minimum Order Quantity | Discussible |
| Price | Reasonable |
| Packaging Details | In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements. |
| Delivery Time | 15-21days |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability | 10000 Square Meter/Square Meters per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Prefabricated Steel Structure Shopping Mall Construction Prefab Shop Manufacturers Building Company | Keyword | Steel Structure Building Warehouse |
|---|---|---|---|
| Window | Aluminum Alloy Window, Plastic Steel | Roof Cladding | Corrugated Steel Sheet/Sandwich Panel |
| Transport And Load | Container Shipment | Certificate | CE/ ISO9001 |
| Surface Treatment | 1. Painting 2. Galvanized | Warranty | 15years |
| Purlin | C/Z Galvanized Steel(Q235) | Connection | Welded Connection And Bolt Connection |
| Installation | Installation Drawing | ||
| Highlight | prefabricated steel shopping mall,prefab steel warehouse construction,steel structure building manufacturers |
||
Product Description
Prefabricated Steel Structure Shopping Mall Construction
Professional prefabricated steel structure solutions for shopping malls, commercial buildings, and industrial facilities from experienced manufacturers.
Technical Specifications
| Main Steel | PEB Welded H-shaped steel or hot rolled steel. Q355 or Q235 |
| Wall & Roof | EPS, Mineral wool, PU sandwich, corrugated steel sheet, ALC panel |
| Steel sheet paint film | PE18um with AZ20g / PE20um with AZ60g / PE20um with AM150 / HDP with AM150 / PVDF with AM150 |
| Partition wall | PU panel or light steel keel gypsum board or steel sheet |
| Window | Aluminum window or PVC window or hurricane-resistant windows |
| Door | Sliding door / Roller shutter door / Entry door / Hangar door |
| Crane | 5MT, 10MT, 15MT and custom capacities |
Design & Quotation Process
- Customized design services available
- Provide building length, width, eave height, and local weather conditions for accurate quotation
The above specifications are for reference only. Specific material components are customized according to customer requirements.
Required Information for Custom Design
- Location: Country and city where building will be constructed
- Size: Length × width × eave height
- Wind load: Maximum wind speed (kn/m², km/h, or m/s)
- Snow load: Maximum snow height (kn/m², mm) and temperature range
- Anti-earthquake: Required seismic level
- Brickwall: Required height (1.2m, 1.5m, or custom)
- Thermal insulation: EPS, fiberglass wool, rockwool, PU sandwich panels, or metal steel sheets
- Door specifications: Quantity, width (mm), and height (mm)
- Window specifications: Quantity, width (mm), and height (mm)
- Crane requirements: Quantity, maximum lifting weight (tons), and lifting height (m)
Certifications
Applications
Wide Range of Applications
- Manufacturing Facilities: Automotive plants, machinery workshops, food processing plants
- Warehouses & Logistics Centers: Distribution hubs, cold storage, bulk storage facilities
- Aircraft Hangars: Requiring very large, clear-span areas
- Power Stations & Substations
- Agricultural Buildings: Large barns, storage silos, and processing facilities
- Retail Outlets & Superstores: Big-box stores and shopping malls
The Construction Process
- Design & Engineering: Detailed architectural and structural drawings with load calculations
- Fabrication: Precision cutting, welding, and drilling in controlled factory environment
- Site Preparation & Foundation: Excavation and concrete foundation with embedded anchor bolts
- Erection: Assembly of primary steel frame (columns, beams) and secondary elements
- Enclosure: Installation of roof and wall cladding systems with insulation
- Finishing: Adding doors, windows, ventilation systems, skylights, and interior finishes
Packing and Shipping
- Packing: Bundle, nude packing with steel pallet
- Containers: 20GP / 40GP / 40HQ standard containers
- Special Shapes: Open top containers (20FR / 40FR) for oversized components
Container Specifications
| 20'GP | 5.9(L) × 2.34(W) × 2.38(H)m, 17.5 tons (max 22 tons) |
| 40'GP | 12.256(L) × 2.34(W) × 2.38(H)m, 22 tons (max 27 tons) |
| 40'HQ | 12.267(L) × 2.34(W) × 2.69(H)m, 26 tons (max 28 tons) |
We optimize steel beam sizes for GP and HQ containers to minimize sea freight costs.
Company Profile
Baodu International Advanced Construction Material Co., Ltd was established in January 2010 with offices in Beijing and factory in Hebei, China. We are designers, manufacturers, suppliers, and exporters of industrial noise treatment solutions, steel structures, sandwich panels, and prefab houses.
- Annual Production Capacity: 6 million m² acoustic sandwich panels, 100,000 tons steel structures, 1 million m² floor decking
- Global Reach: Products sold in more than 30 countries worldwide
- Expert Team: Professional design team with over 10 years' experience including 5 senior engineers, 20 engineers, and 35 technicians
- Certifications: Energy saving and environmental protection intellectual property rights, construction and environment protection design qualification, CE certification, and Russian GOST certification
Notable Projects: Military parade village project for China's 60th anniversary, Beijing Daxing International Airport, Thar Pakistan coal fired power plant, Hasyan Dubai power plant, and other international projects under China's "One Belt, One Road" initiative.
Frequently Asked Questions
1) Is your company a factory or trade company?
We are a factory, ensuring you receive the best competitive pricing.
2) What can you buy from us?
Steel structures, building materials, steel structure building systems, poultry farm systems, and customized steel solutions with 24-hour one-stop service.
3) Do you offer guiding installation on site overseas for warehouse building?
Yes, we provide installation supervision and training services. Our professional technical engineers have successfully supervised installations in over 50 countries including Algeria, Ghana, Ethiopia, Nigeria, Philippines, Angola, Mauritius, Papua New Guinea, USA, Australia, Uganda, Netherlands and more.
4) What is your main market?
With a global vision, our products are exported to 130 countries and regions across Asia, Europe, Oceania, Africa, North and South America, achieving sustained and stable cooperation.
5) How to pack the products?
We use standard packaging. Special packaging requirements are available at additional cost.
