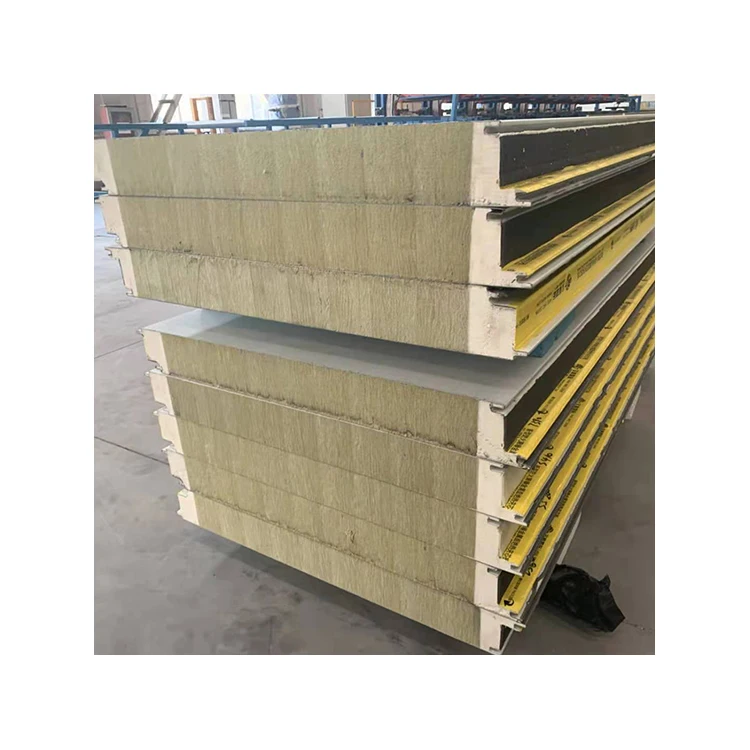

Heat Insulation Pu Sealing Rockwool Sandwich Panels 1000mm Width

  • Heat Insulation Pu Sealing Rockwool Sandwich Panels 1000mm Width
  • Heat Insulation Pu Sealing Rockwool Sandwich Panels 1000mm Width
Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Rockwool Sandwich Panel
Document Product Brochure PDF
Minimum Order Quantity 200-500 square meters
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Advantage Superior Fireproof-insulation Fire Proof Light Weight&Easy To Install Fireproof Innovative Technology Keyword Rockwool Sandwich Panel
Steel Thickness 0.4mm-0.8mm Thickness 50mm 75mm 80mm 100mm 125mm 150mm 200mm
Width 1000mm Product Name Heat Insulation PU Sealing Rockwool Sandwich Panels 1000mm Width
Waterproof Yes Type PU Sealing Rockwool Sandwich Panel
Highlight

heat insulation rockwool sandwich panel

,

rockwool sandwich panel 1000mm width

,

1000mm width mineral wool composite panels
Leave a Message
Product Description

Heat Insulation PU Sealing Rockwool Sandwich Panels 1000mm Width

Product Description:

Rockwool Sandwich Panel is a composite panel made of rockwool insulation core and two facing layers of metal materials. It is a type of insulated panel that features excellent fire resistance, sound insulation, and thermal insulation properties. The panel is available in widths of 1000mm with thicknesses of 50mm, 75mm, 80mm, 100mm, 125mm, 150mm and 200mm. The sealing type of the panel is PU type. It is widely used in wall building, warehouse roofing, and roofing wall applications. The panel is available in various colors, including RAL colors and customized colors.

Rockwool Composite Panels are an ideal solution for improving energy efficiency of a building. With the rockwool insulation core, it offers excellent fire resistance, sound insulation, and thermal insulation, providing superior energy efficiency and protection for building occupants. It is also lightweight and easy to install, making it a great choice for any construction project. Moreover, Rockwool Insulated Sandwich Board and Rockwool Insulated Panels are designed for long-term durability and low maintenance costs, making them an ideal choice for any building or renovation project.



Features:

  • Product Name:Rockwool Sandwich Panel
  • Color:RAL Color;Customized
  • Keyword:Rockwool Insulated Sandwich Board, Rockwool Composite Board, Rockwool Insulated Board
  • Thickness:50mm 75mm 80mm 100mm 125mm 150mm 200mm
  • Waterproof:Yes
  • Density:90-150kg/m3


Technical Parameters:

Technical parameters of BAODU new model fireproof sandwich panel
Allowable vertical load and thermal conductivity of BAODU new model fireproof rockwool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.75 15.53 L(m) 3.66 3.13 2.75 2.46 2.12
70 0.53 18.37 L(m) 4.90 4.22 3.73 3.35 2.91
100 0.41 21.21 L(m) 5.99 5.17 4.58 4.12 3.59
125 0.36 24.05 L(m) 6.91 5.96 5.28 4.79 4.14
150 0.31 26.88 L(m) 7.82 6.75 5.98 5.37 4.68
200 0.23 22.78 L(m) 9.65 8.33 7.38 6.62 5.77
Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.69 12.95 L(m) 3.74 3.23 2.86 2.57 2.23
70 0.47 14.50 L(m) 5.01 4.34 3.86 3.48 3.05
100 0.36 16.04 L(m) 6.21 5.32 4.73 4.28 3.75
125 0.34 17.06 L(m) 7.11 6.31 5.77 4.93 4.32
150 0.33 19.14 L(m) 8.00 6.94 6.18 5.58 4.89
200 0.30 22.78 L(m) 9.79 8.56 7.63 6.88 6.00



Applications:

Rockwool Sandwich Panel from BAODU is a great option for wall building, warehouse roofing, wall and roof. This insulated panel is made of rockwool, PU and color steel with a thickness range from 0.4mm to 0.8mm. The product has a modern design and comes in various RAL colors. It is CE certified and customers can choose from 200-500 square meters for a minimum order quantity. The pricing is reasonable and the delivery time is 15 days. Payment terms include L/C, D/A, D/P, T/T, Western Union and MoneyGram. The rockwool composite board can be packed in a steel frame to prevent breakage, and plastic packing is used for sandwich panel and color steel sheet. BAODU can supply up to 5000 square meters per day.



Customization:

Custom Rockwool Sandwich Panel by BAODU

Brand Name: BAODU
Model Number: Rockwool Sandwich Panel
Place of Origin: Hebei,China
Certification: CE
Minimum Order Quantity: 200-500 square meters
Price: Reasonable
Packaging Details: In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time: 15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Square Meters per Day
Keyword: Rockwool Sandwich Panel
After-sale Service: Online Technical Support, Onsite Installation
Length: Customized
Width: 1000mm
Product Name: PU Sealing Rockwool Sandwich Panel

Highlight Features:
  • Rockwool Composite Board
  • Rockwool Sandwich Panels
  • Rockwool Sandwich Panels with PU Sealing


Support and Services:

Technical Support and Service for Rockwool Sandwich Panel

At Rockwool, we offer comprehensive technical support and service for our Rockwool Sandwich Panel products. We have a team of experienced engineers who are available to provide you with the technical advice and assistance you need to ensure that your project runs smoothly and efficiently.

Our team can provide you with the necessary guidance and advice regarding the installation, maintenance and repair of Rockwool Sandwich Panel products. We can also help you select the most suitable product for your specific application, whether you need insulation, fire protection or acoustic insulation. Additionally, we can provide you with advice on how to optimize the performance of your Rockwool Sandwich Panel products for maximum efficiency.

If you have any questions or concerns about our Rockwool Sandwich Panel products, please do not hesitate to contact us. Our team of experts is always happy to answer any questions you may have. We look forward to helping you get the most out of your Rockwool Sandwich Panel products.



Packing and Shipping:

Rockwool Sandwich Panel Packaging and Shipping:

Heat Insulation Pu Sealing Rockwool Sandwich Panels 1000mm Width 0Heat Insulation Pu Sealing Rockwool Sandwich Panels 1000mm Width 1
