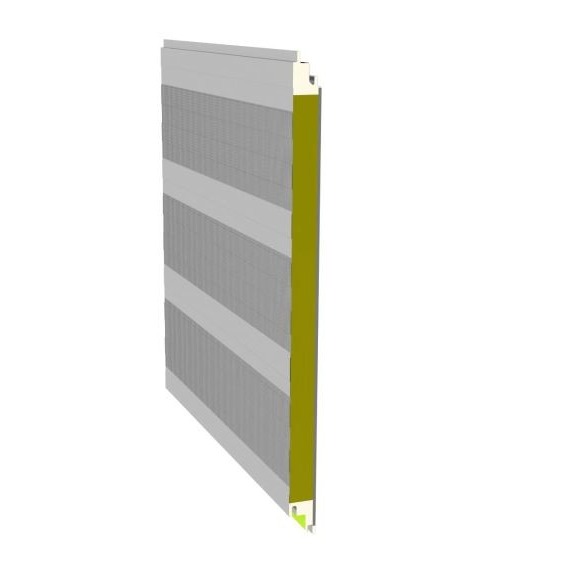

Polyurethane Edge Rock Wool Acoustic Panel Soundproof Customized For Warehouses

Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Acoustic Sandwich Panel
Document Product Brochure PDF
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Polyurethane Rockwool 60-200kg/M3 Density Acoustic Sandwich Panel With Online Technical Support Length Customized
OEM / ODM Available Material Rockwool Glasswool
MOQ 500 Square Meters Moisture Resistance Yes
Soundproof Yes Fireproof Grade A
Density 60-200kg/m3 Word Acoustic Sandwich Panel
Highlight

polyurethane edge rock wool acoustic panel

,

warehouses rock wool acoustic panel

,

warehouses soundproof sandwich panel

Leave a Message
Product Description

Polyurethane Rockwool 60-200kg/M3 Density Acoustic Sandwich Panel With Online Technical Support

Product Description:

Acoustic Sandwich Panel is a sound insulation panel which is perfect for soundproofing and insulation projects. It is made of two steel sheets of 0.4-0.8mm thickness filled with polyurethane foam in the middle, providing excellent soundproof and heat insulation performance. The fireproof grade of Acoustic Sandwich Panel is A, making it applicable to commercial buildings. The MOQ of Acoustic Sandwich Panel is 500 square meters, and it is a great choice for acoustic insulation projects.

Acoustic Sandwich Panel is a perfect sound insulation panel. It is made of two steel sheets of 0.4-0.8mm thickness filled with polyurethane foam in the middle, providing excellent soundproof and heat insulation performance. The fireproof grade of Acoustic Sandwich Panel is A, making it applicable to commercial buildings. It is an ideal choice for walls, ceilings, and other soundproofing projects. The MOQ of Acoustic Sandwich Panel is 500 square meters, making it a cost-effective choice for large-scale acoustic insulation projects.

Acoustic Sandwich Panel is a reliable and cost-effective choice for soundproofing and thermal insulation projects. It is made of two steel sheets of 0.4-0.8mm thickness filled with polyurethane foam in the middle, providing superior sound insulation and heat insulation performance. The fireproof grade of Acoustic Sandwich Panel is A, making it applicable to commercial buildings. The MOQ of Acoustic Sandwich Panel is 500 square meters, making it a great choice for large-scale acoustic insulation projects.



Features:

  • Product Name: Acoustic Sandwich Panel
  • Heat Insulation: Yes
  • Installation: Easy
  • OEM / ODM: Available
  • MOQ: 500 Square Meters
  • Thickness: 50mm 75mm 80mm 100mm 125mm 150mm 200mm
  • Product Definition: Sound Absorbing Panel, Acoustic Sandwich Panel, Sound Insulation Panel


Technical Parameters:

TESTING DATA OF BAODU ACOUSTICAL SANDWICH PANEL
No.

REPORT

ID

TESTING ORGANIZATION

PRODUCT

NAME

MATERIAL STRUCTURE

(BOTTOM-TO-TOP)

TOTAL THICKNESS

(MM)

METAL THICKNESS

(MM)

ROCKWOOL/

GLASSWOOL DENSITY

(KG/m³)

CEMENT THICKNESS

(MM)

DAMPING THICKNESS

(MM)

SOUND ABSORBING DATA

(NRC)

SOUND INSULATION

(Db)

TESTING STANDARD: GB/T 19889.3-2005/ISO140-3:1995 Acoustics - Measurement of sound insulation in buildings and building elements - Part 3: Laboratory measurement of airborne sound insulation of building elements;
1 KS-2021-09101

ACOUSTICAL MEASURING& TESTING STATION, CHINESE ACADEMY OF SCIENCE








SOUND

INSULATION






STEEL PLATE

+CEMENT BOARD+ROCKWOOL

+STEEL PLATE

100 0.6/0.5 120 10 / / 38
2 KS-2021-09102

STEEL PLATE

+DAMPING+ROCKWOOL

+STEEL PLATE

100 0.6/0.5 120 / 3 / 37
3 KS-2021-09103

STEEL PLATE

+CEMENT BOARD+DAMPING

+ROCKWOOL

+STEEL PLATE

100 0.5/0.5 120 10 3 / 39
4 KS-2021-09104

STEEL PLATE

+DAMPING+CEMENT BOARD

+ROCKWOOL

+STEEL PLATE

100 0.5/0.5 120 10 3 / 41
5 KS-2021-09105

STEEL PLATE

+DAMPING+ROCKWOOL

+DAMPING

+STEEL PLATE

100 0.5/0.5 120 / 3 / 37
6 KS-2021-09106

STEEL PLATE

+CEMENT+ROCKWOOL

+DAMPING

+STEEL PLATE

100 0.5/0.5 120 4 3 // 37
7 KS-2021-09107

STEEL PLATE

+DAMPING+CEMENT BOARD +ROCKWOOL+ DAMPING

+STEEL PLATE

100 0.5/0.5 120 4 2 / 38
8 KS-2021-09108

STEEL PLATE

+CEMENT BOARD

+DAMPING+ROCKWOOL +DAMPIGN+STEEL PLATE

100 0.5/0.5 120 4 2 / 38
9 KS-2021-09109

STAINLESS STEEL PLATE

+ROCKWOOL

+STAINLESS STEEL PLATE

100 0.5/0.5 120 / / / 34
10 KS-2021-09110

STAINLESS STEEL PLATE

+ROCKWOO

L+STAINLESS STEEL PLATE

50 0.5/0.5 120 / / / 33
11 KS-2021-09111

STEEL PLATE

+ROCKWOOL

+STEEL PLATE

100 0.6/0.6 120 / / / 35
TESTING STANDARD: GB/T20247-2006/iso 354:2003 Acoustics reverberation room sound absorption measurement
12 KS-2021-09112 ACOUSTICAL MEASURING& TESTING STATION, CHINESE ACADEMY OF SCIENCE

SOUND

ABSORPTION

PERFORATED ALU PLATE

+GLASS FIBRE+GLASSWOOL

+STEEL PLATE

80 0.6/0.6 64 / / 0.95 /
TESTING STANDARD:
1.: GB/T20247-2006/iso 354:2003 Acoustics reverberation room sound absorption measurement;
2. GB/T 19889.3-2005/ISO140-3:1995 Acoustics - Measurement of sound insulation in buildings and building elements - Part 3: Laboratory measurement of airborne sound insulation of building elements;


Applications:

BAODU Acoustic Sandwich Panel is an ideal sound absorption and insulation panel for warehouse, building and other equipments thermal protection. It is of modern design style and comes in different colors, such as RAL and customized colors. This panel is certified with CE and absolutely reliable. The minimum order quantity is negotiable, and the price is reasonable. We provide special packing services according to clients' requirements, and delivery time is 15 days. The payment terms are L/C, D/A, D/P, T/T, Western Union, MoneyGram. We can provide up to 5000 square meters per day. OEM and ODM services are available for this product.

As a sound absorbing panel, BAODU Acoustic Sandwich Panel can effectively reduce noise, provide acoustic insulation and sound absorption, and make the environment more comfortable. As a sound insulation panel, it can effectively maintain the sound insulation effect indoors and outdoors, and it also has good fireproof and flame retardant properties. This Acoustic Sandwich Panel has excellent thermal insulation properties, which can reduce the loss of energy and make the environment more energy-saving.

Support and Services:

Acoustic Sandwich Panel Technical Support and Service

We offer comprehensive technical support and services for our Acoustic Sandwich Panel product. Our team of experts are available to provide you with advice and guidance on installation, performance, maintenance and more.

For installation, our team can provide detailed instructions for assembling the panel and ensuring it is correctly fitted. We can also offer advice on how to best use the panel for maximum acoustic performance.

For performance, we can provide guidance on what kind of acoustic isolation the panel can provide, as well as assist with troubleshooting any issues you may have.

For maintenance, we can provide advice on how to care for the panel, as well as what to do if any parts need to be replaced. We can also provide guidance on how to clean and store the panel.

At any time, you can contact our team for technical advice, guidance, or even just a second opinion. We are here to help you get the most out of your Acoustic Sandwich Panel.



Packing and Shipping:

Packaging and Shipping for Acoustic Sandwich Panel

Polyurethane Edge Rock Wool Acoustic Panel Soundproof Customized For Warehouses 0Polyurethane Edge Rock Wool Acoustic Panel Soundproof Customized For Warehouses 1

FAQ:

FAQs about Acoustic Sandwich Panel
Q1: What is the Brand Name of Acoustic Sandwich Panel?

A1: The Brand Name of Acoustic Sandwich Panel is BAODU.

Q2: What is the Model Number of Acoustic Sandwich Panel?

A2: The Model Number of Acoustic Sandwich Panel is Acoustic Sandwich Panel.

Q3: Where is the Place of Origin of Acoustic Sandwich Panel?

A3: The Place of Origin of Acoustic Sandwich Panel is Hebei, China.

Q4: What is the Certification of Acoustic Sandwich Panel?

A4: The Certification of Acoustic Sandwich Panel is CE.

Q5: What is the Minimum Order Quantity of Acoustic Sandwich Panel?

A5: The Minimum Order Quantity of Acoustic Sandwich Panel is Discussible.
