Cold Insulation Moisture Proof Polyurethane Sandwich Panel For Warehouse Roof Wall

  • Cold Insulation Moisture Proof Polyurethane Sandwich Panel For Warehouse Roof Wall
  • Cold Insulation Moisture Proof Polyurethane Sandwich Panel For Warehouse Roof Wall
  • Cold Insulation Moisture Proof Polyurethane Sandwich Panel For Warehouse Roof Wall
Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Polyurethane Sandwich Panel
Document Product Brochure PDF
Minimum Order Quantity Discussible
Price $10-12square meter
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Cold Insulation PU Sandwich Panel For Roof Wall Moistureproof Polyurethane Warehouse After-sale Service Online Technical Support
Design Style Modern Type Polyurethane Sandwich Panel
Color RAL Color;Customized Steel Thinckness 0.4mm-0.8mm
Material Polyurethane Width 1000mm
Highlight

cold insulation polyurethane sandwich panel

,

moisture proof polyurethane sandwich panel

,

warehouse roof wall pu sandwich panel
Leave a Message
Product Description

Cold Insulation PU Sandwich Panel For Roof Wall Moistureproof Polyurethane Warehouse

Product Description:

A PU sandwich panel is a particularly desirable material for industrial and commercial projects. Its poor heat conductivity allows a building's framework to be made thinner. This lower thermal conductivity can save money and energy. By keeping a building cool during the summer and cold during the winter, the PU sandwich panel can help to reduce energy bills. This material is an excellent choice for buildings that need to be resistant to rust.

Technical Parameters:

Allowable vertical load and thermal performance of BAODU polyurethane sandwich wall
panel (allowable deflection f≤L/200)
S(mm) W/m2k G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.31 10.06 L(m) 3.52 3.04 2.69 2.42 2.11
75 0.21 11.06 L(m) 4.71 4.09 3.64 3.29 2.89
100 0.19 12.05 L(m) 5.76 5.02 4.47 4.05 3.56
120 0.16 12.84 L(m) 6.53 5.68 5.07 4.60 4.04
150 0.11 14.04 L(m) 7.56 6.58 5.87 5.32 4.68
Note:0.5mm outer steel sheet and 0.4mm inner steel
Allowable Span and Thermal Conductivity of BAODU Polyurethane Roof Sandwich
Panel(allowable deformation f≤L/240)
S(mm) W/m2k G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
30 0.32 9.32 L(m) 2.60 2.30 2.08 1.91 1.72
50 0.31 10.15 L(m) 3.59 3.17 2.85 2.61 2.33
75 0.21 11.18 L(m) 4.64 4.07 3.66 3.34 2.96
100 0.19 12.22 L(m) 5.57 4.88 4.38 3.99 3.53
120 0.16 13.05 L(m) 6.28 5.49 4.92 4.48 3.97
150 0.11 14.3 L(m) 7.30 6.39 5.73 5.22 4.62
Note:0.5mm outer steel sheet and 0.4mm inner steel


Applications:

Polyurethane sandwich panels have the advantages of efficient heat preservation, fire protection, long service life, beautiful atmosphere, easy installation, etc.



They are widely used in cold storage, fresh-keeping rooms, various purification rooms, air conditioning rooms, steel structure workshops, fire protection workshops, warehouses, prefabricated houses, chicken houses, farm buildings, etc

Support and Services:

Polyurethane Sandwich Panel technical support and services include:

  • Installation and maintenance instructions
  • Regular technical inspections
  • Replacement of any damaged parts
  • Troubleshooting any operational problems
  • On-site technical support

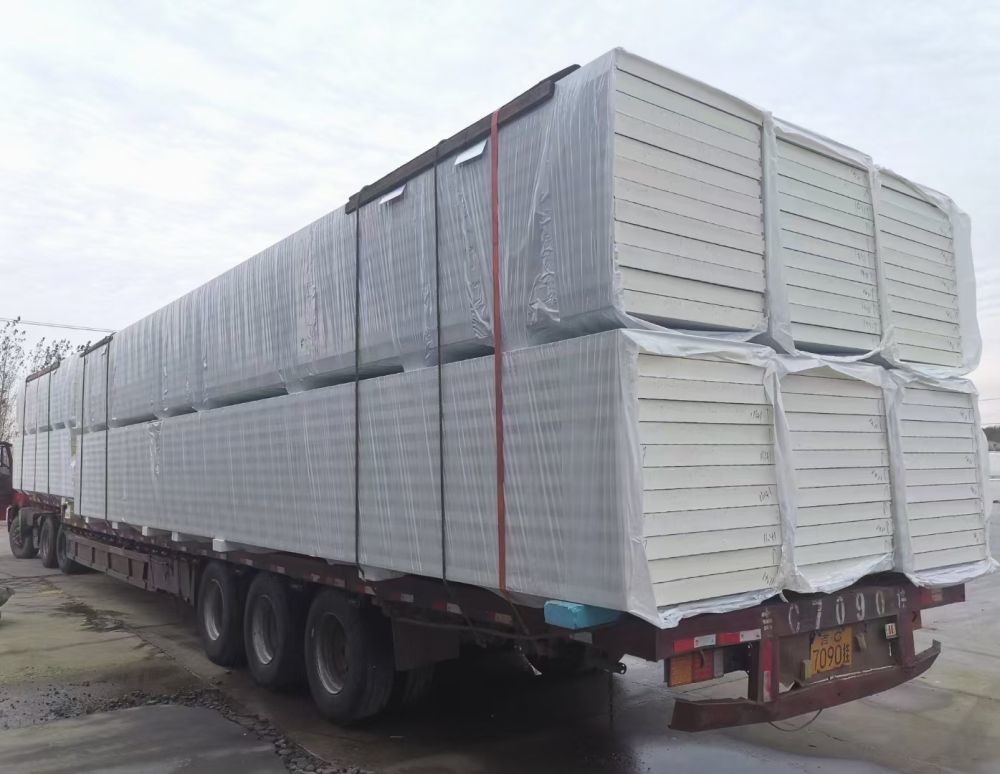

Packing and Shipping:

Cold Insulation Moisture Proof Polyurethane Sandwich Panel For Warehouse Roof Wall 0Cold Insulation Moisture Proof Polyurethane Sandwich Panel For Warehouse Roof Wall 1
