Waterproof Fireproof Insulation Sandwich Panel Rockwool 75mm Thickness

  • Waterproof Fireproof Insulation Sandwich Panel Rockwool 75mm Thickness
  • Waterproof Fireproof Insulation Sandwich Panel Rockwool 75mm Thickness
Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Rockwool Sandwich Panel
Document Product Brochure PDF
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Waterproof Rockwool Sandwich Panel Superior Fireproof-Insulation Easy To Install Innovative Design Style Modern
Length Customized MOQ 300-500 Square Meters
Certificate CE Type Rockwool Sandwich Panel With PU Edge
Advantage Superior Fireproof-insulation Fire Proof Light Weight&Easy To Install Fireproof Innovative Technology Waterproof Yes
Application Wall Building Warehouse Roofing Wall And Roof Keyword Waterproof Rockwool Sandwich Panel
Highlight

75mm thickness rockwool sandwich panel

,

waterproof sandwich panel rockwool

,

75mm thickness sandwich panel rockwool
Leave a Message
Product Description

Waterproof Rockwool Sandwich Panel Superior Fireproof-Insulation Easy To Install Innovative

Product Description:

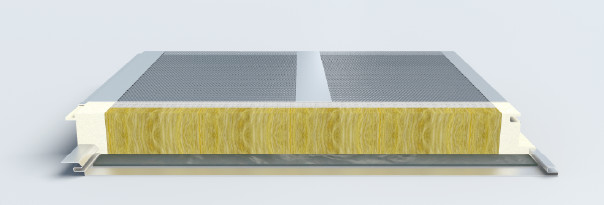

Rockwool Sandwich Panel is a type of modern composite panel made of a core material of rockwool board, which has a width of 1000mm and is applicable for wall building, warehouse roofing, wall and roof insulation. Rockwool Composite Board is characterized by its heat insulation, airtightness, fireproof, and weather proof properties, making it an ideal material for modern construction. Rockwool Composite Panel is also highly durable and soundproof, providing superior sound insulation. Additionally, the Rockwool Insulated Sandwich Board is lightweight, easy to install and maintain, and can be cut into any size or shape. Rockwool Composite Panels are highly cost-effective and environmentally friendly.

Features:

  • Product Name: Rockwool Sandwich Panel
  • Length: Customized
  • Density: 100kg/m3
  • Soundproof: Yes
  • Heat-insulation: Yes
  • Application: Wall Building, Warehouse Roofing, Wall And Roof
  • Keywords: Rockwool Composite Board, Rockwool Composite Panels, Rockwool Composite Panels for Wall Building, Rockwool Sandwich Panels

Technical Parameters:

Technical parameters of BAODU new model fireproof sandwich panel
Allowable vertical load and thermal conductivity of BAODU new model fireproof rockwool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.75 15.53 L(m) 3.66 3.13 2.75 2.46 2.12
70 0.53 18.37 L(m) 4.90 4.22 3.73 3.35 2.91
100 0.41 21.21 L(m) 5.99 5.17 4.58 4.12 3.59
125 0.36 24.05 L(m) 6.91 5.96 5.28 4.79 4.14
150 0.31 26.88 L(m) 7.82 6.75 5.98 5.37 4.68
200 0.23 22.78 L(m) 9.65 8.33 7.38 6.62 5.77
Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.69 12.95 L(m) 3.74 3.23 2.86 2.57 2.23
70 0.47 14.50 L(m) 5.01 4.34 3.86 3.48 3.05
100 0.36 16.04 L(m) 6.21 5.32 4.73 4.28 3.75
125 0.34 17.06 L(m) 7.11 6.31 5.77 4.93 4.32
150 0.33 19.14 L(m) 8.00 6.94 6.18 5.58 4.89
200 0.30 22.78 L(m) 9.79 8.56 7.63 6.88 6.00


Applications:

The BAODU Rockwool Sandwich Panel is a composite board made of rockwool, PU, and color steel. It is certified by CE and manufactured in Hebei, China. This modern designed panel is 0.4mm-0.8mm in steel thickness and has a density of 100kg/m3. It is also a heat-insulation panel. The minimum order quantity is discussible and the price is reasonable. The packaging includes steel frame packing for steel structure, and plastic packing for sandwich panel and color steel sheet. Special packing is also available upon request. The delivery time is 15 days and the payment terms include L/C, D/A, D/P, T/T, Western Union, and Moneygram. The supply ability is 5000 square meters per day.



Packing:



Waterproof Fireproof Insulation Sandwich Panel Rockwool 75mm Thickness 0Waterproof Fireproof Insulation Sandwich Panel Rockwool 75mm Thickness 1

Rockwool Sandwich Panel Packaging and Shipping:

  • The panels will be covered in plastic wrapping to protect them from dirt and moisture.
  • The panels will be packaged in steel boxes or on pallets.
  • The packages will be labeled with information about the product, such as the panel size and quantity.
  • The packages will be shipped via a reputable shipping company.
