Polyurethane Rockwool Sandwich Panel 150mm For Walls And Roofs Heat Insulating Exterior

Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Rockwool Sandwich Panel
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Polyurethane Rockwool Composite Sandwich Panels For Walls And Roofs Heat-Insulating Exterior Type Rockwool Sandwich Panel With PU Edge
Advantage Superior Fireproof-insulation Fire Proof Light Weight&Easy To Install Fireproof Innovative Technology Soundproof Yes
Application Wall Building Warehouse Roofing Wall And Roof Length Customized
Certificate CE Material Rockwool,PU,Color Steel
Thickness 50mm 75mm 80mm 100mm 125mm 150mm 200mm Keyword Polyurethane Rockwool Composite Sandwich Panels
High Light

polyurethane rockwool sandwich panel

,

rockwool sandwich panel 150mm

,

polyurethane sandwich panel rockwool

Leave a Message
Product Description

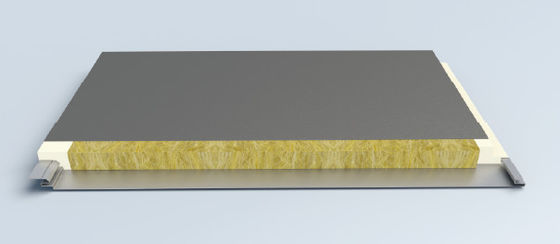

Polyurethane Rockwool Composite Sandwich Panels For Walls And Roofs Heat-Insulating Exterior

Product Description:

Rockwool Sandwich Panel is a kind of composite board made of rockwool and PU, which is an ideal construction material for insulation and soundproof purpose. It is designed with a customized length to meet various needs, and the width is 1000mm. The color steel skin is tough and durable, perfect for construction insulation, shop outdoor office, etc. The rockwool insulated sandwich board provides excellent soundproof and thermal insulation performance for superior protection.

Features:

Product Rock Wool Sandwich Panel Rock Wool Sandwich Panel with Pur or Pir Edge
Width 1000mm 1000mm
Top plate/Bottom 0.4-1mm 0.4-1mm
Core thickness 50mm,75mm,100mm,120mm,150mm,200mm 50mm,75mm,100mm,120mm,150mm,200mm
Length Less than 11.8m (For transport need) Less than 11.8m (For transport need)
Density 100-180kg/m3 100-180kg/m3
Color White, Red, Blue,Customized White, Red, Blue,Customized
Connection Way Hidden Hidden
Sound insulation 20-25db 20-25db
Application various walls of large size factory warehouse, exhibition halls,gymnasiums various walls of large size factory warehouse,exhibition halls, gymnasiums

Technical Parameters:

Technical parameters of BAODU new model fireproof sandwich panel
Allowable vertical load and thermal conductivity of BAODU new model fireproof rockwool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.75 15.53 L(m) 3.66 3.13 2.75 2.46 2.12
70 0.53 18.37 L(m) 4.90 4.22 3.73 3.35 2.91
100 0.41 21.21 L(m) 5.99 5.17 4.58 4.12 3.59
125 0.36 24.05 L(m) 6.91 5.96 5.28 4.79 4.14
150 0.31 26.88 L(m) 7.82 6.75 5.98 5.37 4.68
200 0.23 22.78 L(m) 9.65 8.33 7.38 6.62 5.77
Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.69 12.95 L(m) 3.74 3.23 2.86 2.57 2.23
70 0.47 14.50 L(m) 5.01 4.34 3.86 3.48 3.05
100 0.36 16.04 L(m) 6.21 5.32 4.73 4.28 3.75
125 0.34 17.06 L(m) 7.11 6.31 5.77 4.93 4.32
150 0.33 19.14 L(m) 8.00 6.94 6.18 5.58 4.89
200 0.30 22.78 L(m) 9.79 8.56 7.63 6.88 6.00


Applications:

BAODU Rockwool Insulated Sandwich Board is the ideal solution for Wall Building, Warehouse Roofing, and Wall and Roof applications. Our Rockwool Sandwich Panels are made from quality Rockwool Insulated Board, offering superior thermal insulation and fire resistance. With our Rockwool Insulated Board, you can enjoy benefits such as improved energy efficiency, lower energy costs, and a healthier indoor environment. With a thickness of 50mm, 75mm, 80mm, 100mm, 125mm, 150mm, and 200mm, and a density of 100kg/m3, our Rockwool Sandwich Panels are available in a variety of RAL colors and can be customized to meet your specific needs. With a minimum order quantity of discussed, and a reasonable price, you can rest assured that you are getting the best value for your money. BAODU Rockwool Insulated Sandwich Board is the perfect solution for your Wall Building, Warehouse Roofing, and Wall and Roof applications.

Our Rockwool Insulated Sandwich Board can be delivered within 15 days and payment terms include L/C, D/A, D/P, T/T, Western Union, and MoneyGram. We have a supply capacity of 5000 Square Meters per Day, so you can trust us to meet your needs. At BAODU, we strive to provide the highest quality Rockwool Insulated Sandwich Board at the most reasonable prices.

Support and Services:

Rockwool Sandwich Panel Technical Support and Service

Rockwool Sandwich Panel is a highly specialized product and requires technical support and service to ensure proper installation and use. We provide a comprehensive range of services to support our customer's needs, including:

  • Technical advice on product selection, installation and use.
  • Onsite installation assistance.
  • Technical support for problem solving.
  • Site visits to ensure correct installation is being carried out.
  • Post-installation support and maintenance.
  • Regular maintenance and service checks.

Our team of experienced professionals is always available to provide technical support and service for Rockwool Sandwich Panel. Contact us today to discuss your project and find out how we can help you.
