Construction Building Thermal Insulation Acoustic Sandwich Panel Pre Painted Surface High Soundproof

Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Acoustic Sandwich Panel
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Thickness 50mm 75mm 80mm 100mm 125mm 150mm 200mm Moisture Resistance Yes
Keyword Acoustic Sandwich Panel Surface Prepainted
OEM / ODM Available Application Warehouse, Building And Other Equipments Thermal
Function Thermal Insulation And Sound Insulation Heat Insulation Yes
High Light

pre painted surface acoustic sandwich panel

,

building thermal insulation acoustic sandwich panel

,

pre painted surface soundproof sandwich panel

Leave a Message
Product Description



Sound Insulation Panel for Construction Building Thermal Insulation Pre-painted Surface High Soundproof

Product Description:

Acoustic Sandwich Panel is a sound absorbing panel designed for modern buildings. It is highly durable and can be customized to match the desired color of the building. It is easy to install and can come in a variety of thicknesses, such as 50mm, 75mm, 80mm, 100mm, 125mm, 150mm, and 200mm. Most importantly, it provides excellent sound insulation, making it an excellent choice for soundproofing and sound absorption.

Using Acoustic Sandwich Panel is a great way to enhance the sound quality of any space. Its modern design and sound absorbing properties make it an ideal solution for home theaters, recording studios, and other sound-sensitive areas. It is also a great choice for walls and ceilings. With its high durability, it is suitable for both residential and commercial use.

Acoustic Sandwich Panel is an excellent sound insulation panel for modern buildings. It not only provides excellent sound absorption, but also offers a modern look that will enhance the aesthetics of any environment. With its easy installation, customized colors, and wide range of thicknesses, it is a great choice for any sound-sensitive area.

Features:

  • Product Name: Acoustic Sandwich Panel
  • Design Style: Modern
  • Keyword: Acoustic Sandwich Panel
  • Thickness: 50mm 75mm 80mm 100mm 125mm 150mm 200mm
  • Application: Warehouse, Building And Other Equipments Thermal
  • Material: Rockwool Glasswool
  • Special Feature: Sound Insulation Panel

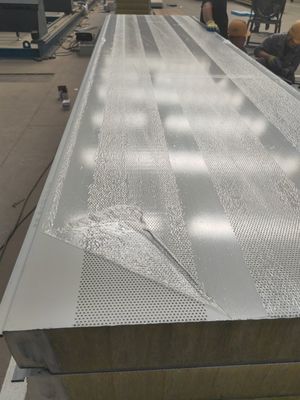

Plain or Striped sheet surface

 • Plate surface is painted galvanized sheet, inner surface is perforated painted galvanized sheet

 • Both horizontal and vertical applicability

 • Joint detail that hides the screwing system

 • Sound insulation and acoustic improvement

Technical Parameters:



TESTING DATA OF BAODU ACOUSTICAL SANDWICH PANEL
No.

REPORT

ID

TESTING ORGANIZATION

PRODUCT

NAME

MATERIAL STRUCTURE

(BOTTOM-TO-TOP)

TOTAL THICKNESS

(MM)

METAL THICKNESS

(MM)

ROCKWOOL/

GLASSWOOL DENSITY

(KG/m³)

CEMENT THICKNESS

(MM)

DAMPING THICKNESS

(MM)

SOUND ABSORBING DATA

(NRC)

SOUND INSULATION

(Db)

TESTING STANDARD: GB/T 19889.3-2005/ISO140-3:1995 Acoustics - Measurement of sound insulation in buildings and building elements - Part 3: Laboratory measurement of airborne sound insulation of building elements;
1 KS-2021-09101

ACOUSTICAL MEASURING& TESTING STATION, CHINESE ACADEMY OF SCIENCE








SOUND

INSULATION






STEEL PLATE

+CEMENT BOARD+ROCKWOOL

+STEEL PLATE

100 0.6/0.5 120 10 / / 38
2 KS-2021-09102

STEEL PLATE

+DAMPING+ROCKWOOL

+STEEL PLATE

100 0.6/0.5 120 / 3 / 37
3 KS-2021-09103

STEEL PLATE

+CEMENT BOARD+DAMPING

+ROCKWOOL

+STEEL PLATE

100 0.5/0.5 120 10 3 / 39
4 KS-2021-09104

STEEL PLATE

+DAMPING+CEMENT BOARD

+ROCKWOOL

+STEEL PLATE

100 0.5/0.5 120 10 3 / 41
5 KS-2021-09105

STEEL PLATE

+DAMPING+ROCKWOOL

+DAMPING

+STEEL PLATE

100 0.5/0.5 120 / 3 / 37
6 KS-2021-09106

STEEL PLATE

+CEMENT+ROCKWOOL

+DAMPING

+STEEL PLATE

100 0.5/0.5 120 4 3 // 37
7 KS-2021-09107

STEEL PLATE

+DAMPING+CEMENT BOARD +ROCKWOOL+ DAMPING

+STEEL PLATE

100 0.5/0.5 120 4 2 / 38
8 KS-2021-09108

STEEL PLATE

+CEMENT BOARD

+DAMPING+ROCKWOOL +DAMPIGN+STEEL PLATE

100 0.5/0.5 120 4 2 / 38
9 KS-2021-09109

STAINLESS STEEL PLATE

+ROCKWOOL

+STAINLESS STEEL PLATE

100 0.5/0.5 120 / / / 34
10 KS-2021-09110

STAINLESS STEEL PLATE

+ROCKWOO

L+STAINLESS STEEL PLATE

50 0.5/0.5 120 / / / 33
11 KS-2021-09111

STEEL PLATE

+ROCKWOOL

+STEEL PLATE

100 0.6/0.6 120 / / / 35
TESTING STANDARD: GB/T20247-2006/iso 354:2003 Acoustics reverberation room sound absorption measurement
12 KS-2021-09112 ACOUSTICAL MEASURING& TESTING STATION, CHINESE ACADEMY OF SCIENCE

SOUND

ABSORPTION

PERFORATED ALU PLATE

+GLASS FIBRE+GLASSWOOL

+STEEL PLATE

80 0.6/0.6 64 / / 0.95 /
TESTING STANDARD:
1.: GB/T20247-2006/iso 354:2003 Acoustics reverberation room sound absorption measurement;
2. GB/T 19889.3-2005/ISO140-3:1995 Acoustics - Measurement of sound insulation in buildings and building elements - Part 3: Laboratory measurement of airborne sound insulation of building elements;

Applications:

BAODU Acoustic Sandwich Panel – High Durability & Sound Insulation

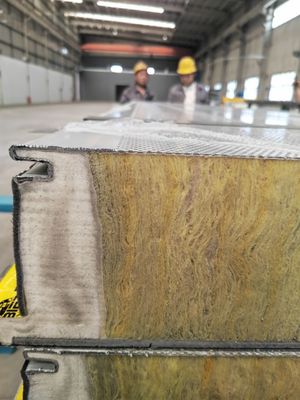

BAODU Acoustic Sandwich Panel is an ideal choice for sound insulation and high durability. It is made of two layers of prepainted steel with an insulation core in between, and is certified by CE. The steel thickness ranges from 0.4-0.8mm and the length is customizable. It is also available for OEM and ODM orders.

The minimum order quantity is discussible, and the price is reasonable. The general packing for steel structure is steel frame packing to keep the goods from being damaged. For sandwich panel and color steel sheet, plastic packing is applied. Special packing can be provided according to customer requirements.

Customization:

BAODU Acoustic Sandwich Panel

Brand Name: BAODU
Model Number: Acoustic Sandwich Panel
Place of Origin: Hebei,China
Certification: CE
Minimum Order Quantity: Discussible
Packaging Details: In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time: 15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Square Meters per Day
Durability: High
Soundproof: Yes
Length: Customized
Thickness: 50mm 75mm 80mm 100mm 125mm 150mm 200mm
Keyword: Acoustic Sandwich Panel, Sound Insulation Panel, Sound Insulation Panel

Support and Services:

Acoustic Sandwich Panel Technical Support and Service

We are committed to providing our customers with the highest levels of service and support for our Acoustic Sandwich Panel products.

Our service and support includes:

  • On-site technical support
  • Online technical support
  • Product installation and setup
  • Product maintenance and repair
  • Troubleshooting
  • Product upgrades

We take pride in providing our customers with the best possible service and support. If you have any questions or concerns, please don’t hesitate to contact us.

Packing and Shipping:

Acoustic Sandwich Panel Packaging and Shipping:

The acoustic sandwich panel is securely packaged in an appropriate steel box and then shipped with a reliable transport service.

The package is designed to provide maximum protection for the product during transport and is also labelled with the product's details for easy identification.

The acoustic sandwich panel is shipped with a tracking number which allows customers to track the location of their product online.



FAQ:

Q1: What is Acoustic Sandwich Panel?
A1: Acoustic Sandwich Panel is a kind of building material made of polyurethane foam core with color steel sheet on both sides. It is manufactured by BAODU with model number "Acoustic Sandwich Panel" and CE certification.
Q2: What is the minimum order quantity?
A2: The minimum order quantity is discussible.
Q3: Where do you produce Acoustic Sandwich Panel?
A3: Acoustic Sandwich Panel is produced in Hebei, China.
Q4: What is the price of Acoustic Sandwich Panel?
A4: The price of Acoustic Sandwich Panel is reasonable.
Q5: What are the delivery and payment terms?
A5: The delivery time is 15 days and the payment terms are L/C, D/A, D/P, T/T, Western Union, MoneyGram.
