Soundproof Acoustic Sandwich Panel Rockwool Glass Wool Sound Absorbing Thickness 80mm

Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Acoustic Sandwich Panel
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Soundproof Rockwool Glasswool Sound Absorbing Panel Thickness 50mm 75mm80mm 100mm 125mm 150mm 200mm Moisture Resistance Yes
Installation Easy Fireproof Grade A
Steel Thickness 0.4-0.8mm Length Customized
Color RAL;Customized Material Rockwool Glasswool
Density 60-200kg/m3 Keyword Acoustic Sandwich Panel
High Light

moisture resistance acoustic sandwich panel

,

thickness 80mm acoustic sandwich panel

,

thickness 80mm soundproof sandwich panel

Leave a Message
Product Description

Soundproof Rockwool Glasswool Sound Absorbing Panel Thickness 50mm 75mm80mm 100mm 125mm 150mm 200mm

Product Description:

Acoustic Sandwich Panel is a sound insulation panel specially designed to provide superior sound insulation performance. It is made of two layers of high-performance material with an inner core of acoustic foam that provides excellent acoustic insulation. The outer layers provide excellent fireproof grade of A, effectively preventing fire disasters. It also has excellent heat insulation performance, which can effectively reduce the loss of heat energy. The thickness of the panel is available in 50mm, 75mm, 80mm, 100mm, 125mm, 150mm and 200mm, and it also comes in various colors like RAL or customized colors according to customer requirements. Installation is easy and straightforward, making it an ideal sound insulation solution for any environment.



Features:



Plain or Striped sheet surface

• Plate surface is painted galvanized sheet, inner surface is perforated painted galvanized sheet

• Both horizontal and vertical applicability

• Joint detail that hides the screwing system

• Sound insulation and acoustic improvement

Technical Parameters:



TESTING DATA OF BAODU ACOUSTICAL SANDWICH PANEL
No.

REPORT

ID

TESTING ORGANIZATION

PRODUCT

NAME

MATERIAL STRUCTURE

(BOTTOM-TO-TOP)

TOTAL THICKNESS

(MM)

METAL THICKNESS

(MM)

ROCKWOOL/

GLASSWOOL DENSITY

(KG/m³)

CEMENT THICKNESS

(MM)

DAMPING THICKNESS

(MM)

SOUND ABSORBING DATA

(NRC)

SOUND INSULATION

(Db)

TESTING STANDARD: GB/T 19889.3-2005/ISO140-3:1995 Acoustics - Measurement of sound insulation in buildings and building elements - Part 3: Laboratory measurement of airborne sound insulation of building elements;
1 KS-2021-09101

ACOUSTICAL MEASURING& TESTING STATION, CHINESE ACADEMY OF SCIENCE








SOUND

INSULATION






STEEL PLATE

+CEMENT BOARD+ROCKWOOL

+STEEL PLATE

100 0.6/0.5 120 10 / / 38
2 KS-2021-09102

STEEL PLATE

+DAMPING+ROCKWOOL

+STEEL PLATE

100 0.6/0.5 120 / 3 / 37
3 KS-2021-09103

STEEL PLATE

+CEMENT BOARD+DAMPING

+ROCKWOOL

+STEEL PLATE

100 0.5/0.5 120 10 3 / 39
4 KS-2021-09104

STEEL PLATE

+DAMPING+CEMENT BOARD

+ROCKWOOL

+STEEL PLATE

100 0.5/0.5 120 10 3 / 41
5 KS-2021-09105

STEEL PLATE

+DAMPING+ROCKWOOL

+DAMPING

+STEEL PLATE

100 0.5/0.5 120 / 3 / 37
6 KS-2021-09106

STEEL PLATE

+CEMENT+ROCKWOOL

+DAMPING

+STEEL PLATE

100 0.5/0.5 120 4 3 // 37
7 KS-2021-09107

STEEL PLATE

+DAMPING+CEMENT BOARD +ROCKWOOL+ DAMPING

+STEEL PLATE

100 0.5/0.5 120 4 2 / 38
8 KS-2021-09108

STEEL PLATE

+CEMENT BOARD

+DAMPING+ROCKWOOL +DAMPIGN+STEEL PLATE

100 0.5/0.5 120 4 2 / 38
9 KS-2021-09109

STAINLESS STEEL PLATE

+ROCKWOOL

+STAINLESS STEEL PLATE

100 0.5/0.5 120 / / / 34
10 KS-2021-09110

STAINLESS STEEL PLATE

+ROCKWOO

L+STAINLESS STEEL PLATE

50 0.5/0.5 120 / / / 33
11 KS-2021-09111

STEEL PLATE

+ROCKWOOL

+STEEL PLATE

100 0.6/0.6 120 / / / 35
TESTING STANDARD: GB/T20247-2006/iso 354:2003 Acoustics reverberation room sound absorption measurement
12 KS-2021-09112 ACOUSTICAL MEASURING& TESTING STATION, CHINESE ACADEMY OF SCIENCE

SOUND

ABSORPTION

PERFORATED ALU PLATE

+GLASS FIBRE+GLASSWOOL

+STEEL PLATE

80 0.6/0.6 64 / / 0.95 /
TESTING STANDARD:
1.: GB/T20247-2006/iso 354:2003 Acoustics reverberation room sound absorption measurement;
2. GB/T 19889.3-2005/ISO140-3:1995 Acoustics - Measurement of sound insulation in buildings and building elements - Part 3: Laboratory measurement of airborne sound insulation of building elements;

Applications:

BAODU Acoustic Sandwich Panel is a perfect choice for sound absorption and insulation in construction, building and other equipments. This panel is made of Rockwool and Glasswool material with steel thickness of 0.4-0.8mm. It can be used for thermal insulation and sound insulation. It is highly durable and is being manufactured by BAODU, Hebei, China.

1.Industrial Facilities

2.Commercial Building

3.Social Construct

4.Power Plants

Support and Services:

Acoustic Sandwich Panel Technical Support and Service

At Acoustic Sandwich Panel, we are dedicated to providing high-quality technical support and service for our products. Our team of highly experienced professionals is available to help you with any questions or issues you may have.

We offer a variety of support services, including:

  • 24/7 technical support
  • Product troubleshooting
  • Online product tutorials
  • Product updates and upgrades
  • Software and hardware installation and maintenance
  • Warranty and repair services

If you have any questions or need assistance, please don't hesitate to contact us. Our team is here to help you get the most out of your Acoustic Sandwich Panel product.

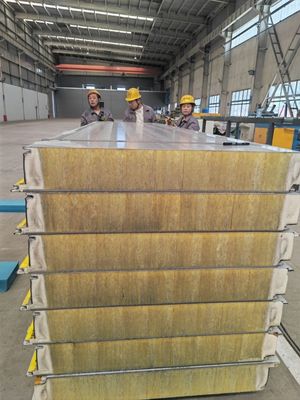

Packing and Shipping:

Soundproof Acoustic Sandwich Panel Rockwool Glass Wool Sound Absorbing Thickness 80mm 0Soundproof Acoustic Sandwich Panel Rockwool Glass Wool Sound Absorbing Thickness 80mm 1

FAQ:

Q1: What is Acoustic Sandwich Panel?

A1: Acoustic Sandwich Panel is a kind of acoustic absorbent panel made of BAODU brand, Model Number: Acoustic Sandwich Panel which is originated from Hebei,China. And it has a CE certification.

Q2: What is the minimum order quantity?

A2: The minimum order quantity is discussible.

Q3: What is the price of Acoustic Sandwich Panel?

A3: The price of Acoustic Sandwich Panel is reasonable.

Q4: How about the packaging of Acoustic Sandwich Panel?

A4: In general, for steel structure, we use the steel frame packing to keep goods not to be broken. For sandwich panel and color steel sheet, we use the plastic packing. If the clients need special packing will according to their requirements.

Q5: How about the delivery time and payment terms?

A5: The delivery time is 15days. And the payment terms are L/C, D/A, D/P, T/T, Western Union, MoneyGram.
