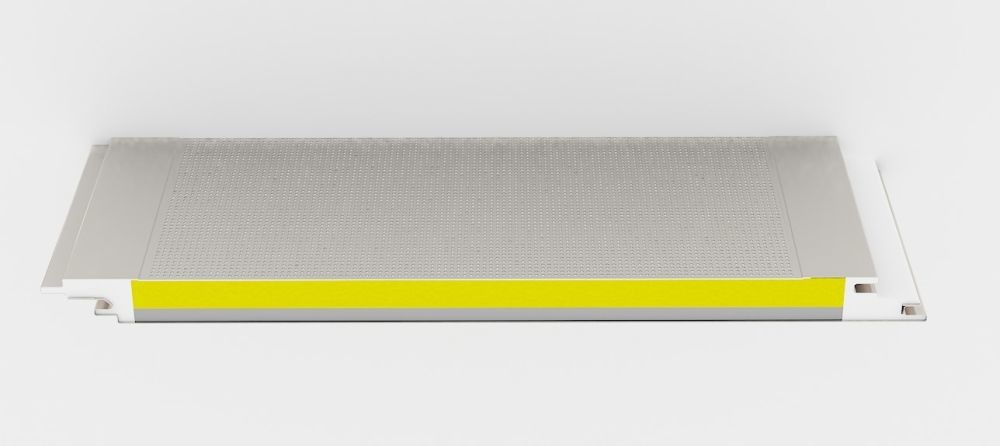

Precast Acoustic Sandwich Panel Heat Insulation For Wall Facade

Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Acoustic Sandwich Panel
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fireproof Soundproof Acoustic Sandwich Panel Heat Insulation Durable Keyword Acoustic Sandwich Panel
Length Customized Durability High
Installation Easy After-sale Service Online Technical Support, Onsite Installation,
Steel Thickness 0.4-0.8mm Material Rockwool Glasswool
Fireproof A-level Thickness 50/75/100/150/200mm
High Light

Precast Acoustic Sandwich Panel

,

Facade Acoustic Sandwich Panel

,

Facade precast sandwich panel

Leave a Message
Product Description

Fireproof Soundproof Acoustic Sandwich Panel Heat Insulation Durable

Product Description:

Our Acoustic Sandwich Panel offers an unbeatable combination of sound insulation and heat insulation properties. With a warranty of more than 50 years, this acoustic panel is the perfect solution for a variety of applications, including warehouses, buildings, and other equipments thermal. It is available in a variety of thicknesses, ranging from 50mm to 200mm, and can be customized to your desired length. Our soundproof panel is designed to provide superior acoustic insulation and heat insulation, making it the perfect solution for your soundproofing needs.

If you are looking for a sound insulation panel that is designed to last, look no further than our Acoustic Sandwich Panel. With its superior soundproofing capabilities and heat insulation properties, this soundproof panel is the perfect choice for your soundproofing needs. Our acoustic sandwich panel is also highly durable and can withstand extreme temperatures and environmental conditions, making it the perfect choice for your soundproofing needs.

Our Acoustic Sandwich Panel is the perfect solution for your soundproofing and heat insulation needs. With its superior soundproofing and heat insulation properties, this soundproof panel is the perfect choice for your soundproofing needs. This acoustic panel is also highly durable and can withstand extreme temperatures and environmental conditions, making it the perfect choice for your soundproofing needs.

Features:

1. Good Acoustic and thermal Insulation and energy saving material

2. Good Fire Resistance: Grade A

3. Special Connection Design: concealed connection

4. Graceful Finish: perforated

5. Advanced Machine: Customized machine

6. Raw Material: Only quality steel is selected.

7. Strict Quality Control:CE

8. Wide Usage: Used as roof and wall in workshop and warehouse

Technical Parameters:

TESTING DATA OF BAODU ACOUSTICAL SANDWICH PANEL
No.

REPORT

ID

TESTING ORGANIZATION

PRODUCT

NAME

MATERIAL STRUCTURE

(BOTTOM-TO-TOP)

TOTAL THICKNESS

(MM)

METAL THICKNESS

(MM)

ROCKWOOL/

GLASSWOOL DENSITY

(KG/m³)

CEMENT THICKNESS

(MM)

DAMPING THICKNESS

(MM)

SOUND ABSORBING DATA

(NRC)

SOUND INSULATION

(Db)

TESTING STANDARD: GB/T 19889.3-2005/ISO140-3:1995 Acoustics - Measurement of sound insulation in buildings and building elements - Part 3: Laboratory measurement of airborne sound insulation of building elements;
1 KS-2021-09101

ACOUSTICAL MEASURING& TESTING STATION, CHINESE ACADEMY OF SCIENCE










SOUND

INSULATION







STEEL PLATE

+CEMENT BOARD+ROCKWOOL

+STEEL PLATE

100 0.6/0.5 120 10 / / 38
2 KS-2021-09102

STEEL PLATE

+DAMPING+ROCKWOOL

+STEEL PLATE

100 0.6/0.5 120 / 3 / 37
3 KS-2021-09103

STEEL PLATE

+CEMENT BOARD+DAMPING

+ROCKWOOL

+STEEL PLATE

100 0.5/0.5 120 10 3 / 39
4 KS-2021-09104

STEEL PLATE

+DAMPING+CEMENT BOARD

+ROCKWOOL

+STEEL PLATE

100 0.5/0.5 120 10 3 / 41
5 KS-2021-09105

STEEL PLATE

+DAMPING+ROCKWOOL

+DAMPING

+STEEL PLATE

100 0.5/0.5 120 / 3 / 37
6 KS-2021-09106

STEEL PLATE

+CEMENT+ROCKWOOL

+DAMPING

+STEEL PLATE

100 0.5/0.5 120 4 3 // 37
7 KS-2021-09107

STEEL PLATE

+DAMPING+CEMENT BOARD +ROCKWOOL+ DAMPING

+STEEL PLATE

100 0.5/0.5 120 4 2 / 38
8 KS-2021-09108

STEEL PLATE

+CEMENT BOARD

+DAMPING+ROCKWOOL +DAMPIGN+STEEL PLATE

100 0.5/0.5 120 4 2 / 38
9 KS-2021-09109

STAINLESS STEEL PLATE

+ROCKWOOL

+STAINLESS STEEL PLATE

100 0.5/0.5 120 / / / 34
10 KS-2021-09110

STAINLESS STEEL PLATE

+ROCKWOO

L+STAINLESS STEEL PLATE

50 0.5/0.5 120 / / / 33
11 KS-2021-09111

STEEL PLATE

+ROCKWOOL

+STEEL PLATE

100 0.6/0.6 120 / / / 35
TESTING STANDARD: GB/T20247-2006/iso 354:2003 Acoustics reverberation room sound absorption measurement
12 KS-2021-09112 ACOUSTICAL MEASURING& TESTING STATION, CHINESE ACADEMY OF SCIENCE

SOUND

ABSORPTION

PERFORATED ALU PLATE

+GLASS FIBRE+GLASSWOOL

+STEEL PLATE

80 0.6/0.6 64 / / 0.95 /

TESTING STANDARD:
1.: GB/T20247-2006/iso 354:2003 Acoustics reverberation room sound absorption measurement;
2. GB/T 19889.3-2005/ISO140-3:1995 Acoustics - Measurement of sound insulation in buildings and building elements - Part 3: Laboratory measurement of airborne sound insulation of building elements;
13 A19-134 CENTER FOR BUILDING ENVIORNMENT TEST, TSINGHUA UNIVERSITY

SOUND ABSORPTION

&SOUND INSULATION

PERFORATED STEEL PLATE

+GLASS FIBRE+GLASSWOOL

+CEMENT BOARD

+STEEL PLATE

100 0.5/0.5 64 6 / 0.9 Rw+C=38dB; Rw+Ctr=34dB
Precast Acoustic Sandwich Panel Heat Insulation For Wall Facade 0

Applications:

1.Sandwich Panel has the advantages of beautiful atmosphere, energy saving and heat preservation and long life.

It is widely used steel structure warehouse/workshop, fire prevention workshop, activity board room, chicken house,in cold storage room, fresh storage room, various purification rooms, air conditioning room, etc.

Precast Acoustic Sandwich Panel Heat Insulation For Wall Facade 1Precast Acoustic Sandwich Panel Heat Insulation For Wall Facade 2

Customization:



Acoustic Sandwich Panel Customization Service

We provide customization services for Acoustic Sandwich Panel with the following features:

  • Brand Name: BAODU
  • Model Number: Acoustic Sandwich Panel
  • Place of Origin: Hebei, China
  • Certification: CE
  • Minimum Order Quantity: Discussible
  • Price: Reasonable
  • Packaging Details: In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
  • Delivery Time: 15days
  • Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability: 5000 Square Meters per Day
  • Heat Insulation: Yes
  • Function: Thermal Insulation And Sound Insulation
  • Application: Warehouse, Building And Other Equipments Thermal
  • Keyword: Acoustic Sandwich Panel
  • Thickness: 50mm 75mm 80mm 100mm 125mm 150mm 200mm
  • Special Feature: Sound Insulation Panel, Sound Absorbing Panel, Sound Absorbing Panel

If you have any questions about our Acoustic Sandwich Panel customization services, please do not hesitate to contact us.

Support and Services:

Acoustic Sandwich Panel Technical Support and Service

In order to ensure the best possible performance of our acoustic sandwich panel products, we provide a variety of technical support and service options. Our team of experts is available to answer any questions or provide assistance for installation, maintenance, and troubleshooting. We also provide detailed product manuals and resources to help you get the most out of your acoustic sandwich panel

We understand that every customer's needs are different, so we are always happy to provide custom solutions if needed. We offer scheduled maintenance visits in order to ensure that your acoustic sandwich panel is performing optimally and that all components are up-to-date. We also offer extended warranties for added peace of mind.

If you have any questions or need assistance with your acoustic sandwich panel, don't hesitate to contact us! Our team is available to help 24/7.



Packing

Precast Acoustic Sandwich Panel Heat Insulation For Wall Facade 3



FAQ:

Q1: What is the brand name of Acoustic Sandwich Panel?
A1: The brand name of Acoustic Sandwich Panel is BAODU.
Q2: What is the model number of Acoustic Sandwich Panel?
A2: The model number of Acoustic Sandwich Panel is Acoustic Sandwich Panel.
Q3: Where is the origin of Acoustic Sandwich Panel?
A3: The origin of Acoustic Sandwich Panel is Hebei, China.
Q4: What is the minimum order quantity of Acoustic Sandwich Panel?
A4: The minimum order quantity of Acoustic Sandwich Panel is Discussible.
Q5: How about the delivery time of Acoustic Sandwich Panel?
A5: The delivery time of Acoustic Sandwich Panel is 15days.
