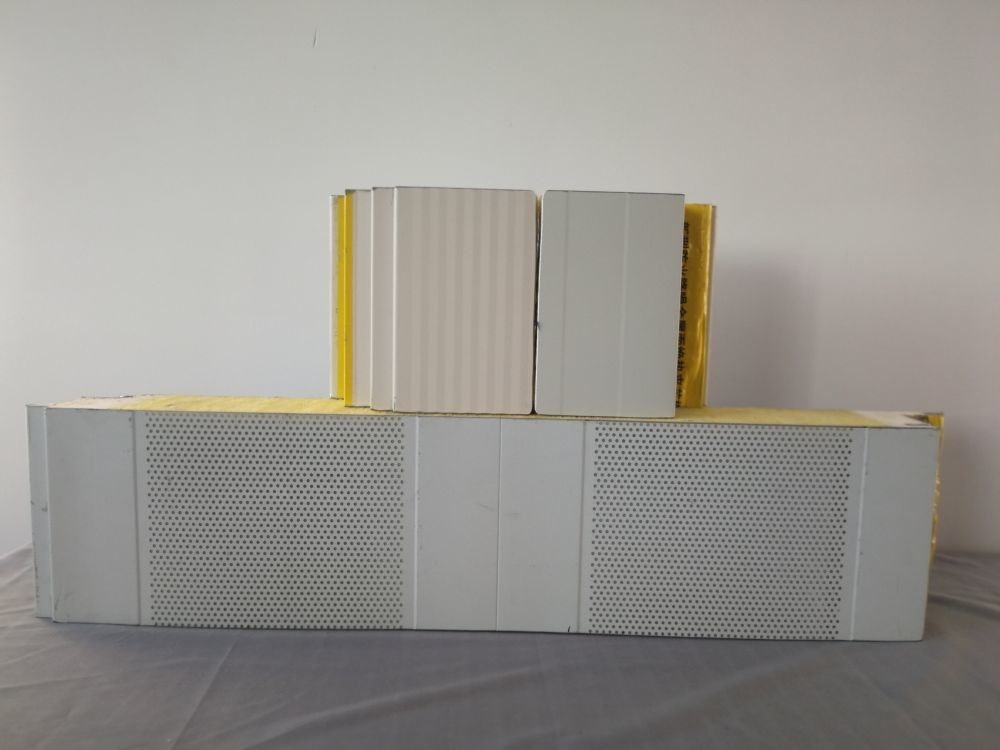

Fireproof Acoustic Sandwich Panel Systems 125mm 150mm 200mm

  • Fireproof Acoustic Sandwich Panel Systems 125mm 150mm 200mm
  • Fireproof Acoustic Sandwich Panel Systems 125mm 150mm 200mm
  • Fireproof Acoustic Sandwich Panel Systems 125mm 150mm 200mm
Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Acoustic Sandwich Panel
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fireproof A Level Sound Insulation Acoustic Sandwich Panel Ral Color 50mm 75mm 80mm 100mm 125mm 150mm 200mm Soundproof Yes
After-sale Service Online Technical Support, Onsite Installation, Moisture Resistance Yes
Installation Easy Thickness 50mm 75mm 80mm 100mm 125mm 150mm 200mm
Fireproof A-level Durability High
Length Customized Keyword Acoustic Sandwich Panel
High Light

150mm Acoustic Sandwich Panel

,

200mm Acoustic Sandwich Panel

,

Fireproof sandwich panel systems
Leave a Message
Product Description

Fireproof A Level Sound Insulation Acoustic Sandwich Panel Ral Color 50mm 75mm 80mm 100mm 125mm 150mm 200mm

Acoustic Sandwich Panel

Our acoustic sandwich panel is a perfect choice for your soundproofing needs. It is a durable, soundproof and thermal insulation panel which is available in a variety of colors and designs. It is a strong and reliable sound absorbing panel that provides excellent sound insulation and prevents external noise from entering your space. It is highly effective in sound absorption, sound insulation and thermal insulation, making it the ideal choice for a variety of applications.

Our acoustic sandwich panel is made to be long lasting and highly durable, making it a great investment. It is also easy to install and maintain, making it a cost-effective solution. It features a unique design that not only looks great, but also performs well. With its high acoustic performance and sound insulation, it is an excellent choice for soundproofing your home or office.

If you are looking for a soundproofing solution that is both cost-effective and reliable, look no further than our acoustic sandwich panel. With its strong and durable construction, it is an ideal choice for soundproofing and thermal insulation. It is the perfect solution for anyone who wants to enjoy peace and quiet without sacrificing style.

Features:

1. Good Thermal Insulation, an energy saving material

2. Good Fire Resistance: B1 grade for total panel

3. Special Connection Design: Screw concealed connection

4. Graceful Finish: embossment, small wave, big rib and flat finish

5. Advance Machine: The longest main machine

6. Raw Material: Only quality steel is selected

7. Strict Quality Control:CE

8. Wide Usage: Used as roof and wall in workshop and warehouse

Technical Parameters:

TESTING DATA OF BAODU ACOUSTICAL SANDWICH PANEL
No.

REPORT

ID

 TESTING ORGANIZATION

PRODUCT

NAME

MATERIAL STRUCTURE

(BOTTOM-TO-TOP)

TOTAL THICKNESS

(MM)

METAL THICKNESS

(MM)

ROCKWOOL/

GLASSWOOL DENSITY

(KG/m³)

CEMENT THICKNESS

(MM)

DAMPING THICKNESS

(MM)

SOUND ABSORBING DATA

(NRC)

SOUND INSULATION

(Db)
TESTING STANDARD: GB/T 19889.3-2005/ISO140-3:1995 Acoustics - Measurement of sound insulation in buildings and building elements - Part 3: Laboratory measurement of airborne sound insulation of building elements;
1 KS-2021-09101

ACOUSTICAL MEASURING& TESTING STATION, CHINESE ACADEMY OF SCIENCE










SOUND

INSULATION







STEEL PLATE

+CEMENT BOARD+ROCKWOOL

+STEEL PLATE

 100 0.6/0.5 120 10 / / 38
2 KS-2021-09102

STEEL PLATE

+DAMPING+ROCKWOOL

+STEEL PLATE

 100 0.6/0.5 120 / 3 / 37
3 KS-2021-09103

STEEL PLATE

+CEMENT BOARD+DAMPING

+ROCKWOOL

+STEEL PLATE

 100 0.5/0.5 120 10 3 / 39
4 KS-2021-09104

STEEL PLATE

+DAMPING+CEMENT BOARD

+ROCKWOOL

+STEEL PLATE

 100 0.5/0.5 120 10 3 / 41
5 KS-2021-09105

STEEL PLATE

+DAMPING+ROCKWOOL

+DAMPING

+STEEL PLATE

 100 0.5/0.5 120 / 3 / 37
6 KS-2021-09106

STEEL PLATE

+CEMENT+ROCKWOOL

+DAMPING

+STEEL PLATE

 100 0.5/0.5 120 4 3 // 37
7 KS-2021-09107

STEEL PLATE

+DAMPING+CEMENT BOARD +ROCKWOOL+ DAMPING

+STEEL PLATE

 100 0.5/0.5 120 4 2 / 38
8 KS-2021-09108

STEEL PLATE

+CEMENT BOARD

+DAMPING+ROCKWOOL +DAMPIGN+STEEL PLATE

 100 0.5/0.5 120 4 2 / 38
9 KS-2021-09109

STAINLESS STEEL PLATE

+ROCKWOOL

+STAINLESS STEEL PLATE

 100 0.5/0.5 120 / / / 34
10 KS-2021-09110

STAINLESS STEEL PLATE

+ROCKWOO

L+STAINLESS STEEL PLATE

 50 0.5/0.5 120 / / / 33
11 KS-2021-09111

STEEL PLATE

+ROCKWOOL

+STEEL PLATE

 100 0.6/0.6 120 / / / 35
TESTING STANDARD: GB/T20247-2006/iso 354:2003 Acoustics reverberation room sound absorption measurement
12 KS-2021-09112 ACOUSTICAL MEASURING& TESTING STATION, CHINESE ACADEMY OF SCIENCE

SOUND

ABSORPTION

PERFORATED ALU PLATE

+GLASS FIBRE+GLASSWOOL

+STEEL PLATE

 80 0.6/0.6 64 / / 0.95 /

TESTING STANDARD:
1.: GB/T20247-2006/iso 354:2003 Acoustics reverberation room sound absorption measurement;
2. GB/T 19889.3-2005/ISO140-3:1995 Acoustics - Measurement of sound insulation in buildings and building elements - Part 3: Laboratory measurement of airborne sound insulation of building elements;
13 A19-134 CENTER FOR BUILDING ENVIORNMENT TEST, TSINGHUA UNIVERSITY

SOUND ABSORPTION

&SOUND INSULATION

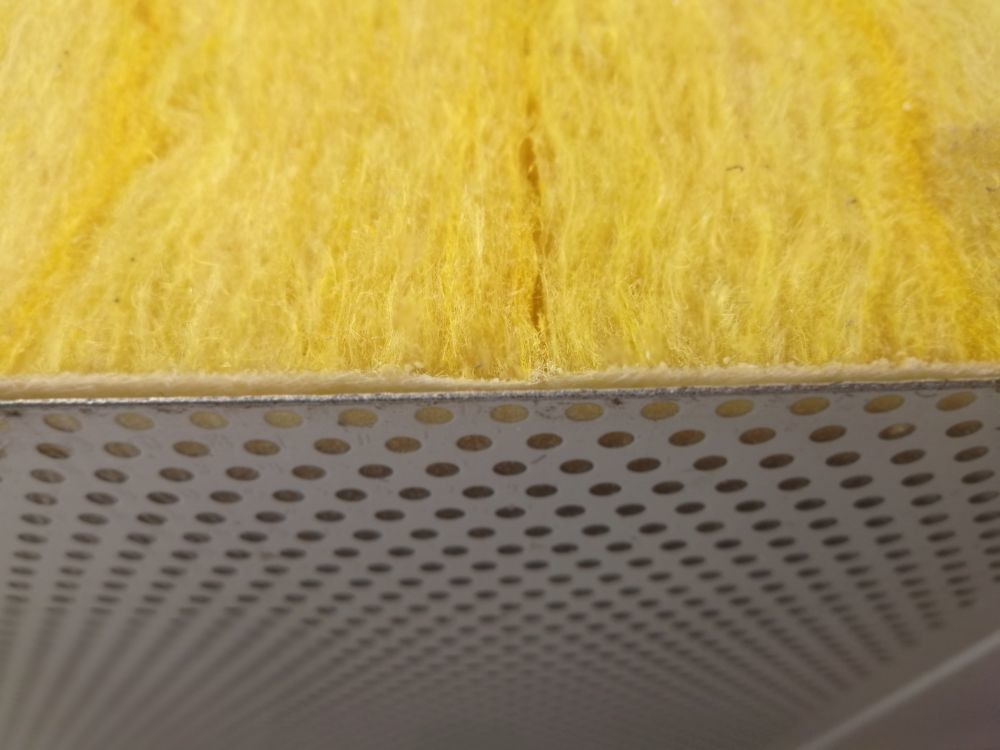

PERFORATED STEEL PLATE

+GLASS FIBRE+GLASSWOOL

+CEMENT BOARD

+STEEL PLATE

 100 0.5/0.5 64 6 / 0.9 Rw+C=38dB; Rw+Ctr=34dB

Applications:

1.Industrial Facilities

2.Commercial Building

3.Social Construct

4.Power Plants

5.Agricultural objects

6.Sport halls

Support and Services:

Acoustic Sandwich Panel Technical Support and Service

We provide technical support and services for our acoustic sandwich panel products. Our team of experienced professionals can answer any questions you may have about product specifications, installation, and maintenance.

We offer a range of services, including:

  • Product design advice
  • Installation assistance
  • Maintenance and repair services
  • On-site visits to evaluate product performance
  • Training and education on product use and safety

For questions or to arrange for technical support or services, please contact us today.

Packing and Shipping:

The Acoustic Sandwich Panel is packaged and shipped with the following:

  • Panel is wrapped in waterproof plastic wrap.
  • Panel is secured to a pallet with straps.
  • Pallet is shrink-wrapped.
  • Panel is shipped via a reliable, professional shipping company.

.
