Workshop Cold Storage Sandwich Panel Construction Roofing OEM

Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Acoustic Sandwich Panel
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Sound Insulation Acoustic Sandwich Panel Roof Workshop And Warehouse Function Thermal Insulation And Sound Insulation
Installation Easy Heat Insulation Yes
Keyword Sound Insulation Acoustic Sandwich Panel Moisture Resistance Yes
Thickness 50mm 75mm 80mm 100mm 125mm 150mm 200mm Density 60-200kg/m3
After-sale Service Online Technical Support, Onsite Installation,
High Light

OEM cold storage sandwich

,

Roofing cold storage sandwich

,

OEM sandwich panel construction

Leave a Message
Product Description

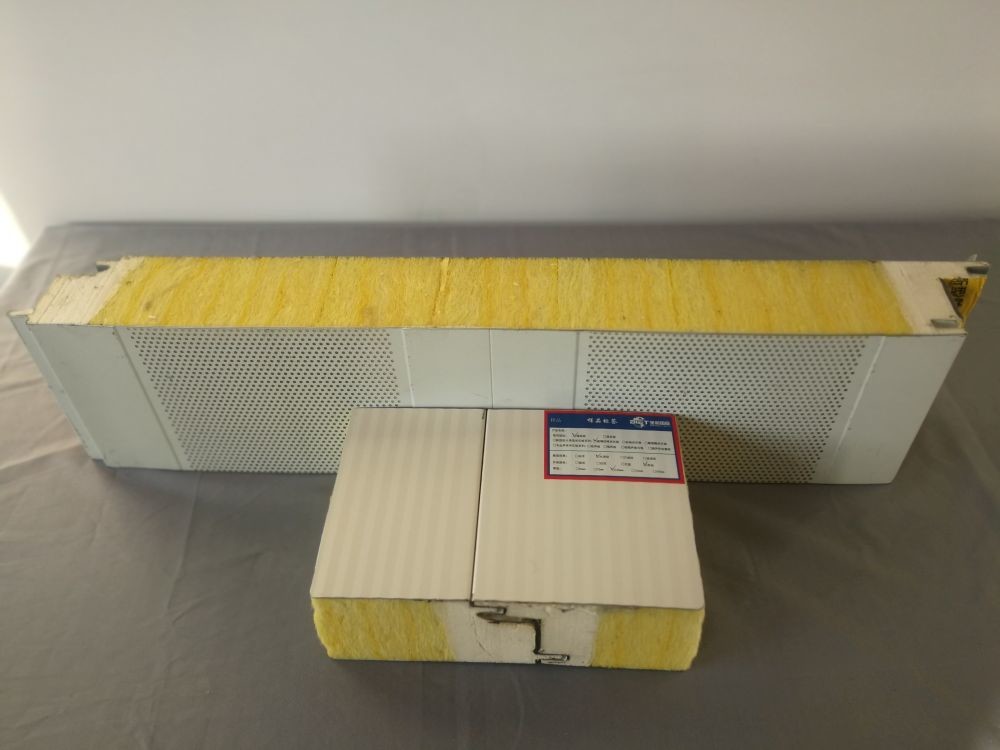

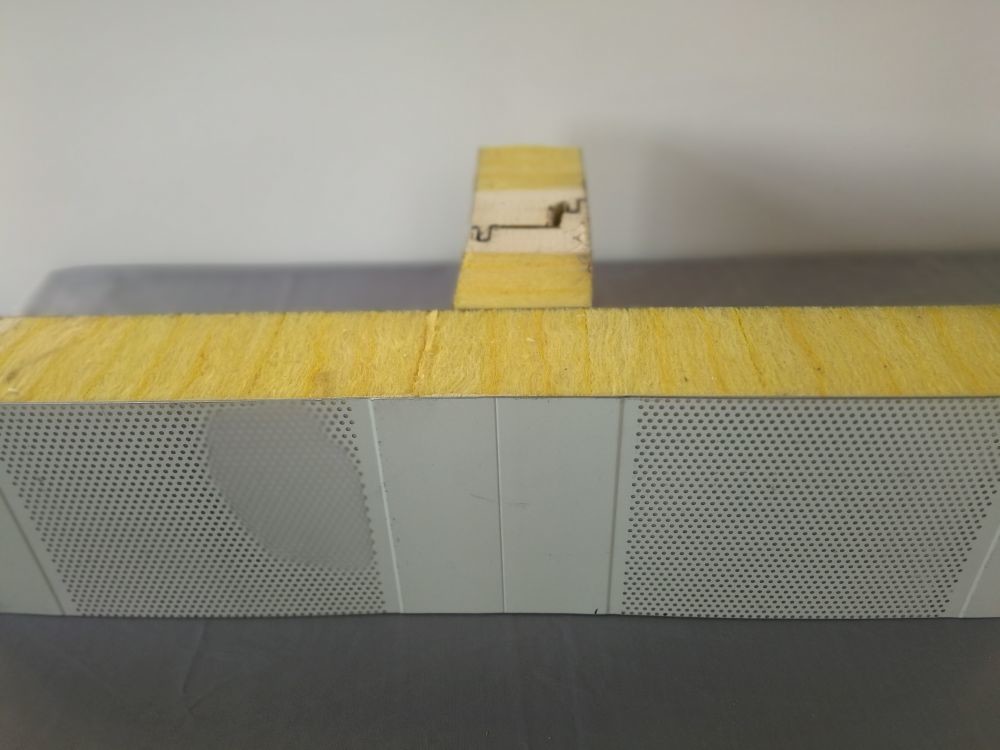

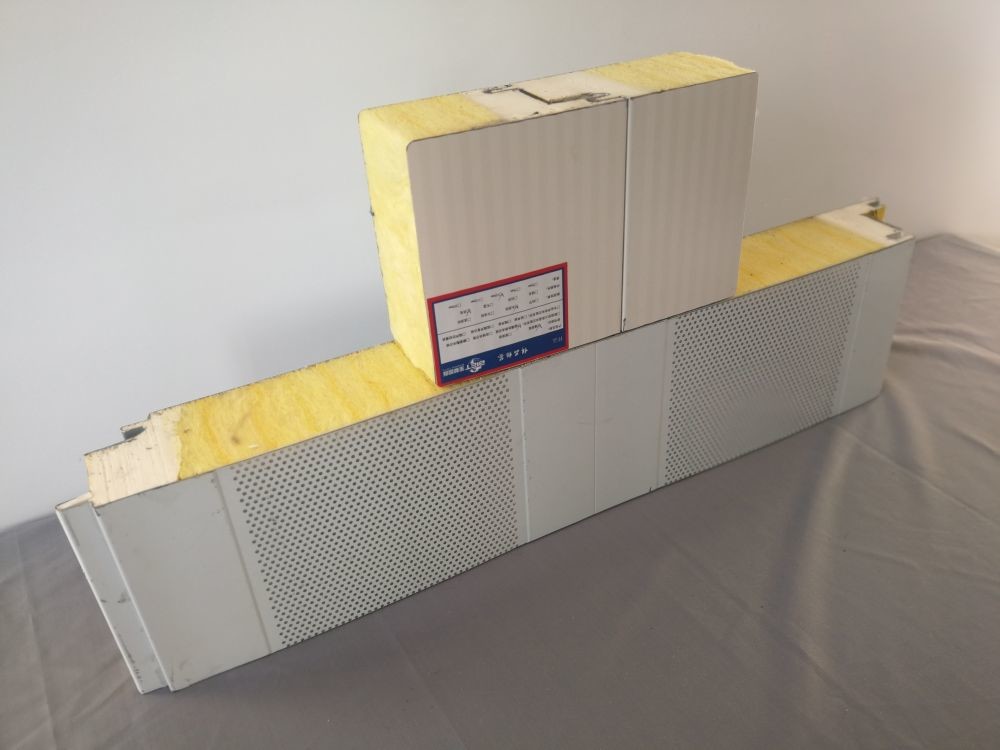

Sound Insulation Acoustic Sandwich Panel Roof Workshop And Warehouse

Product Description:

Acoustic Sandwich Panel is a kind of sound absorbing panel with superior acoustic performance, which is made of Rockwool and Glasswool. It is easy to install and provides excellent soundproofing. With it, people can easily enjoy a quiet and comfortable environment. It also has excellent after-sale service, including online technical support, onsite installation, and other services for customers. Acoustic Sandwich Panel is the best choice for soundproofing and acoustic barrier. It is also widely used in public places, such as schools, conference rooms, and entertainment venues.

Features:

1.Thermal Insulation: The low coefficient of heat conductivity and the excellent node design guarantee the sealing performance and the thermal insulation effect.

2.Sound Insulation: The sound absorption effect is good. The sound reduction factor is no less than 30dB. It can effectively reduce the interference of outside noise.

3.Solid: The panel has high strength, unique double-support plug interface design and strong capacity in wind pressure resistance. It has strong strength to resist pressure and bearing, which can used as exterior protected construction and load-carrying construction.

4.Beautiful Design: Bright in color and attractive in appearance, there is no need to make the outer ornament. The panel adopts hidden-screw node design and has diversified panel effects.

5.Convenient Installation: Easy, flexible and fast. Compared with civil construction, it can cut down over 40% construction period.

Technical Parameters:

TESTING DATA OF BAODU ACOUSTICAL SANDWICH PANEL
No.

REPORT

ID

TESTING ORGANIZATION

PRODUCT

NAME

MATERIAL STRUCTURE

(BOTTOM-TO-TOP)

TOTAL THICKNESS

(MM)

METAL THICKNESS

(MM)

ROCKWOOL/

GLASSWOOL DENSITY

(KG/m³)

CEMENT THICKNESS

(MM)

DAMPING THICKNESS

(MM)

SOUND ABSORBING DATA

(NRC)

SOUND INSULATION

(Db)

TESTING STANDARD: GB/T 19889.3-2005/ISO140-3:1995 Acoustics - Measurement of sound insulation in buildings and building elements - Part 3: Laboratory measurement of airborne sound insulation of building elements;
1 KS-2021-09101

ACOUSTICAL MEASURING& TESTING STATION, CHINESE ACADEMY OF SCIENCE










SOUND

INSULATION







STEEL PLATE

+CEMENT BOARD+ROCKWOOL

+STEEL PLATE

100 0.6/0.5 120 10 / / 38
2 KS-2021-09102

STEEL PLATE

+DAMPING+ROCKWOOL

+STEEL PLATE

100 0.6/0.5 120 / 3 / 37
3 KS-2021-09103

STEEL PLATE

+CEMENT BOARD+DAMPING

+ROCKWOOL

+STEEL PLATE

100 0.5/0.5 120 10 3 / 39
4 KS-2021-09104

STEEL PLATE

+DAMPING+CEMENT BOARD

+ROCKWOOL

+STEEL PLATE

100 0.5/0.5 120 10 3 / 41
5 KS-2021-09105

STEEL PLATE

+DAMPING+ROCKWOOL

+DAMPING

+STEEL PLATE

100 0.5/0.5 120 / 3 / 37
6 KS-2021-09106

STEEL PLATE

+CEMENT+ROCKWOOL

+DAMPING

+STEEL PLATE

100 0.5/0.5 120 4 3 // 37
7 KS-2021-09107

STEEL PLATE

+DAMPING+CEMENT BOARD +ROCKWOOL+ DAMPING

+STEEL PLATE

100 0.5/0.5 120 4 2 / 38
8 KS-2021-09108

STEEL PLATE

+CEMENT BOARD

+DAMPING+ROCKWOOL +DAMPIGN+STEEL PLATE

100 0.5/0.5 120 4 2 / 38
9 KS-2021-09109

STAINLESS STEEL PLATE

+ROCKWOOL

+STAINLESS STEEL PLATE

100 0.5/0.5 120 / / / 34
10 KS-2021-09110

STAINLESS STEEL PLATE

+ROCKWOO

L+STAINLESS STEEL PLATE

50 0.5/0.5 120 / / / 33
11 KS-2021-09111

STEEL PLATE

+ROCKWOOL

+STEEL PLATE

100 0.6/0.6 120 / / / 35
TESTING STANDARD: GB/T20247-2006/iso 354:2003 Acoustics reverberation room sound absorption measurement
12 KS-2021-09112 ACOUSTICAL MEASURING& TESTING STATION, CHINESE ACADEMY OF SCIENCE

SOUND

ABSORPTION

PERFORATED ALU PLATE

+GLASS FIBRE+GLASSWOOL

+STEEL PLATE

80 0.6/0.6 64 / / 0.95 /

TESTING STANDARD:
1.: GB/T20247-2006/iso 354:2003 Acoustics reverberation room sound absorption measurement;
2. GB/T 19889.3-2005/ISO140-3:1995 Acoustics - Measurement of sound insulation in buildings and building elements - Part 3: Laboratory measurement of airborne sound insulation of building elements;
13 A19-134 CENTER FOR BUILDING ENVIORNMENT TEST, TSINGHUA UNIVERSITY

SOUND ABSORPTION

&SOUND INSULATION

PERFORATED STEEL PLATE

+GLASS FIBRE+GLASSWOOL

+CEMENT BOARD

+STEEL PLATE

100 0.5/0.5 64 6 / 0.9 Rw+C=38dB; Rw+Ctr=34dB


Applications:

BAODU Acoustic Sandwich Panel

BAODU Acoustic Sandwich Panel is a sound insulation panel with remarkable fireproof performance, density ranging from 60-200kg/m3, and customized colors. It is widely used in warehouse, building and other equipment thermal insulation. It is certified with CE and has A-level fireproof performance.

1.Industrial Facilities

2.Commercial Building

3.Social Construct

4.Power Plants

Support and Services:

Acoustic Sandwich Panel provides technical support and services in order to ensure its customers receive the best user experience.

Our technical support team is available to answer any questions you may have regarding the product. We can provide assistance with product installation, troubleshooting, and maintenance. We also offer online resources such as FAQs, product manuals, and video tutorials.

Additionally, our team of experienced engineers can provide on-site services to help you with any issues you may have. We also provide training for our customers so they can become more proficient in using the product.

If you have any further questions, please do not hesitate to contact us. We are committed to providing our customers with the best possible experience when using our product.

Packing and Shipping:

Packaging and Shipping for Acoustic Sandwich Panel

Acoustic Sandwich Panels are made of high-density materials such as glass wool, rock wool, and polyurethane foam. Our panels are packaged and shipped in protective packaging, such as steel boxes, to ensure that they arrive in pristine condition.

We use various shipping methods depending on the size and weight of the panels. Smaller panels may be shipped via air freight, while larger panels may be shipped via ground or sea freight.

We also offer custom packaging and shipping services for customers with specific requirements. Please contact us for more information.
