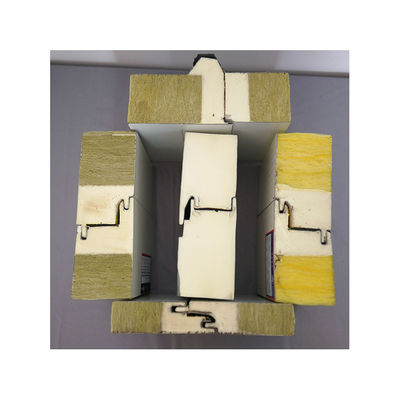

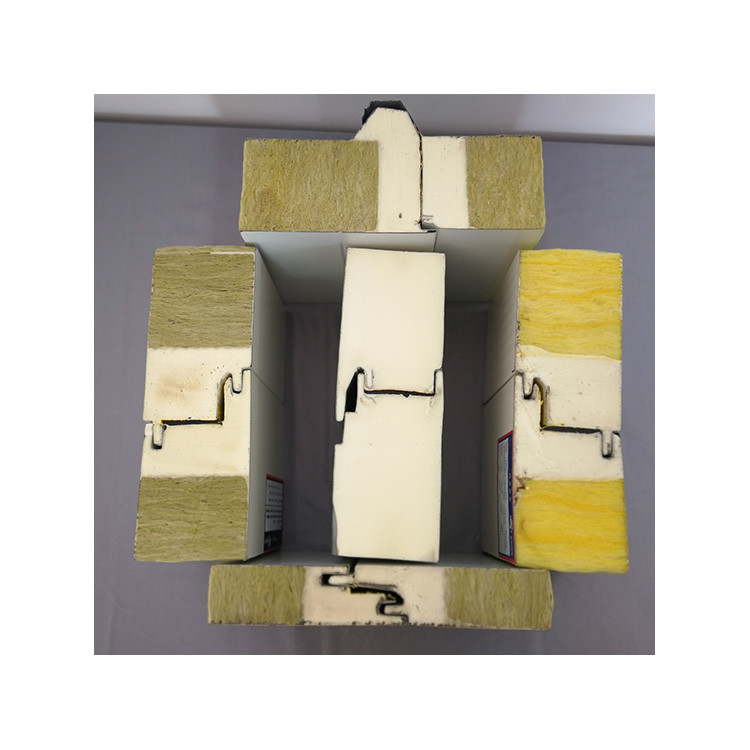

Structural Glasswool Precast Sandwich Panel 25mm Coolroom Panels For Building Roofs

  • Structural Glasswool Precast Sandwich Panel 25mm Coolroom Panels For Building Roofs
  • Structural Glasswool Precast Sandwich Panel 25mm Coolroom Panels For Building Roofs
Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Glasswool Sandwich Panel
Document Product Brochure PDF
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Anti Corrosive Sound Absorption Glasswool Sandwich Panel For Building Roofs And Wall Facets Surface Treatment Customized
Density 64kg/m3 Sample Free Sample
Length Customized After-sale Service Online Technical Support, Onsite Installation
Project Solution Capability Graphic Design 3D Model Design Total Solution For Project Design Style Modern
Material Glasswool Keyword Glasswool Sandwich Panel
Highlight

Structural precast sandwich panel

,

25mm precast sandwich panel

,

Precast 25mm coolroom panels
Leave a Message
Product Description

Anti Corrosive Sound Absorption Glasswool Sandwich Panel For Building Roofs And Wall Facets

Product Description:

Glasswool Sandwich Panel: Modern Design with High Performance

Glasswool Sandwich Panel is a kind of structural and insulation material made of foam color steel exterior wall roof, glass fiber sandwich panel, fire resistance glasswool acoustic light weight thermal insulation. It is designed with modern style to provide superior performance in sound insulation, waterproof, moistureproof and fireproof. It has a long warranty of more than 50 years and the surface treatment can be customized according to your needs. The color can be chosen from RAL, which is the most popular color system in the world.

The Glasswool Sandwich Panel is an effective and energy-saving material, and it can provide good insulation performance and fire resistance. It is also light weight and has excellent acoustic performance, making it an ideal choice for roofing. In addition, it is highly weatherproof and can ensure the waterproof, moistureproof, and anti-corrosion performance. It is a great choice for exterior wall, roof, and interior decoration.

The Glasswool Sandwich Panel is an excellent product for modern buildings and it can provide superior performance in energy efficiency, sound insulation, fire resistance, and waterproofing. It is an ideal choice for any construction project that requires advanced insulation performance as well as aesthetic and decorative features. With its long warranty of more than 50 years and customization options, it is an excellent choice for your building.

Features:

Adequate Insulation

Adequate insulation offers thermal & acoustic insulation properties.

Best alternative

cost-efficient alternative to conventional building masonry construction where there is a higher risk of fire.

Customizable

100% customized sizes available as per the customer requirement or building requirements.

Energy savings

Low thermal conductivity helps in higher energy savings and maintains a desired temperature.

Fire Resistance

The core material of Glasswool panels is inflammable and insulating. Thus it prevents flames from spreading and is a viable choice for fire-resistant constructions.

Zero Maintenance

Glasswool insulated sandwich panels does not requires painting, any kind of maintenance.

Technical Parameters:

Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.69 12.95 L(m) 3.74 3.23 2.86 2.57 2.23
70 0.47 14.50 L(m) 5.01 4.34 3.86 3.48 3.05
100 0.36 16.04 L(m) 6.21 5.32 4.73 4.28 3.75
125 0.34 17.06 L(m) 7.11 6.31 5.77 4.93 4.32
150 0.33 19.14 L(m) 8.00 6.94 6.18 5.58 4.89
200 0.30 22.78 L(m) 9.79 8.56 7.63 6.88 6.00


Applications:

Industrial Buildings

Store Houses And Logistic Centres

Commercial Buildings And Offices

Food Industry Facilities

Agricultural Objects

Sport Halls

Support and Services:

Glasswool Sandwich Panel Technical Support and Service

We provide technical support and service for our Glasswool Sandwich Panel. Our team is available to answer any questions or concerns you may have about the product. We can also provide installation instructions and product care and maintenance recommendations.

Our technical support is available 24 hours a day, 7 days a week. If you have any questions or concerns, please don’t hesitate to contact us. We will be happy to help you.

Packing and Shipping:

Packaging and Shipping of Glasswool Sandwich Panel

Glasswool Sandwich Panel products should be packaged and shipped with the following precautions:

  • The products should be placed on the pallets and the edges of the pallets should be reinforced.
  • Each pallet should have a waterproof cover to protect the products from moisture.
  • The package should be clearly labeled and the product should be clearly identified.
  • The products should be loaded into the shipping container carefully and securely.
  • The products should be inspected before shipping to ensure they are not damaged.
  • The shipping container should be sealed securely and the shipping documents should be complete and accurate.

FAQ:

Q: What brand is the Glasswool Sandwich Panel?
A: The brand name is BAODU.
Q: What is the model number of the Glasswool Sandwich Panel?
A: The model number is Glasswool Sandwich Panel.
Q: Where is the Glasswool Sandwich Panel made?
A: The Glasswool Sandwich Panel is made in Hebei, China.
Q: Does the Glasswool Sandwich Panel have any certifications?
A: Yes, the Glasswool Sandwich Panel has a CE certification.
Q: What is the minimum order quantity for the Glasswool Sandwich Panel?
A: The minimum order quantity is discussible.
