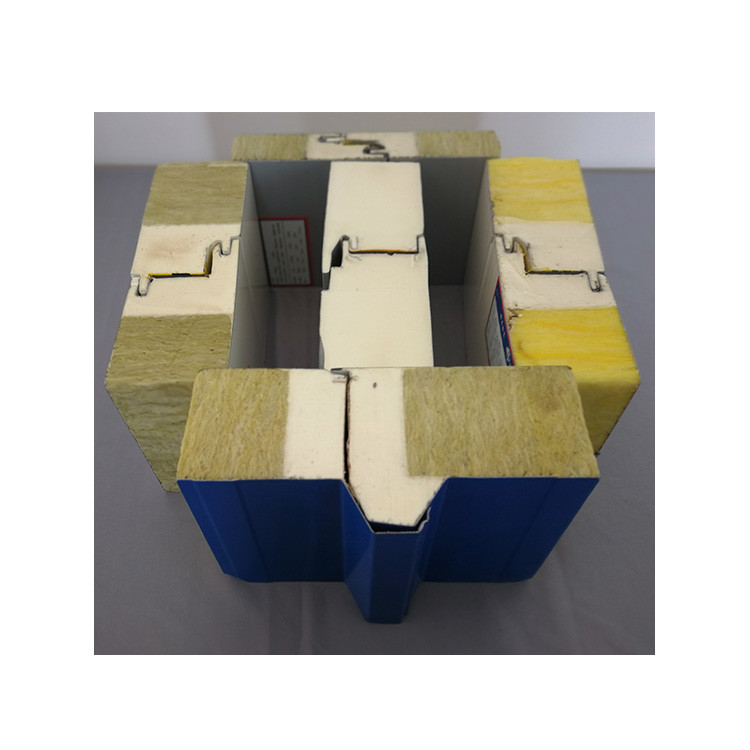

50mm 100mm Glasswool Sandwich Panel For Coolroom OEM

  • 50mm 100mm Glasswool Sandwich Panel For Coolroom OEM
  • 50mm 100mm Glasswool Sandwich Panel For Coolroom OEM
Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Glasswool Sandwich Panel
Document Product Brochure PDF
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 50mm 75mm 100mm 125mm 150mm 200mm Glasswool Sandwich Panel Total Solution For Project Design Style Modern
Density 64kg/m3 Surface Treatment Customized
After-sale Service Online Technical Support, Onsite Installation Warranty More Than 50 Years
Project Solution Capability Graphic Design 3D Model Design Total Solution For Project Sample Free Sample
Color RAL Keyword Glasswool Sandwich Panel
Highlight

50mm Glasswool Sandwich Panel

,

Coolroom Glasswool Sandwich Panel

,

OEM 50mm coolroom panel
Leave a Message
Product Description

50mm 75mm 100mm 125mm 150mm 200mm Glasswool Sandwich Panel Total Solution For Project

Product Description:

Our Glasswool Sandwich Panel is a foam color steel exterior wall roof panel with fireproof glass wool sandwich panel as the core material. It has a density of 64kg/m3. The panel is designed in a modern style and is available in a variety of RAL colors. For a complete service experience, our Glasswool Sandwich Panel includes online technical support and onsite installation.

Features:

Heat insulation capability.

The heat insulation capability of the Glass wool sandwich panel depends on the specifications of the filling material.

Good fire performance.

Glass wool sandwich panel is fire rating of non-combustible A grade. Its shape, strength and material are hard to be changed in the fire, it can protects your valuable life and properties.

Sound insulation and Sound absorption capability.

Sound insulation is a physical value what shows the rate of sound energy decrease on the one side of a surface (e.g. wall or roof cladding), while the noise source is on the other side.

Sound absorption values of panels can be increased by applying perforated internal armouring and mineral wool insulation core.



Please feel fee to contact us if you have any question.

Technical Parameters:

Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.69 12.95 L(m) 3.74 3.23 2.86 2.57 2.23
70 0.47 14.50 L(m) 5.01 4.34 3.86 3.48 3.05
100 0.36 16.04 L(m) 6.21 5.32 4.73 4.28 3.75
125 0.34 17.06 L(m) 7.11 6.31 5.77 4.93 4.32
150 0.33 19.14 L(m) 8.00 6.94 6.18 5.58 4.89
200 0.30 22.78 L(m) 9.79 8.56 7.63 6.88 6.00


Applications:

Glass WOOL SANDWICH PANEL are applied as external walls and internal division walls, installed vertically or horizontally on single- or multi-span structure.

Industrial Buildings

Store Houses And Logistic Centres

Commercial Buildings And Offices

Food Industry Facilities

Agricultural Objects

Sport Halls

1, First of all, it must carry on the construction preparation before installation, include personnel, materials, etc. All will be well prepared.

2, Before the installation of mineral wool wall panel, it should check whether the verticality and levelness of metope purlin installation requirements, wall frame column vertical degree meets the requirement.

3, Before installation mineral wool wall panel, it should first mounting plate bottom water retaining plate and the bottom of the window to block water board, water retaining plate and wall frame beam connection with self tapping screw fixation.

4, Glass wool wall panel links with ground.

Support and Services:

Glasswool Sandwich Panel offers an excellent technical support and service. The support includes an online user manual, user forums, and an extensive library of FAQs. Additionally, there is a team of experienced professionals available to respond to customer inquiries and provide technical assistance. The team also provides support for product installation and troubleshooting.



Packing and Shipping:

50mm 100mm Glasswool Sandwich Panel For Coolroom OEM 0



FAQ:

Q: What is the brand name of Glasswool Sandwich Panel?
A: The brand name is BAODU.
Q: What's the model number of Glasswool Sandwich Panel?
A: The model number is Glasswool Sandwich Panel.
Q: Where is Glasswool Sandwich Panel produced?
A: Glasswool Sandwich Panel is produced in Hebei, China.
Q: Does the Glasswool Sandwich Panel have the CE certification?
A: Yes, Glasswool Sandwich Panel has the CE certification.
Q: How many Square Meters per Day can be supplied of Glasswool Sandwich Panel?
A: The maximum supply of Glasswool Sandwich Panel is 5000 Square Meters per Day.
