Fireproof Foam Glasswool Sandwich Panel For Wall Roof PU Sealing

Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Glasswool Sandwich Panel
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fireproof Pu Sealing Fiberwool Glasswool Sandwich Panel For Wall Roof Width 1000mm
Color RAL Panel Type Glasswool Sandwich Panel
Design Style Modern Density 64kg/m3
Project Solution Capability Graphic Design 3D Model Design Total Solution For Project Advantage Sound Insulation,Waterproof Moistureproof Fireproof Etc.
Thickness 50mm 75mm 80mm 100mm 125mm 150mm 200mm Keyword Glasswool Sandwich Panel
High Light

Wall Glasswool Sandwich Panel

,

Roof Glasswool Sandwich Panel

,

Fireproof foam sandwich panels

Leave a Message
Product Description

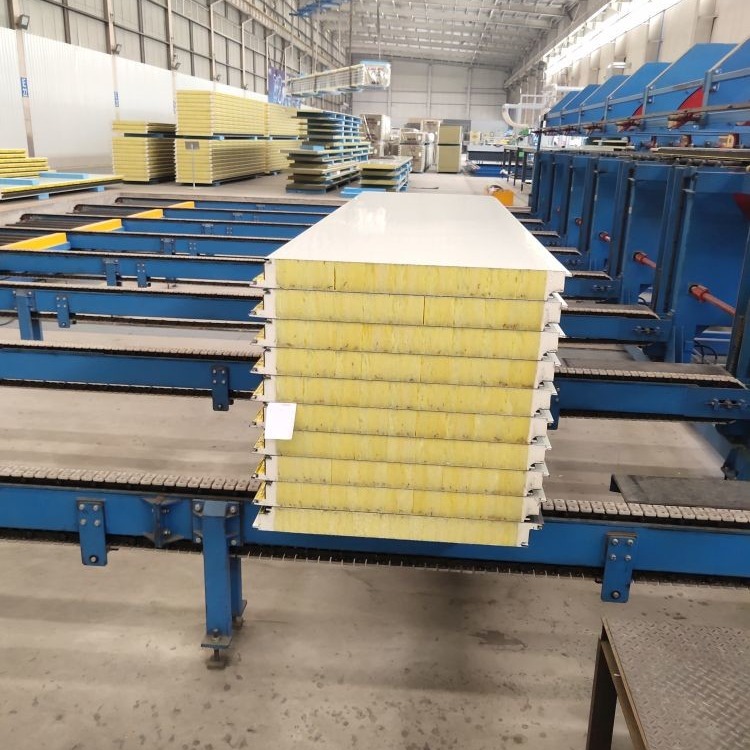

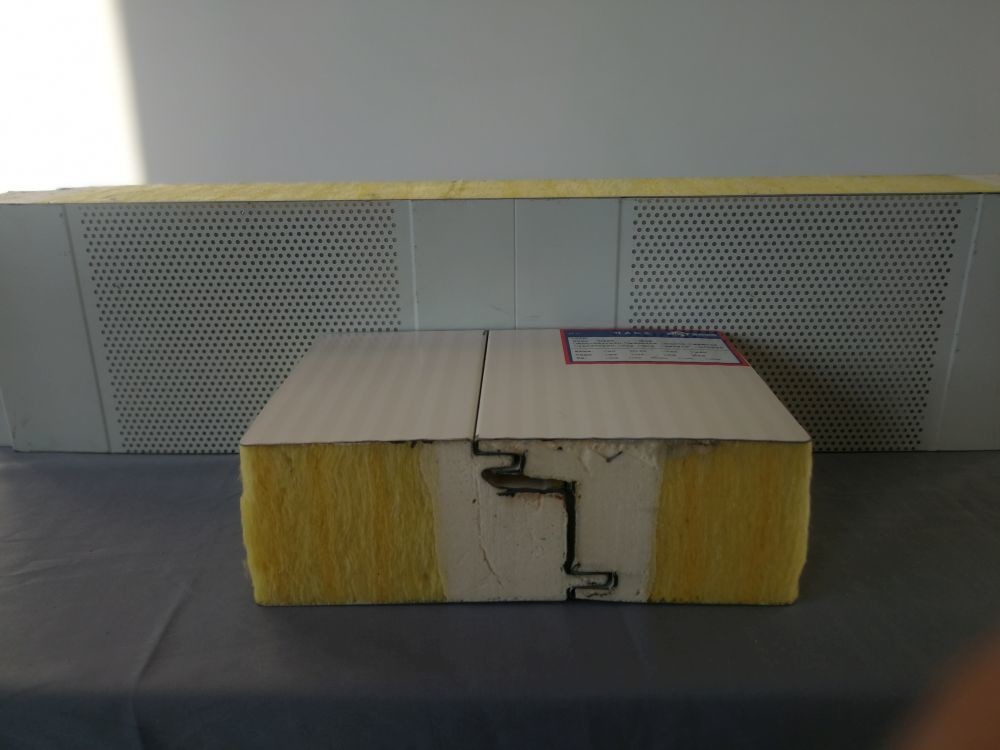

Fireproof Pu Sealing Fiberwool Glasswool Sandwich Panel For Wall Roof

Product Description:

Glasswool Sandwich Panel

The Glasswool Sandwich Panel is a modern, lightweight, fire-resistant and thermal insulation panel with a customized RAL surface treatment. It is made of fireproof glass wool and fire resistance glasswool acoustic material, with a density of 64kg/m3. It has excellent sound absorption, sound insulation, thermal insulation, fire resistance, and other performance. It is widely used in interior and exterior wall insulation, roof insulation, partition walls, and other applications. It can greatly reduce energy consumption, improve the safety and comfort of the building, and also improve the aesthetics of the building.

Features:

(1) Fire safety - Since the inner core material is made from non-flammable glass wool as the insulation material, it prevents fire from spreading. Thus, glasswool panel construction is suitable for fire areas because it does not generate harmful gasses during a fire.

(2) Thermal insulation - The glass fiber used in these panels are as thin as 4 to 6 microns and uniform in composition. It is made from glass sand with high-speed centrifugal force. Glasswool panels, therefore, give best-in-class thermal insulation effect with unique water- repellent treatment.

(3) Sound absorption effect - Glass wool has tiny air pockets that trap air. Sound needs air as a medium of traveling, which is thus restricted by the air pockets.

(4) Anti-corrosive effect - Glass wool is an inorganic product, therefore there is hardly any deformation or corrosion that stays for a long time. Glass wool can retain its original shape and has a really good ability to withstand shocks, pressures, or vibrations.

Technical Parameters:

Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.69 12.95 L(m) 3.74 3.23 2.86 2.57 2.23
70 0.47 14.50 L(m) 5.01 4.34 3.86 3.48 3.05
100 0.36 16.04 L(m) 6.21 5.32 4.73 4.28 3.75
125 0.34 17.06 L(m) 7.11 6.31 5.77 4.93 4.32
150 0.33 19.14 L(m) 8.00 6.94 6.18 5.58 4.89
200 0.30 22.78 L(m) 9.79 8.56 7.63 6.88 6.00



Applications:



Glass WOOL SANDWICH PANEL are applied as external walls and internal division walls, installed vertically or horizontally on single- or multi-span structure.

Industrial Buildings

Store Houses And Logistic Centres

Commercial Buildings And Offices

Food Industry Facilities

Agricultural Objects

Sport Halls

Support and Services:

Glasswool Sandwich Panel Technical Support and Service

We provide comprehensive technical support and service for Glasswool Sandwich Panel products, including:

  • Technical advice and assistance on the selection and installation of Glasswool Sandwich Panels.
  • Practical installation tips and information on the correct use of the product.
  • Scheduled maintenance and repair service.
  • Replacement parts in the event of wear and tear.
  • On-site technical support.

If you have any questions or require more information about our Glasswool Sandwich Panel products, please contact us anytime.

Packing and Shipping:

Glasswool Sandwich Panel packaging and shipping includes the following steps:

  • The glasswool sandwich panel is packed in a plastic film and placed on a eps pallet.
  • The wooden pallet is secured with steel bands.
  • The package is wrapped in plastic film and reinforced with steel box.
  • The package is placed in a metal container and secured with steel straps.
  • The metal container is loaded onto a truck or train for delivery.

FAQ:

Q1: What is the Brand Name of the Glasswool Sandwich Panel?

A1: The Brand Name of the Glasswool Sandwich Panel is BAODU.

Q2: What is the Model Number of the Glasswool Sandwich Panel?

A2: The Model Number of the Glasswool Sandwich Panel is Glasswool Sandwich Panel.

Q3: Where is the Place of Origin of the Glasswool Sandwich Panel?

A3: The Place of Origin of the Glasswool Sandwich Panel is Hebei,China.

Q4: What type of Certification does the Glasswool Sandwich Panel have?

A4: The Glasswool Sandwich Panel has CE Certification.

Q5: What is the minimum order quantity for the Glasswool Sandwich Panel?

A5: The minimum order quantity for the Glasswool Sandwich Panel is Discussible.
