Prefab Building Material Glasswool Sandwich Panel PIR PUR Soundproofing

  • Prefab Building Material Glasswool Sandwich Panel PIR PUR Soundproofing
  • Prefab Building Material Glasswool Sandwich Panel PIR PUR Soundproofing
  • Prefab Building Material Glasswool Sandwich Panel PIR PUR Soundproofing
  • Prefab Building Material Glasswool Sandwich Panel PIR PUR Soundproofing
Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Glasswool Sandwich Panel
Document Product Brochure PDF
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Building Material Thermal Insulation Pir Pu Pur Soundproofing GlasswoolSandwich Panel Color RAL
Material Glasswool Thickness 50mm 75mm 80mm 100mm 125mm 150mm 200mm
Warranty More Than 50 Years Density 64kg/m3
Length Customized Sample Free Sample
Highlight

Prefab Glasswool Sandwich Panel

,

PIR Glasswool Sandwich Panel

,

PUR prefab sandwich panels
Leave a Message
Product Description

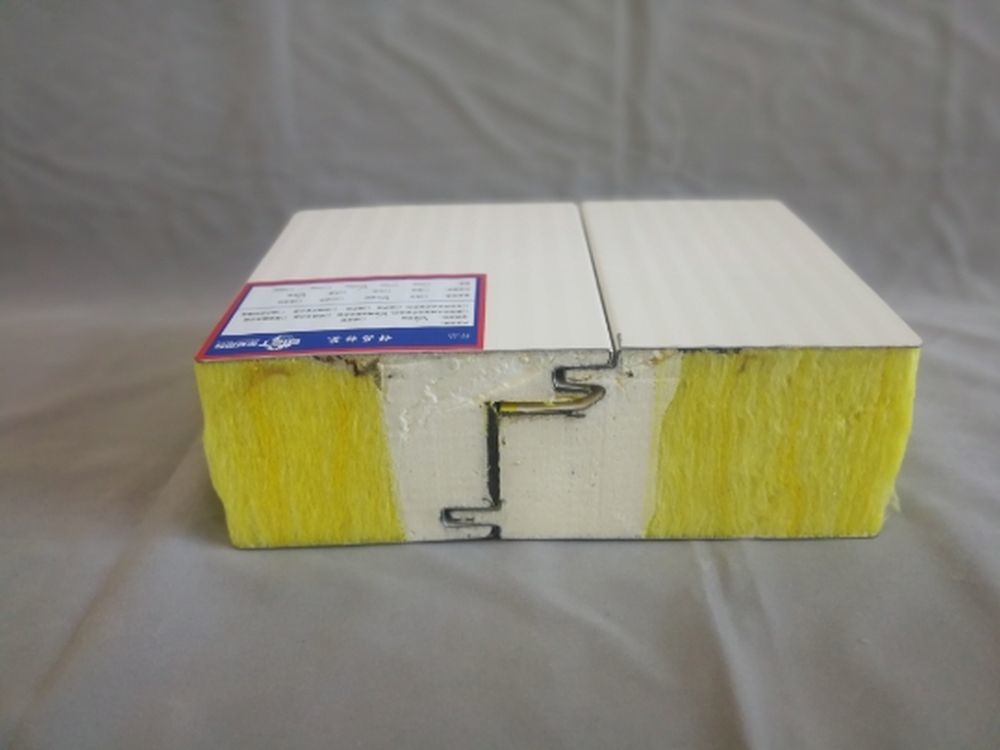

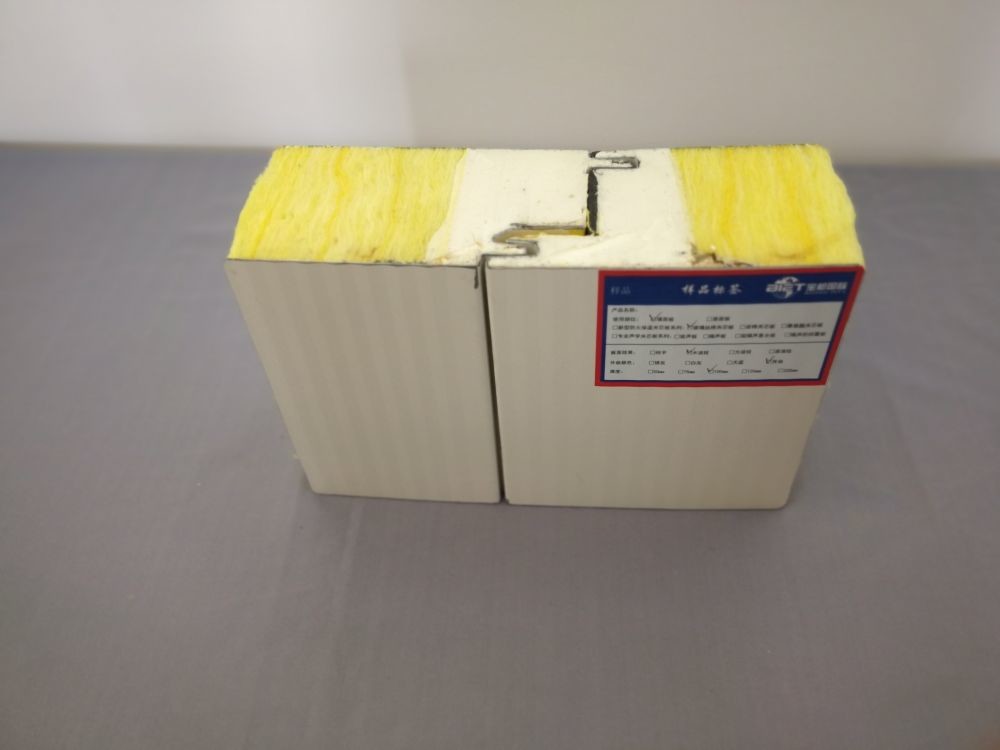

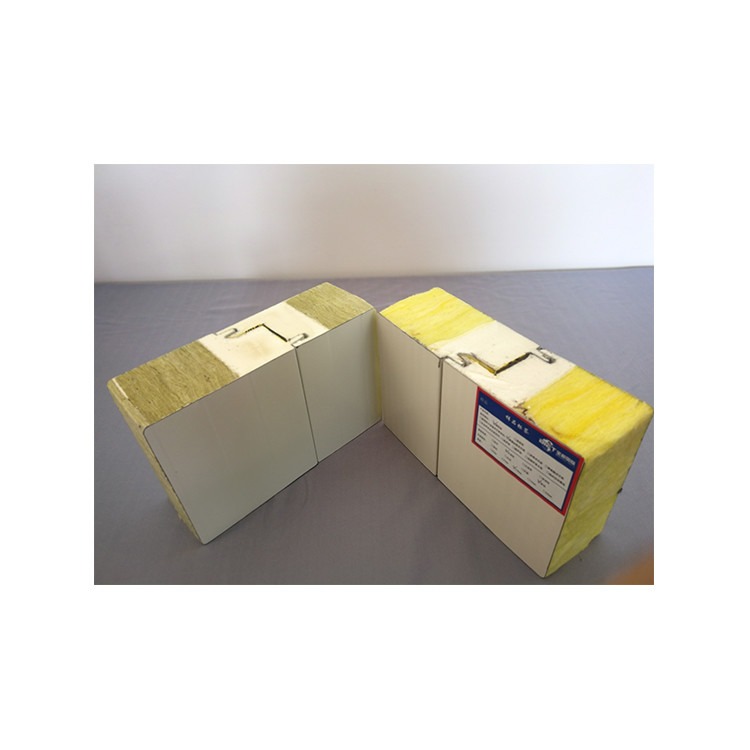

Building Material Thermal Insulation Pir Pu Pur Soundproofing GlasswoolSandwich Panel

Product Description:

BAODU glass wool sandwich panel can serve a secure application for building construction, sheds, prefabricated structures, domestic and also commercial structures. The following product attributes make BAODU the very best choice for glass wool sandwich panel distributor in China:

Adequate Insulation

Adequate insulation offers thermal & acoustic insulation properties.

Best alternative

cost-efficient alternative to conventional building masonry construction where there is a higher risk of fire.

Customizable

100% customized sizes available as per the customer requirement or building requirements.

Energy savings

Low thermal conductivity helps in higher energy savings and maintains a desired temperature.

Fire Resistance

The core material of Glasswool panels is inflammable and insulating. Thus it prevents flames from spreading and is a viable choice for fire-resistant constructions.

Zero Maintenance

Glasswool insulated sandwich panels does not requires painting, any kind of maintenance.

Technical Parameters:

Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.69 12.95 L(m) 3.74 3.23 2.86 2.57 2.23
70 0.47 14.50 L(m) 5.01 4.34 3.86 3.48 3.05
100 0.36 16.04 L(m) 6.21 5.32 4.73 4.28 3.75
125 0.34 17.06 L(m) 7.11 6.31 5.77 4.93 4.32
150 0.33 19.14 L(m) 8.00 6.94 6.18 5.58 4.89
200 0.30 22.78 L(m) 9.79 8.56 7.63 6.88 6.00


Applications:

Glass wool sandwich panels are widely used in fields of chemicals, medicine, factories, heavy industry machinery and equipment, construction, vehicles and aerospace, and are ideal materials for heat insulation, fire prevention and sound absorption.

Glasswool Sandwich Panel

Support and Services:

  • Glasswool Sandwich Panel Technical Support:
    • Installation guide
    • Maintenance guide
    • Troubleshooting guide
  • Glasswool Sandwich Panel Service:
    • 24/7 online customer service
    • On-site technical support
    • Free replacement and repair service

Packing and Shipping:

Glasswool Sandwich Panel Packaging and Shipping:

  • The glasswool sandwich panel is wrapped with plastic film and packed in steel box.
  • For long-distance transportation, the glasswool sandwich panel is securely fixed in the container, and a cushioning material is added between the panels and the container wall.
  • The glasswool sandwich panel is shipped by sea, air or train to the destination port or station.
