Prefabricated Fireproof Glasswool Sandwich Panel PU PIR Exterior Wall Roof Project Solution

  • Prefabricated Fireproof Glasswool Sandwich Panel PU PIR Exterior Wall Roof Project Solution
  • Prefabricated Fireproof Glasswool Sandwich Panel PU PIR Exterior Wall Roof Project Solution
Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Glasswool Sandwich Panel
Document Product Brochure PDF
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Project Solution Capability Graphic Design 3D Model Design Total Solution For Project Thickness 50mm 75mm 80mm 100mm 125mm 150mm 200mm
Panel Type Glasswool Sandwich Panel Advantage Sound Insulation,Waterproof Moistureproof Fireproof Etc.
Design Style Modern Length Customized
Color RAL Density 64kg/m3
Product Name Prefabricated Fireproof Pu Polyurethane Glasswool Sandwich Panel Exterior Wall Roof Project Solution Keyword Glasswool Sandwich Panel
Highlight

Prefabricated Glasswool Sandwich Panel

,

PU Glasswool Sandwich Panel

,

pu pir Panel
Leave a Message
Product Description

Prefabricated Fireproof Pu Polyurethane Glasswool Sandwich Panel Exterior Wall Roof Project Solution

Product Description:

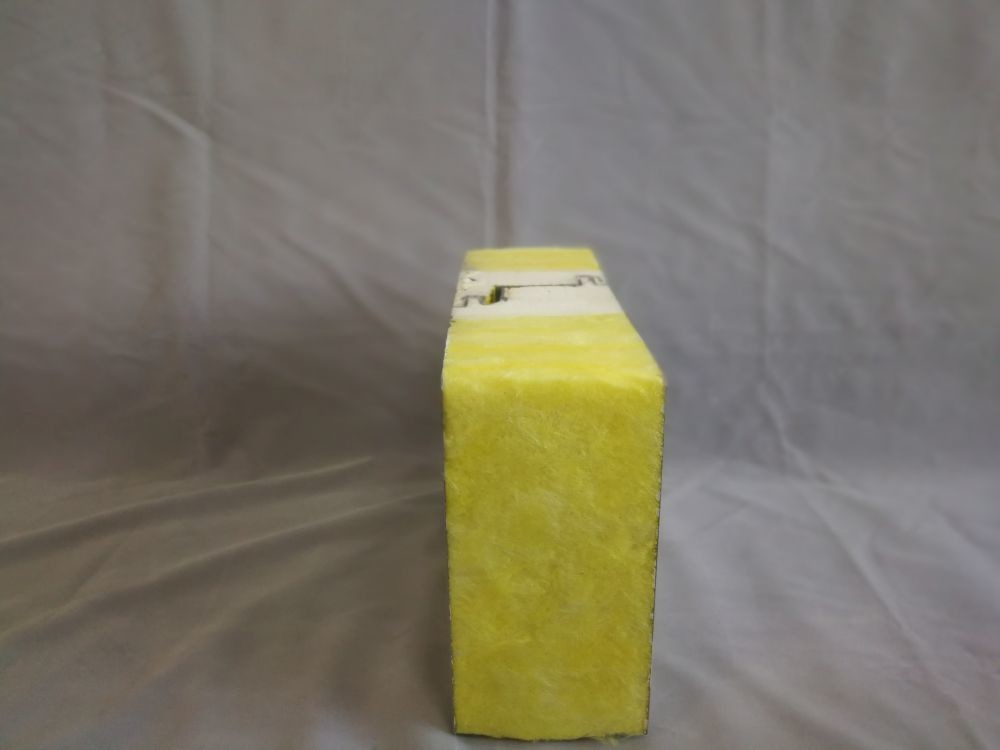

Glasswool Sandwich Panel – Fireproof, Acoustic, Lightweight and Thermal Insulation

Our Glasswool Sandwich Panel is the perfect combination of modern design and superior fireproof protection. It is made from fire resistance glasswool and is designed to provide excellent acoustic, light weight and thermal insulation properties. This panel is available in a wide variety of RAL colors, so you can customize your panel to match the interior of your home or business. Plus, we offer a warranty of more than 50 years on the panel, providing you with peace of mind.

Our Glasswool Sandwich Panel is also easy to install and maintain. It is a cost effective way of improving the thermal efficiency of your building. And we offer free samples, so you can get a better idea of how our panel will look in your home or business.

Do you want to enjoy the benefits of fireproof, acoustic, light weight and thermal insulation? Get our Glasswool Sandwich Panel today!

Features:

Heat insulation capability.

The heat insulation capability of the Glass wool sandwich panel depends on the specifications of the filling material.

Good fire performance.

Glass wool sandwich panel is fire rating of non-combustible A grade. Its shape, strength and material are hard to be changed in the fire, it can protects your valuable life and properties.

Sound insulation and Sound absorption capability.

Sound insulation is a physical value what shows the rate of sound energy decrease on the one side of a surface (e.g. wall or roof cladding), while the noise source is on the other side.

Sound absorption values of panels can be increased by applying perforated internal armouring and mineral wool insulation core.



Please feel fee to contact us if you have any question.

Technical Parameters:

Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.69 12.95 L(m) 3.74 3.23 2.86 2.57 2.23
70 0.47 14.50 L(m) 5.01 4.34 3.86 3.48 3.05
100 0.36 16.04 L(m) 6.21 5.32 4.73 4.28 3.75
125 0.34 17.06 L(m) 7.11 6.31 5.77 4.93 4.32
150 0.33 19.14 L(m) 8.00 6.94 6.18 5.58 4.89
200 0.30 22.78 L(m) 9.79 8.56 7.63 6.88 6.00


Applications:

Glasswool Sandwich Panel by BAODU

BAODU’s Glasswool Sandwich Panel is made of fireproof glass wool sandwich panel from Hebei,China and is certified with CE. The minimum order quantity is discussible and the price is reasonable. In general, for steel structure, we use the steel frame packing to keep goods not to be broken. For sandwich panel and color steel sheet, we use plastic packing. If the clients need special packing will according to their requirements. Delivery time is 15days and payment terms are available in L/C, D/A, D/P, T/T, Western Union, MoneyGram. We are able to supply 5000 Square Meters per day. The warranty is More Than 50 Years and Free Sample is available. The surface treatment can be Customized and the advantages of this product includes Sound Insulation, Waterproof Moistureproof Fireproof Etc. After-sale service includes Online Technical Support, Onsite Installation.

Support and Services:

Glasswool Sandwich Panel Technical Support & Services

At our company, we provide comprehensive technical support and services to ensure your Glasswool Sandwich Panel is installed correctly and that you get the most out of it. Our services include:

  • Installation advice and assistance
  • Maintenance and repair services
  • Troubleshooting and technical support
  • Replacement parts and accessories
  • Training and education

If you have any questions or concerns about your Glasswool Sandwich Panel, please don't hesitate to contact us. We are dedicated to providing you with the best possible service and support.

Packing and Shipping:

Packaging and Shipping for Glasswool Sandwich Panel

Glasswool sandwich panel is usually shipped in steel pallet with polyethylene film wrapping. To ensure the panels are protected from moisture and damage during the shipping process, they should be stored in a dry, ventilated area and away from direct sunlight.

The pallet should be placed on a flat, solid surface to prevent the panels from slipping and moving during transportation. All corners of the pallet should be protected with plastic or cardboard corners. The pallet should also be securely fastened with plastic straps and/or shrink wrap.

The panels should be loaded onto the pallet with the labels facing outwards. This will help ensure that the labels are visible and can be easily read.

The total weight of the pallet should not exceed 1,500 kgs. It is important to ensure that the pallet is properly balanced and the weight is evenly distributed. This will help to prevent the panels from shifting during transit.
