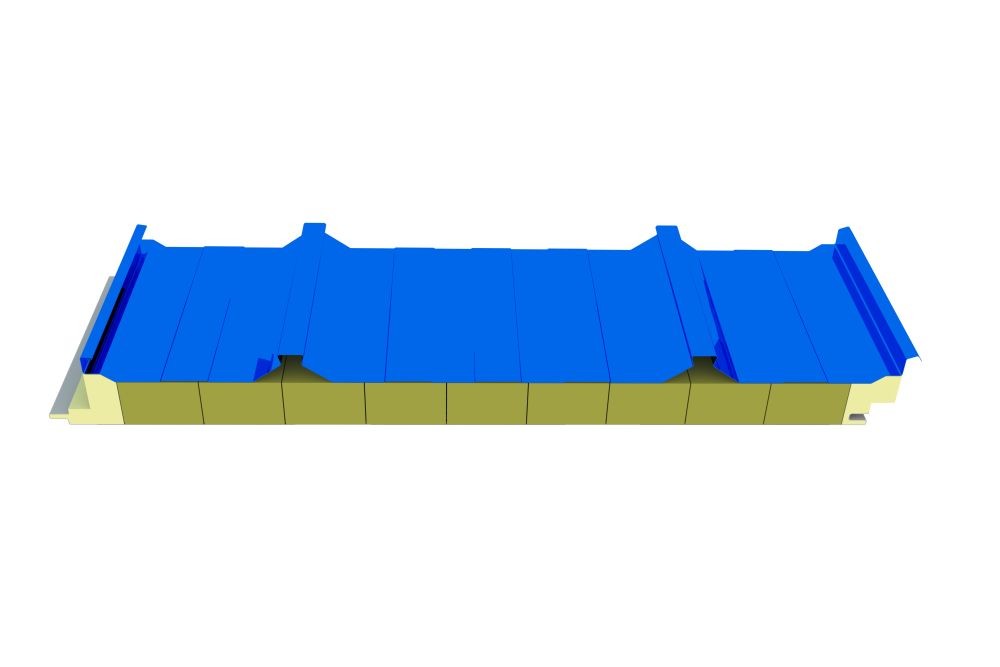

50mm Rockwool Fire Resistant Sandwich Panels Cold Storage Thermal Insulation

  • 50mm Rockwool Fire Resistant Sandwich Panels Cold Storage Thermal Insulation
  • 50mm Rockwool Fire Resistant Sandwich Panels Cold Storage Thermal Insulation
Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Rockwool Sandwich Panel
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fireproof Rockwool Sandwich Panel Light Weight Thermal Insulation Energy Efficiency Steel Thickness 0.4mm-0.8mm
Density 100kg/m3 Heat-insulation Yes
Type Rockwool Sandwich Panel With PU Edge After-sale Service Online Technical Support, Onsite Installation
Core Material Rockwool Board Design Style Modern
Waterproof Yes Thickness 50/75/100/150/200mm
High Light

Rockwool fire resistant sandwich panels

,

50mm fire resistant sandwich panels

,

Rockwool sandwich panel cold storage
Leave a Message
Product Description

Fireproof Rockwool Sandwich Panel Light Weight Thermal Insulation Energy Efficiency

Product Description:

Rockwool Sandwich panel is an insulated panel that provides superior thermal and acoustic insulation. It is composed of a core material of rockwool board, steel sheet, and a surface coating. The rockwool core can be customized in thicknesses of 50mm, 75mm, 80mm, 100mm, 125mm, 150mm, and 200mm, and the steel sheet thickness can range from 0.4mm to 0.8mm, with a density of 100kg/m3. This rockwool sandwich panel is ideal for applications requiring superior insulation performance, such as roof and wall insulation, soundproofing, and fire prevention. Its fireproof, waterproof, and soundproof qualities make it an excellent choice for a wide range of applications.



Features:

1. Good Thermal Insulation, an energy saving material

2. Good Fire Resistance: B1 grade for total panel

3. Special Connection Design: Screw concealed connection

4. Graceful Finish: embossment, small wave, big rib and flat finish

5. Advance Machine: The longest main machine

6. Raw Material: Only quality steel is selected

7. Strict Quality Control:CE

8. Wide Usage: Used as roof and wall in workshop and warehouse

Applications:

1.Industrial Facilities

2.Commercial Building

3.Social Construct

4.Power Plants

Technical Parameters:

Technical parameters of BAODU new model fireproof sandwich panel
Allowable vertical load and thermal conductivity of BAODU new model fireproof rockwool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.75 15.53 L(m) 3.66 3.13 2.75 2.46 2.12
70 0.53 18.37 L(m) 4.90 4.22 3.73 3.35 2.91
100 0.41 21.21 L(m) 5.99 5.17 4.58 4.12 3.59
125 0.36 24.05 L(m) 6.91 5.96 5.28 4.79 4.14
150 0.31 26.88 L(m) 7.82 6.75 5.98 5.37 4.68
200 0.23 22.78 L(m) 9.65 8.33 7.38 6.62 5.77
Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.69 12.95 L(m) 3.74 3.23 2.86 2.57 2.23
70 0.47 14.50 L(m) 5.01 4.34 3.86 3.48 3.05
100 0.36 16.04 L(m) 6.21 5.32 4.73 4.28 3.75
125 0.34 17.06 L(m) 7.11 6.31 5.77 4.93 4.32
150 0.33 19.14 L(m) 8.00 6.94 6.18 5.58 4.89
200 0.30 22.78 L(m) 9.79 8.56 7.63 6.88 6.00


Customization:

Rockwool Sandwich Panel is an insulated panel system designed for use in a variety of applications, including roofing, walling and cladding. It is made from high-quality rockwool insulation and is designed to provide superior thermal and acoustic performance. It is a lightweight, easy-to-install solution that is highly durable, waterproof and soundproof. It is an ideal choice for both residential and commercial projects.

Support and Services:

Rockwool Sandwich Panel Technical Support and Service:

At Rockwool, we are committed to providing quality technical support and service for our Rockwool Sandwich Panel solutions. Our team of experienced professionals can help you with any questions or issues you may have about our products. We provide a variety of services including:

  • Providing technical advice and recommendations to ensure the best performance for your application
  • Designing and engineering custom solutions to meet your specific requirements
  • Performing installation and maintenance services
  • Providing ongoing training and support
  • Offering a comprehensive warranty program

We are dedicated to providing excellent customer service and support. If you have any questions or need assistance, please do not hesitate to contact us.



Packing and Shipping:

Packaging and Shipping for Rockwool Sandwich Panel

Rockwool Sandwich Panels are generally packaged and shipped in bundles. The bundle consists of the panel, accessories, and plastic wraps. The bundle is then secured with steel straps to ensure the panels are securely held together.

The bundles are then placed on a pallet for shipping. The pallet is shrink-wrapped to ensure the panels are securely fastened to the pallet. The pallet is then loaded onto a truck or container for transport.
