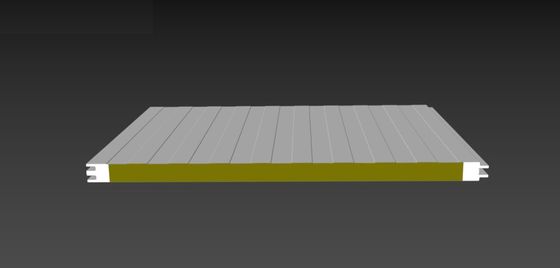

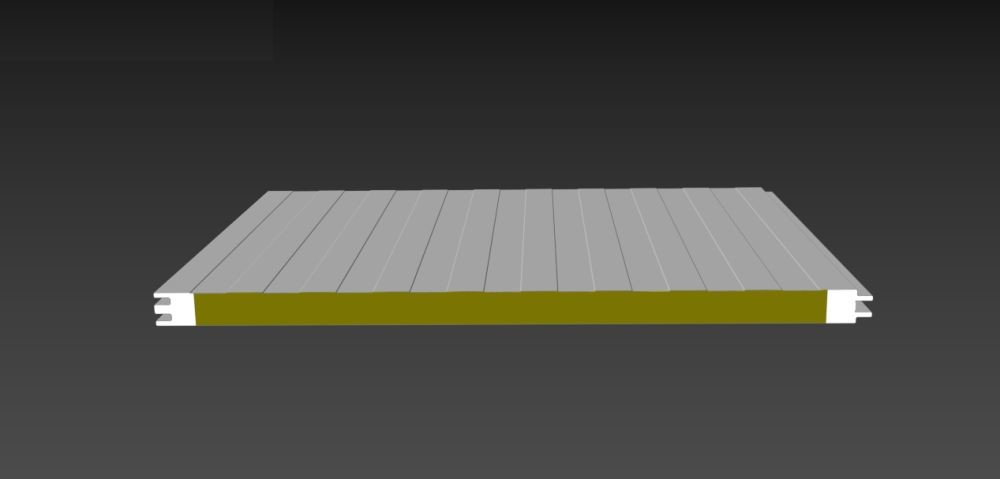

Prefabricated Heat Insulated Rockwool Sandwich Panel 40mm Exterior Wall

  • Prefabricated Heat Insulated Rockwool Sandwich Panel 40mm Exterior Wall
  • Prefabricated Heat Insulated Rockwool Sandwich Panel 40mm Exterior Wall
Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Rockwool Sandwich Panel
Document Product Brochure PDF
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Prefabricated Outdoor Office Heat Insulated Construction Insulation Rockwool Sandwich Panel Panel Exterior Wall Type Rockwool Sandwich Panel With PU Edge
Steel Thickness 0.4mm-0.8mm Soundproof Yes
Width 1000mm After-sale Service Online Technical Support, Onsite Installation
Advantage Superior Fireproof-insulation Fire Proof Light Weight&Easy To Install Fireproof Innovative Technology Length Customized
Material Rockwool Color Customer's Require
Highlight

Prefabricated Rockwool Sandwich Panel

,

40mm Rockwool Sandwich Panel

,

Wall 40mm sandwich panel
Leave a Message
Product Description

Prefabricated Outdoor Office Heat Insulated Construction Insulation Rockwool Sandwich Panel Panel Exterior Wall

Product Description:

Rockwool Sandwich Panel is an insulated panel fabricated with a modern design style, and is perfect for wall building, warehouse roofing, wall and roof insulation. It is made from rock wool sandwiched between two layers of steel sheets, and is connected by a PU edge. This product is available in a range of custom lengths and can meet reasonable MOQ requirements. It has excellent heat and sound insulation performance, making it the ideal choice for construction projects. Its lightweight design allows for easy installation and ease of use, making it an ideal option for a variety of projects.

Features:

Fire resistance

Sound insulation

High coefficient of the thermal insulation

Fast speed of the construction

Energy efficiency - that enables us to apply cost-effective solutions while keeping the preferred temperature level in the building

Applications:

BAODU Rockwool Sandwich Panel is an insulated panel which can be used to build walls, warehouses and roofing walls. The panels are fireproof, energy saving and soundproof. The insulation panels are also waterproof and lightweight. The panel has a density of 100kg/m3 and is customisable in length. It is certified with CE and there is a minimum order quantity.

Technical Parameters:



Technical parameters of BAODU new model fireproof sandwich panel
Allowable vertical load and thermal conductivity of BAODU new model fireproof rockwool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.75 15.53 L(m) 3.66 3.13 2.75 2.46 2.12
70 0.53 18.37 L(m) 4.90 4.22 3.73 3.35 2.91
100 0.41 21.21 L(m) 5.99 5.17 4.58 4.12 3.59
125 0.36 24.05 L(m) 6.91 5.96 5.28 4.79 4.14
150 0.31 26.88 L(m) 7.82 6.75 5.98 5.37 4.68
200 0.23 22.78 L(m) 9.65 8.33 7.38 6.62 5.77
Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.69 12.95 L(m) 3.74 3.23 2.86 2.57 2.23
70 0.47 14.50 L(m) 5.01 4.34 3.86 3.48 3.05
100 0.36 16.04 L(m) 6.21 5.32 4.73 4.28 3.75
125 0.34 17.06 L(m) 7.11 6.31 5.77 4.93 4.32
150 0.33 19.14 L(m) 8.00 6.94 6.18 5.58 4.89
200 0.30 22.78 L(m) 9.79 8.56 7.63 6.88 6.00

Customization:

Our Rockwool Sandwich Panel offers many advantages, such as excellent thermal insulation, strong fire resistance, and high soundproofing performance. It also has a low density and excellent sound absorption. Moreover, the polyurethane foam provides superior air-tightness and water-tightness, making it a great choice for insulation and moisture control. The panel features a unique design which allows for easy installation, and it is durable and flexible, making it perfect for the most demanding applications.

At BAODU, we specialize in providing customized Rockwool Sandwich Panels that meet your specific needs. Our panels are available in a variety of thicknesses, colors, and steel thicknesses, so you can be sure you will find the right solution for your application. We also offer high-quality heat and sound insulation, ensuring your projects are safe and energy-efficient.

Support and Services:

We offer technical support and services for Rockwool Sandwich Panel. Our technical staff can provide detailed instructions and professional advice on the installation and use of our product. We also provide a comprehensive after-sales service, including spare parts and maintenance. In addition, our team is always available to answer any questions and help resolve any issues that may arise.

Packing and Shipping:

The Rockwool Sandwich Panel is packaged for safe transportation and shipped with the following guidelines:

  • The panels are packed in steel boxes suitable for the size and weight of the product.
  • The panels are secured with foam or other protective materials to prevent damage during transport.
  • The packages are labeled with product information and a barcode.
  • The packages are sealed to prevent tampering.
  • The packages are shipped with a reliable carrier.
