CE Certified Rockwool Sandwich Panel 100mm 200mm For Outdoor Office

  • CE Certified Rockwool Sandwich Panel 100mm 200mm For Outdoor Office
  • CE Certified Rockwool Sandwich Panel 100mm 200mm For Outdoor Office
Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Rockwool Sandwich Panel
Document Product Brochure PDF
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name CE Certified Rockwool Sandwich Panel 50mm 200mm Thickness For Construction Insulation Outdoor Office Usage Material Rockwool
Usage Construction Insulation Shop Outdoor Office Thickness 50mm 75mm 80mm 100mm 125mm 150mm 200mm
Core Material Rockwool Board Heat-insulation Yes
MOQ Reasonable Color Customized
Certificate CE Density 100-120kg/m3
Highlight

100mm Rockwool Sandwich Panel

,

200mm Rockwool Sandwich Panel

,

Outdoor sandwich panel 100mm
Leave a Message
Product Description

CE Certified Rockwool Sandwich Panel 50mm 200mm Thickness For Construction Insulation Outdoor Office Usage

Product Description:

Rockwool Sandwich Panel is an insulated panel composed of two metal sheets and a core of rock wool. With steel thickness ranging from 0.4mm to 0.8mm, it is available in customized length as well as thickness of 50mm, 75mm, 80mm, 100mm, 125mm, 150mm and 200mm. To meet the needs of different customers, the MOQ is reasonable and the product is certified with CE. It is a great choice for construction and insulation, offering excellent performance in terms of fire safety, sound insulation, thermal insulation and energy saving.

Features:

1.The PU sealing not only can strength the connection but also can make sure the connection be more smooth. And Pu sealing also can reduce the thermal bridging situation in extremely cold area.

2.The hidden screw facade can prevent the rain or chemical corrosion so that improve the sandwich panel life , which also can make it more beautiful.

3.Dislocation double mortise and tenon joint can make sure the sandwich panel connection be more fasten and which also can prevent the rain goes back to the interior.

4.Double steel plates are used in the connection part which can improve sandwich panel wind-proof function without any nails.

5.Sponge bar are used in the connection part which can provide better airtightness and free from thermal bridging

Applications:

BAODU Rockwool Sandwich Panel is a perfect choice for wall and roof insulation. It is made of two layers of steel sheets, insulated with rock wool that offers excellent thermal and acoustic insulation. It is CE certified, with reasonable price, width of 1000mm and various colors available. It is also highly durable and has a density of 100kg/m3. The panel is packaged with steel frame to avoid damage, and it can be delivered within 15 days after order. Besides, L/C, D/A, D/P, T/T, Western Union, MoneyGram payment terms are available, and after-sale service including online technical support and onsite installation are provided. It is a great choice for insulated walls and roofs, and it can be used in various places such as commercial buildings, industrial plants, sports halls, warehouses, etc.

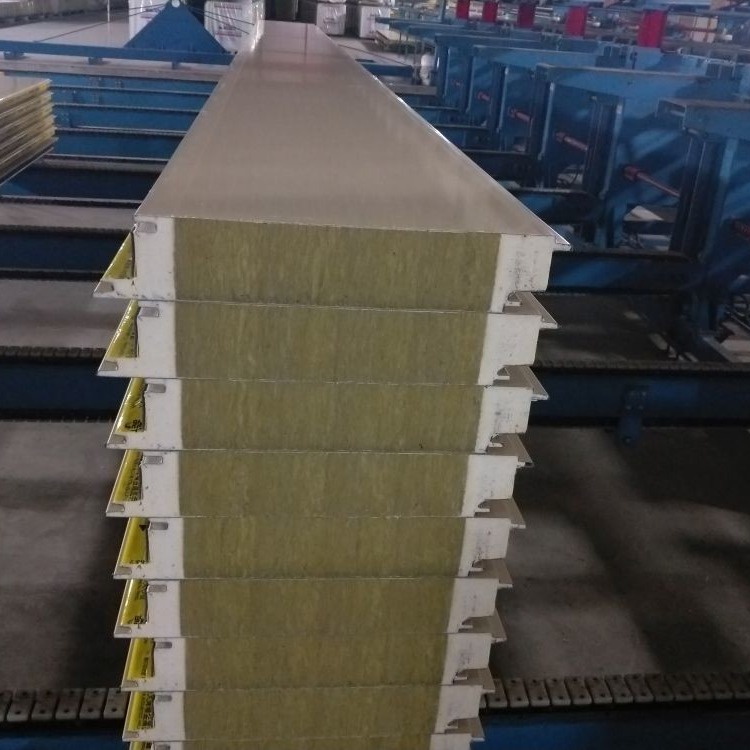

CE Certified Rockwool Sandwich Panel 100mm 200mm For Outdoor Office 0CE Certified Rockwool Sandwich Panel 100mm 200mm For Outdoor Office 1

Technical Parameters:

Technical parameters of BAODU new model fireproof sandwich panel
Allowable vertical load and thermal conductivity of BAODU new model fireproof rockwool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.75 15.53 L(m) 3.66 3.13 2.75 2.46 2.12
70 0.53 18.37 L(m) 4.90 4.22 3.73 3.35 2.91
100 0.41 21.21 L(m) 5.99 5.17 4.58 4.12 3.59
125 0.36 24.05 L(m) 6.91 5.96 5.28 4.79 4.14
150 0.31 26.88 L(m) 7.82 6.75 5.98 5.37 4.68
200 0.23 22.78 L(m) 9.65 8.33 7.38 6.62 5.77
Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.69 12.95 L(m) 3.74 3.23 2.86 2.57 2.23
70 0.47 14.50 L(m) 5.01 4.34 3.86 3.48 3.05
100 0.36 16.04 L(m) 6.21 5.32 4.73 4.28 3.75
125 0.34 17.06 L(m) 7.11 6.31 5.77 4.93 4.32
150 0.33 19.14 L(m) 8.00 6.94 6.18 5.58 4.89
200 0.30 22.78 L(m) 9.79 8.56 7.63 6.88 6.00

Support and Services:

Rockwool Sandwich Panel provides technical support and services to its customers. The company offers a wide range of services, including installation, maintenance, repairs, and warranty. The company's technical support team is available 24/7 to answer any questions customers may have about the product. The team is also available to provide troubleshooting assistance and advice on how to maximize the efficiency and performance of the panel. Additionally, Rockwool Sandwich Panel offers a warranty to ensure the highest quality of the product.

Packing and Shipping:

CE Certified Rockwool Sandwich Panel 100mm 200mm For Outdoor Office 2CE Certified Rockwool Sandwich Panel 100mm 200mm For Outdoor Office 3

Project Case:

1. Quality: imported equipment from Germany and Switzerland, professional workers who have been engaged in more than ten years, have their own research and development department, and fully meet the use standards of various countries.

2. Customized service: We arrange special person to connect according to customer needs, one-to-one service.

3. Technical support:Activity room: We provide online guidance and installation services by dedicated personnel, as well as after-sales team service 24/7.Workshop: We have nearly 50 professional engineers who can go abroad to provide technical support and guidance until all problems are solved for our customers.

4. International trade operation: We have been focusing on international trade in the construction industry for more than ten years and have accumulated various experiences from different customers in different countries. So we can keep our operations up to date with our customers and new rules.Helps in customs clearance and saves cost and time for our customers.
