Steel Foam Glasswool Sandwich Panel Exterior Wall Roof 50mm-200mm RAL Color

Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Glasswool Sandwich Panel
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Foam Glasswool Sandwich Panel Steel Exterior Wall Roof Thickness 50mm-200mm RAL Color Density 64kg/m3
Design Style Modern Thickness 50mm-200mm
Warranty More Than 50 Years Advantage Waterproof Moistureproof Fireproof Etc.
Material Glasswool Project Solution Capability Graphic Design 3D Model Design Total Solution For Project
Length Customized Width The Effective Width Is 1000
High Light

RAL Glasswool Sandwich Panel

,

steel Glasswool Sandwich Panel

,

50mm steel sandwich panel

Leave a Message
Product Description

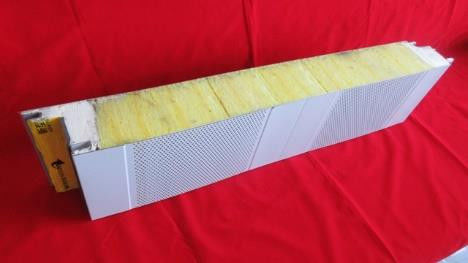

Foam Glasswool Sandwich Panel Steel Exterior Wall Roof Thickness 50mm-200mm RAL Color

Product Description:

Our Fire Resistance Glasswool Acoustic Light Weight Thermal Insulation Sandwich Panel is ideal for construction insulation. It is made of fireproof glass wool and is available in various thicknesses ranging from 50mm to 200mm. The color is customizable to suit your needs. It is a very light weight product, yet offers superior thermal insulation and excellent acoustic properties. It is also fire resistant, which makes it a highly safe option for insulation. Moreover, it is easy to install and is extremely durable, ensuring long-term performance.

Benefits:

The PIR/PUR double-sided sealing of glass wool outer wall panels produced by baodu can be used for horizontal or vertical installation of external walls. The product has the following advantages:

(1) Unique plug interface design, stronger resistance to negative wind pressure;

(2) Polyurethane side seals on both sides block the water absorption path of the core material and prolong the service life;

(3) Good fire performance, fire class: Class A non-combustible;

(4) Green and environmental protection, no formaldehyde;

Applications:

1.Industrial Facilities

2.Commercial Building

3.Social Construct

4.Power Plants

Technical Parameters:

Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.69 12.95 L(m) 3.74 3.23 2.86 2.57 2.23
70 0.47 14.50 L(m) 5.01 4.34 3.86 3.48 3.05
100 0.36 16.04 L(m) 6.21 5.32 4.73 4.28 3.75
125 0.34 17.06 L(m) 7.11 6.31 5.77 4.93 4.32
150 0.33 19.14 L(m) 8.00 6.94 6.18 5.58 4.89
200 0.30 22.78 L(m) 9.79 8.56 7.63 6.88 6.00

Support and Services:

Technical Support and Service for Glasswool Sandwich Panel

We provide comprehensive technical support and services for Glasswool Sandwich Panel. Our experienced technical team is always available to provide the necessary advice and assistance so you can get the most out of this product.

We are committed to providing the highest quality customer service, with timely response times, knowledgeable and friendly staff, and a commitment to providing solutions that meet your specific needs. We also offer access to our resources and expertise to ensure you have all the information you need to make the best use of the product.

We are continuously improving our technical support and services for Glasswool Sandwich Panel, so you can be sure that you are getting the best possible advice and assistance.

Packing and Shipping:

Steel Foam Glasswool Sandwich Panel Exterior Wall Roof 50mm-200mm RAL Color 0Steel Foam Glasswool Sandwich Panel Exterior Wall Roof 50mm-200mm RAL Color 1

Project Case

1. Quality: imported equipment from Germany and Switzerland, professional workers who have been engaged in more than ten years, have their own research and development department, and fully meet the use standards of various countries.

2. Customized service: We arrange special person to connect according to customer needs, one-to-one service.

3. Technical support:Activity room: We provide online guidance and installation services by dedicated personnel, as well as after-sales team service 24/7.Workshop: We have nearly 50 professional engineers who can go abroad to provide technical support and guidance until all problems are solved for our customers.

4. International trade operation: We have been focusing on international trade in the construction industry for more than ten years and have accumulated various experiences from different customers in different countries. So we can keep our operations up to date with our customers and new rules.Helps in customs clearance and saves cost and time for our customers.

Steel Foam Glasswool Sandwich Panel Exterior Wall Roof 50mm-200mm RAL Color 2Steel Foam Glasswool Sandwich Panel Exterior Wall Roof 50mm-200mm RAL Color 3Steel Foam Glasswool Sandwich Panel Exterior Wall Roof 50mm-200mm RAL Color 4
