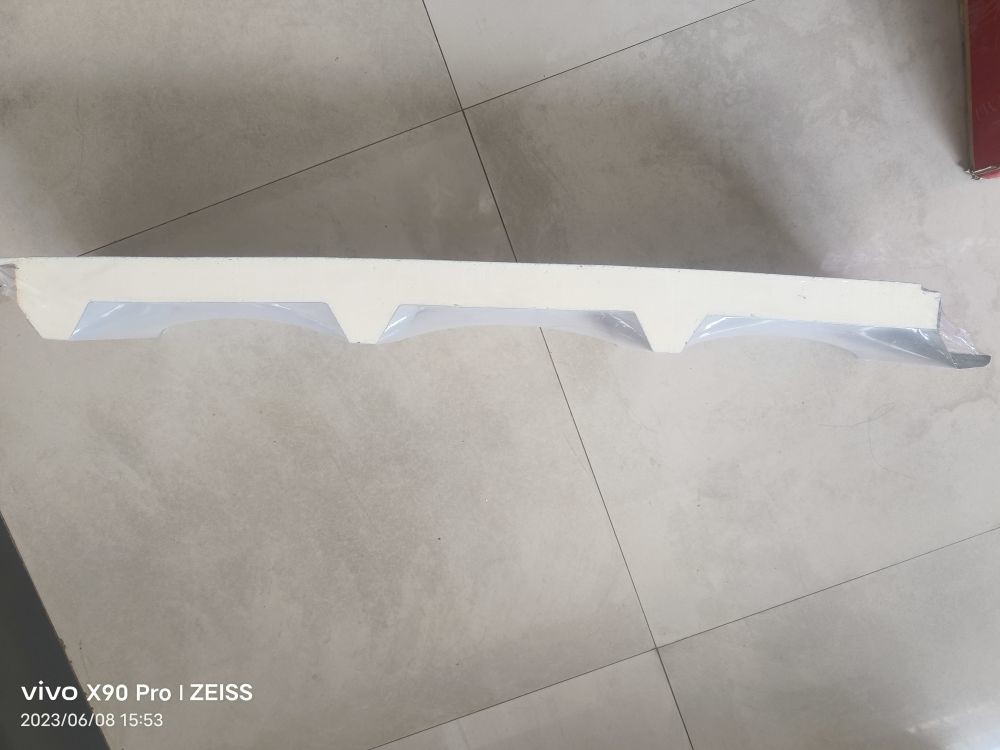

Moistureproof Polyurethane PUR Sandwich Panel Warehouse Customized

  • Moistureproof Polyurethane PUR Sandwich Panel Warehouse Customized
  • Moistureproof Polyurethane PUR Sandwich Panel Warehouse Customized
Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Polyurethane Sandwich Panel
Document Product Brochure PDF
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Waterproof PU Moistureproof Roof Wall Polyurethane Sandwich Panel Customized Surface Steel Thinckness 0.4mm-0.8mm
Heat Insulation Yes Density 40-42kg/m3
Surface Customized Structure Sandwich Panel
Moistureproof Yes Length Customized
Width 1000mm Keyword Polyurethane Sandwich Panel
Highlight

Moistureproof PUR Sandwich Panel

,

Customized PUR Sandwich Panel

,

Customized sandwich panel warehouse
Leave a Message
Product Description

Waterproof PU Moistureproof Roof Wall Polyurethane Sandwich Panel Customized Surface

Product Description:

Polyurethane Sandwich Panel is a kind of modern design wall panel, with the advantages of reasonable price, light weight and good heat insulation performance. It is composed of two steel plates with thickness of 0.4mm-0.8mm and a polyurethane insulation core. The thickness of the panel can be customized from 50mm to 200mm, and other sizes are also available. It is an ideal choice for wall and roof panel of different industries. Pu insulation polyurethane sandwich panel and polyurethane sandwich wall roof panel are the most popular products in the sandwich panel industry.

Features:

Strong sound insualtion

Waterproof and moisture-proof

Class A fire protection

Heat preservation

Applications:

Due to the advantages as heat and sound insulation, high load capacity, light weight ,quick movement and easy to install, PU Sandwich Panel are procured with the best prices and used in the buildings whose load-bearing system is of steel and prefabricated concrete, such as industrial buildings, military buildings, social buildings, agricultural buildings, sports facilities, construction sites, silos, hypermarkets, shopping malls, cold storage depots and marketplaces.

Technical Parameters:

Allowable vertical load and thermal performance of BAODU polyurethane sandwich wall
panel (allowable deflection f≤L/200)
S(mm) W/m2k G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.31 10.06 L(m) 3.52 3.04 2.69 2.42 2.11
75 0.21 11.06 L(m) 4.71 4.09 3.64 3.29 2.89
100 0.19 12.05 L(m) 5.76 5.02 4.47 4.05 3.56
120 0.16 12.84 L(m) 6.53 5.68 5.07 4.60 4.04
150 0.11 14.04 L(m) 7.56 6.58 5.87 5.32 4.68
Note:0.5mm outer steel sheet and 0.4mm inner steel
Allowable Span and Thermal Conductivity of BAODU Polyurethane Roof Sandwich
Panel(allowable deformation f≤L/240)
S(mm) W/m2k G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
30 0.32 9.32 L(m) 2.60 2.30 2.08 1.91 1.72
50 0.31 10.15 L(m) 3.59 3.17 2.85 2.61 2.33
75 0.21 11.18 L(m) 4.64 4.07 3.66 3.34 2.96
100 0.19 12.22 L(m) 5.57 4.88 4.38 3.99 3.53
120 0.16 13.05 L(m) 6.28 5.49 4.92 4.48 3.97
150 0.11 14.3 L(m) 7.30 6.39 5.73 5.22 4.62
Note:0.5mm outer steel sheet and 0.4mm inner steel

Support and Services:

Technical Support and Service for Polyurethane Sandwich Panel

We provide comprehensive technical support and service for Polyurethane Sandwich Panel. Our services include:

  • Providing technical advice and support on the use and application of the products.
  • Providing after-sales technical services and maintenance.
  • Replacing or repairing any defective parts.
  • Providing technical training and on-site installation.
  • Providing quality assurance services.
  • Providing product updates and upgrades.

We are committed to providing the highest quality service and support for our customers. If you have any questions or need any assistance, please don't hesitate to contact us.

Packing and Shipping:

Moistureproof Polyurethane PUR Sandwich Panel Warehouse Customized 0

FAQ:

Q1. What about your price?

A1. We have our own factory so that we can provide the best price for you

Q2. Where is your factory?

A2. Our factory is located in Hebei Yongqin where is only take one hour from Beijing.

Q3. How is your production capacity?

A3. We have two steel structure production lines and three sandwich panel production lines. All the equipment imported from Germany.

Q4.What is your advantages.

A4. As a high technology company in the construction material industry, we have our own professors team which has more than 10 people in Beijing related institution. And we also have the strict quality control in our production lines.

Q5. What is your payment term and delivery time?

A5. We accept the T/T or L/C. And the Ali trade assurance also be acceptable. As for the delivery time, we need make the production plan for each order. Usually , it will take 15- 30 days after we confirm the order

Q6. How about the sample order?

A6. We provide free samples , but you need pay the freight for it.

Q7. How is your After-sales policy.

A7. Baodu wants to provide the best products and service to each client. We will provide the online after-sales training. If necessary , your can visit us in our factory.

.
