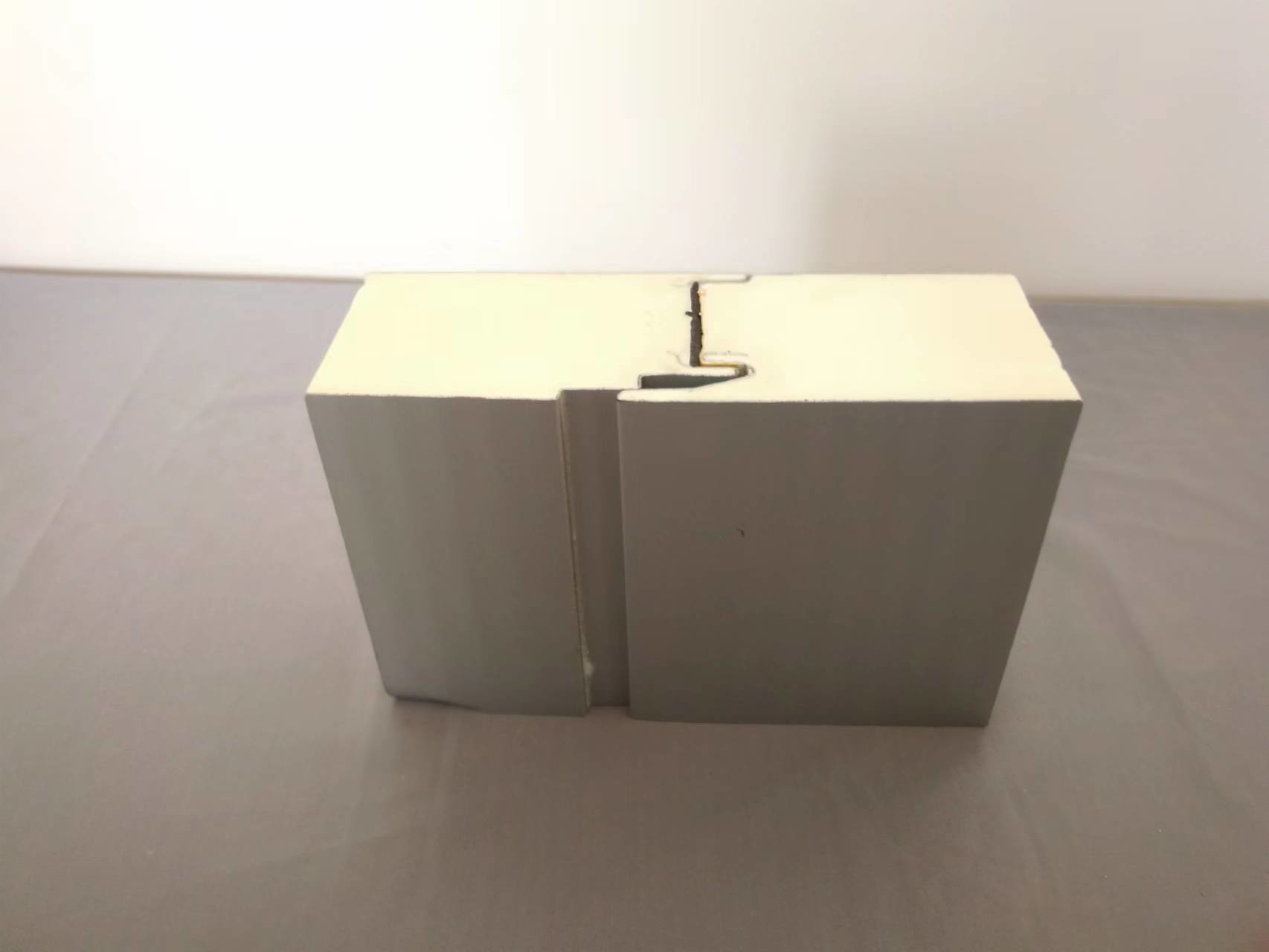

RAL PIR PUR Polyurethane Sandwich Panel Wall Roof Insulation Thermal

  • RAL PIR PUR Polyurethane Sandwich Panel Wall Roof Insulation Thermal
  • RAL PIR PUR Polyurethane Sandwich Panel Wall Roof Insulation Thermal
Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Polyurethane Sandwich Panel
Document Product Brochure PDF
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Insulation Thermal RAL Color PUR Polyurethane Sandwich Wall Roof Panel Structure PUR Sandwich Panel
Design Style Modern Material Polyurethane
Soundproof Yes After-sale Service Online Technical Support
Heat Insulation Yes Thickness 50-200mm
Usage Construction Insulation,brick Sandwich Panel,Ceiling,walls/doors/roofs/etc,Exterior Partition Wall Width 950mm/960mm/1150mm
Color Required
Highlight

Insulation PUR Sandwich Panel

,

Wall PUR Sandwich Panel

,

Roof pur pir sandwich panel
Leave a Message
Product Description

Insulation Thermal RAL Color PUR Polyurethane Sandwich Wall Roof Panel

Product Description:

In terms of raw material proportioning and process output,PUR products employ the globally advanced six component online automatic mixing and pouring technology and have realized six-component continuous foaming for the first time in China. With the technology, mixing and proportioning process may be finished in an online way;the formula may be adjusted according to environmental changes; air feeding and mixing devices may be used to make raw material mixing more even and foam finer, thus producing high-strength, energy-saving and environment friendly building boards.

Features:

High coefficient of the thermal insulation,

Fast speed of the construction process,

Fire-resistance,

Energy efficiency enables us to apply cost-effective solution while keeping the preferable temperature level in the building.

Applications:

Industrial buildings,
Store houses and logistic centres,
Commercial buildings and offices,
Food industry facilities,
Agricultural objects
Sport halls.

Technical Parameters:

Allowable vertical load and thermal performance of BAODU polyurethane sandwich wall
panel (allowable deflection f≤L/200)
S(mm) W/m2k G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.31 10.06 L(m) 3.52 3.04 2.69 2.42 2.11
75 0.21 11.06 L(m) 4.71 4.09 3.64 3.29 2.89
100 0.19 12.05 L(m) 5.76 5.02 4.47 4.05 3.56
120 0.16 12.84 L(m) 6.53 5.68 5.07 4.60 4.04
150 0.11 14.04 L(m) 7.56 6.58 5.87 5.32 4.68
Note:0.5mm outer steel sheet and 0.4mm inner steel
Allowable Span and Thermal Conductivity of BAODU Polyurethane Roof Sandwich
Panel(allowable deformation f≤L/240)
S(mm) W/m2k G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
30 0.32 9.32 L(m) 2.60 2.30 2.08 1.91 1.72
50 0.31 10.15 L(m) 3.59 3.17 2.85 2.61 2.33
75 0.21 11.18 L(m) 4.64 4.07 3.66 3.34 2.96
100 0.19 12.22 L(m) 5.57 4.88 4.38 3.99 3.53
120 0.16 13.05 L(m) 6.28 5.49 4.92 4.48 3.97
150 0.11 14.3 L(m) 7.30 6.39 5.73 5.22 4.62
Note:0.5mm outer steel sheet and 0.4mm inner steel


Customization:

Customized Polyurethane Sandwich Panel by BAODU

Brand Name: BAODU
Model Number: Polyurethane Sandwich Panel
Place of Origin: Hebei,China
Certification: CE
Minimum Order Quantity: Discussible
Price: Reasonable
Packaging Details: In general, for steel structure, we use the steel frame packing to keep goods not to be broken. For sandwich panel and color steel sheet, we use the plastic packing. If the clients need special packing will according to their requirements.
Delivery Time: 15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Square Meters per Day
Steel Thinckness: 0.4mm-0.8mm
Soundproof: Yes
Length: Customized
After-sale Service: Online Technical Support

Highlights

PU Roof Wall Sandwich Panel, PU Roof Wall Sandwich Panel, Sandwich Panels Polyurethane

Support and Services:

We provide technical support and service for Polyurethane Sandwich Panel. Our team of highly experienced professionals are here to help you with your specific requirements. We offer a wide range of services, from consultation to installation and maintenance. Our experts can help you choose the right product for your project, provide advice and guidance on installation, and provide troubleshooting and maintenance. We also provide training to ensure that you are able to properly care for and use your Polyurethane Sandwich Panel.

Company Profile:

.Baodu International Advanced Construction Material Co., Ltd was established in January 2010 with the office in Beijing and factory in Hebei, China. Baodu is a designer, manufacturer, supplier and exporter of industrial noise comprehensive treatment, steel structure, sandwich panel and prefab house. Baodu has an annual output of 6 million square meters of acoustic sandwich panels, 100000 tons of steel structures and 1 million square meters of floor decking sheet. The products are sold in more than 30 countries and regions around the world. Baodu has a professional design team with more than 10 years’ experience, including 5 senior engineers, 20 engineers, and 35 technicians. Baodu has several energy saving and environment protection intellectual property rights, construction and environment protection design qualification, CE certification and Russian GOST certification etc. Baodu participated in the military parade village project for the 60th anniversary of China and project of Beijing Daxing International Airport. Under the guidance of China's "one belt, one road" strategy, Baodu has also undertaken overseas projects such as the project of Thar,Pakistan coal fired power plant, Hasyan Dubai power plant and so on. Finally, welcome your coming to Baodu for a visit and cooperation!
