Customized Rockwool Acoustic Insulation Sandwich Panel Wall Steel Soundproof

Place of Origin Hebei, China
Brand Name BAODU
Certification CE,ISO9001
Minimum Order Quantity Discussible
Price $10-12square meter

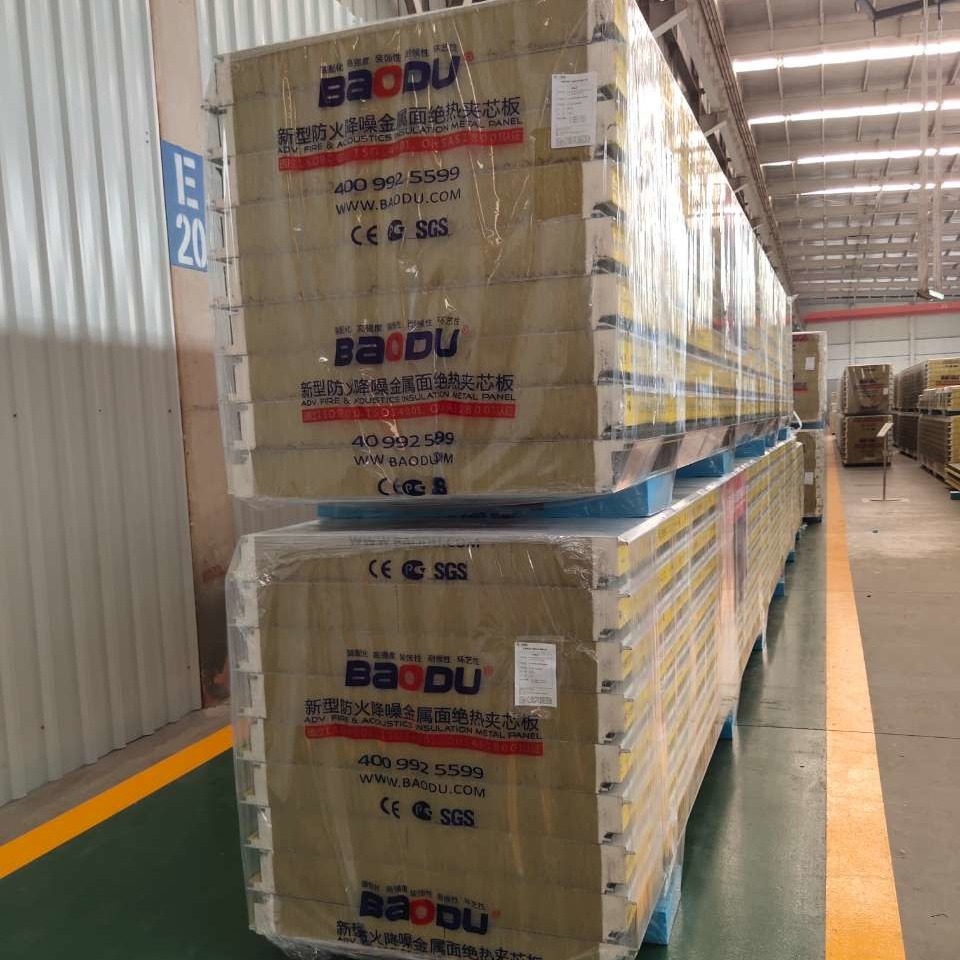

Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Insulated Fireproof RockWool Acoustic Wall Sandwich Panel Metal Soundproof Width 950mm,960mm,1000mm
Thickness 50mm-200mm,etc Density 100kg/m3
Steel Thickness 0.4mm-0.8mm Type Rock Wool Sandwich Panels
Length Customized Application Wall,Building,Warehouse,Roofing,wall And Roof
Usage Construction Insulation,shop,Outdoor,office Advantage Superior Fireproof-insulation,fire Proof,Light Weight&Easy To Install,Fireproof,Innovative Technology
High Light

Rockwool insulation sandwich panel

,

Customized insulation sandwich panel

,

Soundproof steel sandwich panel

Leave a Message
Product Description

Pu Sealing RockWool Sandwich Panel Insulated Thermal Fireproof Waterproof Exterior

Baodu Mineral Wool Core Sandwich Panels.Its two outer sheets are joined by a central insulating core formed by mineral wool (rock or glass). This allows our Mineral Wool Core sandwich panels to achieve high resistance and fire resistance, making them an ideal product for any sector in which this problem is a priority: industrial construction, public assistance, residential construction, shipbuilding, etc.

Specification

 Pu Sealing RockWool Sandwich Panel Insulated Thermal Fireproof Waterproof Exterior

Product Rock Wool Sandwich Panel Rock Wool Sandwich Panel with Pur or Pir Edge
Width 1000mm 1000mm
Top plate/Bottom 0.4-1mm 0.4-1mm
Core thickness 50mm,75mm,100mm,120mm,150mm,200mm 50mm,75mm,100mm,120mm,150mm,200mm
Length Less than 11.8m (For transport need) Less than 11.8m (For transport need)
Density 100-180kg/m3 100-180kg/m3
Color White, Red, Blue,Customized White, Red, Blue,Customized
Connection Way Hidden Hidden
Sound insulation 20-25db 20-25db
Application various walls of large size factory warehouse, exhibition halls,gymnasiums various walls of large size factory warehouse,exhibition halls, gymnasiums

Pu Sealing RockWool Sandwich Panel Insulated Thermal Fireproof Waterproof Exterior

Features

Baodu wall use the 1000mm dislocation double mortise and tenon joint with Pu sealing rockwool sandwich panel. (connection picture as follows )
1.The PU sealing not only can strength the connection but also can make sure the connection be more smooth. And Pu sealing also can reduce the thermal bridging situation in extremely cold area.
2.The hidden screw facade can prevent the rain or chemical corrosion so that improve the sandwich panel life , which also can make it more beautiful.

3.Dislocation double mortise and tenon joint can make sure the sandwich panel connection be more fasten and which also can prevent the rain goes back to the interior.

4.Double steel plates are used in the connection part which can improve sandwich panel wind-proof function without any nails.

5.Sponge bar are used in the connection part which can provide better airtightness and free from thermal bridging.

Our technology is unique.

The secret of customising each of our panels lies in our continuous manufacturing process which guarantees uniformity of the parts and makes planning more flexible. It allows the production of designs with different lengths and thicknesses (from 30 to 200mm), made to order accessories and finishes adapted to climatic and environmental factors.

The high acoustic properties of our Mineral Wool Core sandwich panels significantly improve the environmental quality in the industrial sector, providing truly innovative solutions.

More than a mass-produced product, each unit of our Mineral Wool sandwich panels is the result of listening to the customer, their needs and concerns. We create a differentiated response in collaboration with the client, which allows us to provide you with the specific solutions you need during each phase of the project and the execution of your work.



Technical parameters of BAODU new model fireproof sandwich panel
Allowable vertical load and thermal conductivity of BAODU new model fireproof rockwool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.75 15.53 L(m) 3.66 3.13 2.75 2.46 2.12
70 0.53 18.37 L(m) 4.90 4.22 3.73 3.35 2.91
100 0.41 21.21 L(m) 5.99 5.17 4.58 4.12 3.59
125 0.36 24.05 L(m) 6.91 5.96 5.28 4.79 4.14
150 0.31 26.88 L(m) 7.82 6.75 5.98 5.37 4.68
200

0.23

22.78 L(m) 9.65 8.33 7.38 6.62 5.77
Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.69 12.95 L(m) 3.74 3.23 2.86 2.57 2.23
70 0.47 14.50 L(m) 5.01 4.34 3.86 3.48 3.05
100 0.36 16.04 L(m) 6.21 5.32 4.73 4.28 3.75
125 0.34 17.06 L(m) 7.11 6.31 5.77 4.93 4.32
150 0.33 19.14 L(m) 8.00 6.94 6.18 5.58 4.89
200 0.30 22.78 L(m) 9.79 8.56 7.63 6.88 6.00

Advantages

Fire resistance

Sound insulation

High coefficient of the thermal insulation

Fast speed of the construction

Energy efficiency - that enables us to apply cost-effective solutions while keeping the preferred temperature level in the building

Project Case

Customized Rockwool Acoustic Insulation Sandwich Panel Wall Steel Soundproof 0

Customized Rockwool Acoustic Insulation Sandwich Panel Wall Steel Soundproof 1

Customized Rockwool Acoustic Insulation Sandwich Panel Wall Steel Soundproof 2
