Rockwool Puf Aluminium Sandwich Panel For Metal Wall Cladding System

Place of Origin Hebei, China
Brand Name BAODU
Certification CE,ISO9001
Minimum Order Quantity Discussible
Price $10-12square meter
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pu Sealing Mineral Wool Rockwool Core Sandwich Panels Width 950mm,960mm,1000mm
Thickness 50mm-200mm,etc Density 100kg/m3
Steel Thickness Customized Color Customized
Type Rock Wool Sandwich Panels Length Less Than 11.8m
Application Wall,Building,Warehouse,Roofing,wall And Roof Usage Construction Insulation,shop,Outdoor,office
High Light

Puf Aluminium Sandwich Panel

,

Aluminium Sandwich Panel Cladding

,

aluminium puf panel Cladding

Leave a Message
Product Description

Rockwool Sandwich Panel With Pu Edge Roof And Wall For Metal Wall Cladding System

Baodu Mineral Wool Core Sandwich Panels.Its two outer sheets are joined by a central insulating core formed by mineral wool (rock or glass). This allows our Mineral Wool Core sandwich panels to achieve high resistance and fire resistance, making them an ideal product for any sector in which this problem is a priority: industrial construction, public assistance, residential construction, shipbuilding, etc.

Specification

 Pu Sealing RockWool Sandwich Panel Insulated Thermal Fireproof Waterproof Exterior

Product Rock Wool Sandwich Panel Rock Wool Sandwich Panel with Pur or Pir Edge
Width 1000mm 1000mm
Top plate/Bottom 0.4-1mm 0.4-1mm
Core thickness 50mm,75mm,100mm,120mm,150mm,200mm 50mm,75mm,100mm,120mm,150mm,200mm
Length Less than 11.8m (For transport need) Less than 11.8m (For transport need)
Density 100-180kg/m3 100-180kg/m3
Color White, Red, Blue,Customized White, Red, Blue,Customized
Connection Way Hidden Hidden
Sound insulation 20-25db 20-25db
Application various walls of large size factory warehouse, exhibition halls,gymnasiums various walls of large size factory warehouse,exhibition halls, gymnasiums

Pu Sealing RockWool Sandwich Panel Insulated Thermal Fireproof Waterproof Exterior

Features:

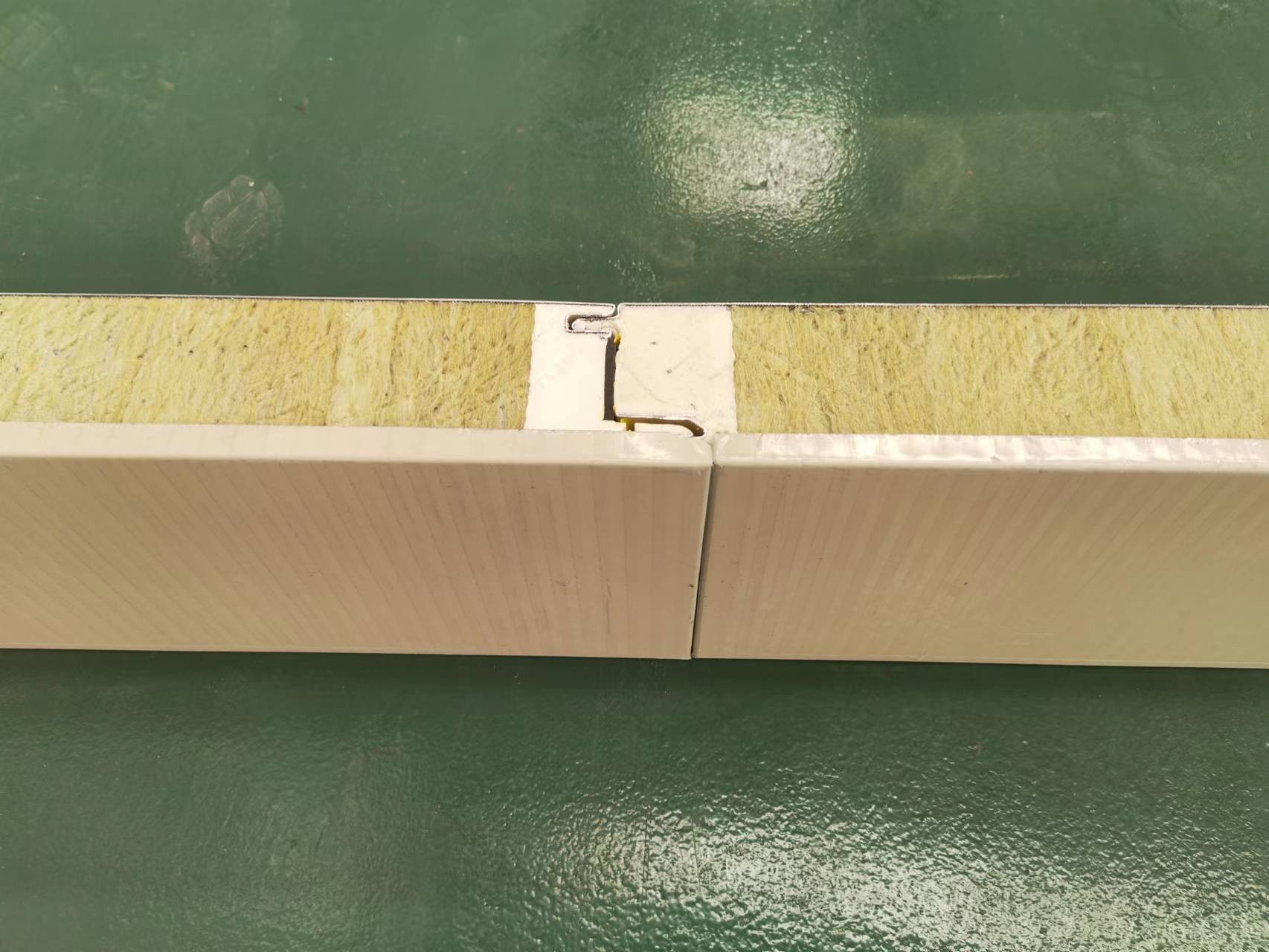

Baodu wall use the 1000mm dislocation double mortise and tenon joint with Pu sealing rockwool sandwich panel. (connection picture as follows )
1.The PU sealing not only can strength the connection but also can make sure the connection be more smooth. And Pu sealing also can reduce the thermal bridging situation in extremely cold area.
2.The hidden screw facade can prevent the rain or chemical corrosion so that improve the sandwich panel life , which also can make it more beautiful.

3.Dislocation double mortise and tenon joint can make sure the sandwich panel connection be more fasten and which also can prevent the rain goes back to the interior.

4.Double steel plates are used in the connection part which can improve sandwich panel wind-proof function without any nails.

5.Sponge bar are used in the connection part which can provide better airtightness and free from thermal bridging

Technical parameters of BAODU new model fireproof sandwich panel
Allowable vertical load and thermal conductivity of BAODU new model fireproof rockwool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.75 15.53 L(m) 3.66 3.13 2.75 2.46 2.12
70 0.53 18.37 L(m) 4.90 4.22 3.73 3.35 2.91
100 0.41 21.21 L(m) 5.99 5.17 4.58 4.12 3.59
125 0.36 24.05 L(m) 6.91 5.96 5.28 4.79 4.14
150 0.31 26.88 L(m) 7.82 6.75 5.98 5.37 4.68
200

0.23

22.78 L(m) 9.65 8.33 7.38 6.62 5.77
Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.69 12.95 L(m) 3.74 3.23 2.86 2.57 2.23
70 0.47 14.50 L(m) 5.01 4.34 3.86 3.48 3.05
100 0.36 16.04 L(m) 6.21 5.32 4.73 4.28 3.75
125 0.34 17.06 L(m) 7.11 6.31 5.77 4.93 4.32
150 0.33 19.14 L(m) 8.00 6.94 6.18 5.58 4.89
200 0.30 22.78 L(m) 9.79 8.56 7.63 6.88 6.00

Advantages

Easy assembly

The simplicity of baodu anels, together faster assembly than any other cladding solution.

Eco-friendly

Each unit of energy consumed in the manufacturing process saves the equivalent of 25 units when in use.

Air-tightness and water-tightness

The surfaces of baodu panels are waterproof and air-tight.baodu mineral wool is water resistant thanks to its waterrepellent qualities.

Acoustics

The elasticity of their open structure gives the panels a high capacity to absorb the acoustic energy produced by noise and avoids the coupling effect of stationary sound waves.

Fire and flame resistance

Being inorganic the panels do not burn nor produce smoke. In addition, they maintain their thermal insulation capacity even at high temperatures.

Hygiene

Mineral wools are inert elements which do not allow the growth of microorganisms nor insects. They do not serve as insulation for rodents and are nonbiodegradable.

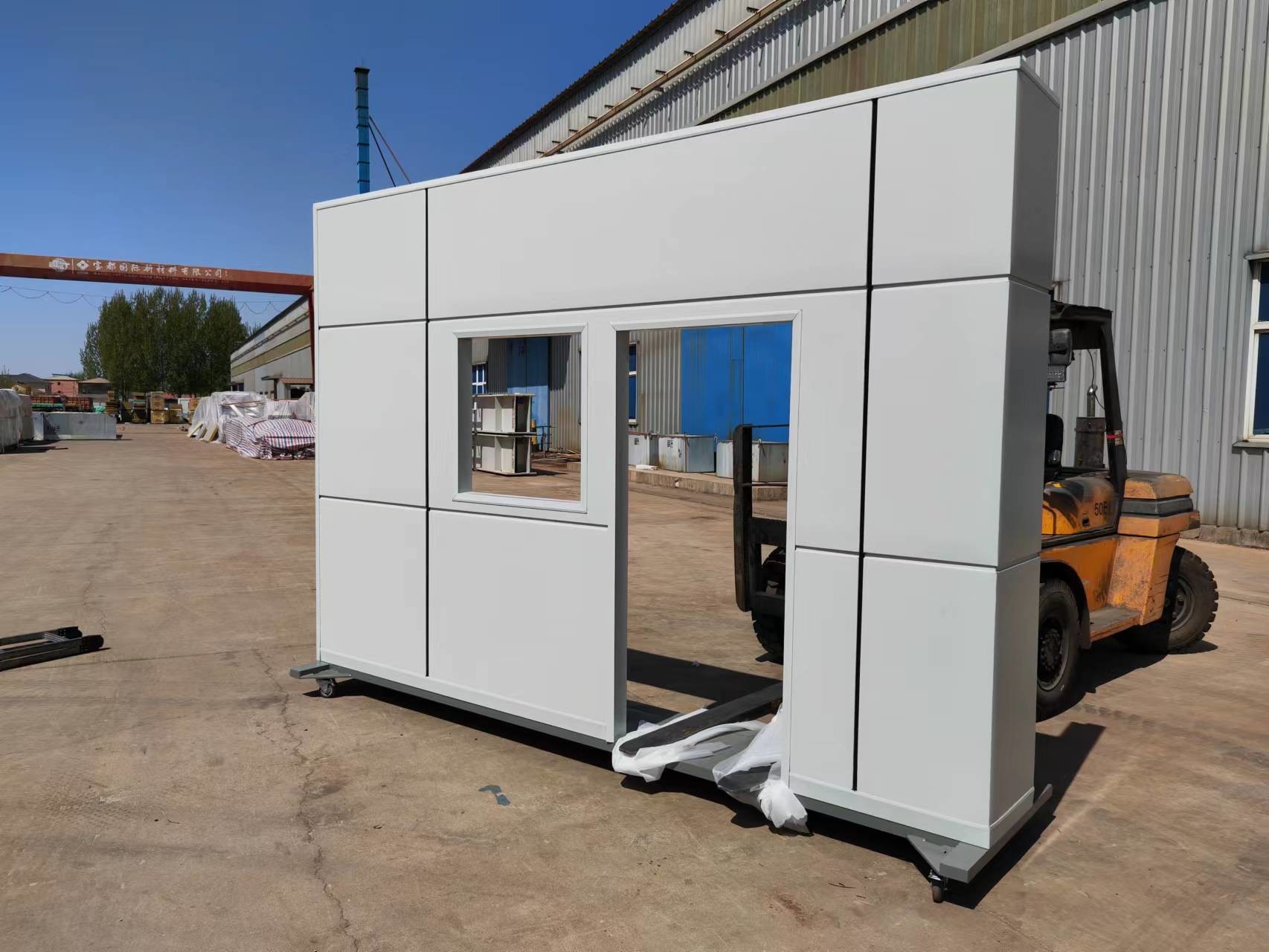

Project Case

Rockwool Puf Aluminium Sandwich Panel For Metal Wall Cladding System 0

Rockwool Puf Aluminium Sandwich Panel For Metal Wall Cladding System 1

Rockwool Puf Aluminium Sandwich Panel For Metal Wall Cladding System 2
