Grade A Rockwool Sandwich Panel Roofing Sheets With Polyurethane Sealing Fireproof
| Place of Origin | Hebei, China |
|---|---|
| Brand Name | BAODU |
| Certification | CE,ISO9001 |
| Minimum Order Quantity | Discussible |
| Price | Discussible |
| Packaging Details | In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements. |
| Delivery Time | 15days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 Square Meters per Day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Rockwool Sandwich Panel With Polyurethane Sealing Fireproof Grade A Sandwich Panels | Width | 950mm,960mm,1000mm |
|---|---|---|---|
| Thickness | 50mm-200mm,etc | Density | 100-120kg/m3 |
| Steel Thickness | 0.4-0.8mm | Color | Customized |
| Length | Less Than 11.8m | Application | Wall,Building,Warehouse,Roofing,wall And Roof |
| Advantage | Superior Fireproof-insulation,fire Proof,Light Weight&Easy To Install,Fireproof,Innovative Technology | Fireproof Grade | A |
| High Light | Roofing Rockwool Sandwich Panel,Sealing Rockwool Sandwich Panel,Polyurethane sandwich roofing sheets |
||
Product Description

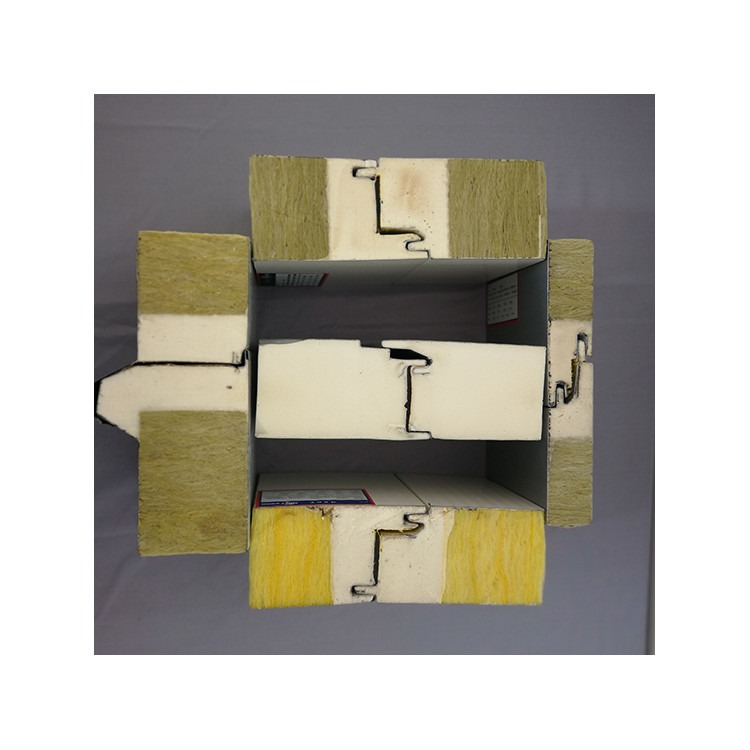

Rockwool Sandwich Panel With Polyurethane Sealing Fireproof Grade A Sandwich Panels
The rock wool clean plate use the color steel pressing plate as the surface layer,the structure rock wool as the central layer,use the special adhesive composite thus form a kind of sandwich structure plate.It belongs to strongs fire proof effect clean plate whose four side is sealed,add reinforcement of rib in the middle of the plate,to make the plate more smooth,more compression bearing.
Specification
|
Rockwool Sandwich Panel With Polyurethane Sealing Fireproof Grade A Sandwich Panels
Rockwool Sandwich Panel With Polyurethane Sealing Fireproof Grade A Sandwich Panels |
Features
1. Good Thermal Insulation, an energy saving material
2. Good Fire Resistance: B1 grade for total panel

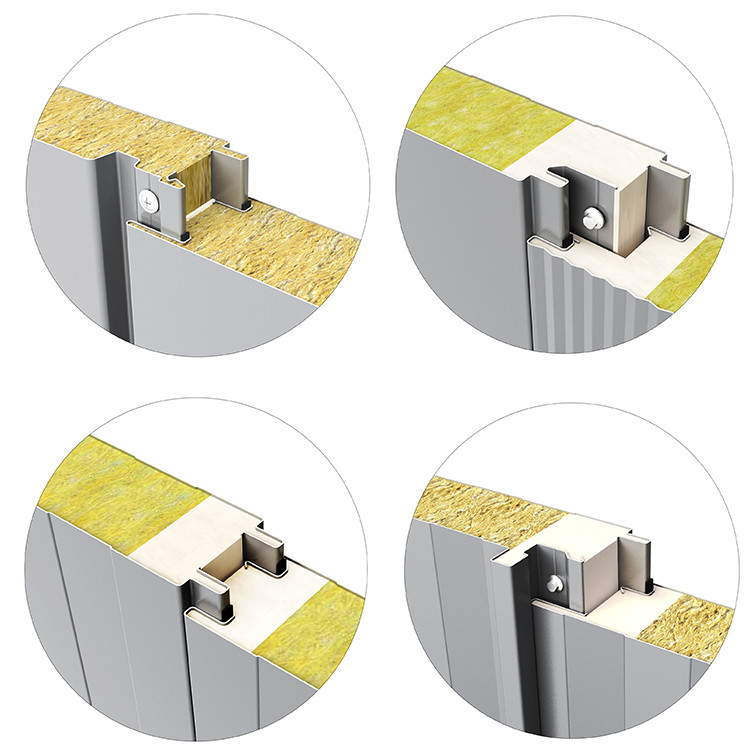

3. Special Connection Design: Screw concealed connection
4. Graceful Finish: embossment, small wave, big rib and flat finish
5. Advance Machine: The longest main machine
6. Raw Material: Only quality steel is selected
7. Strict Quality Control:CE
8. Wide Usage: Used as roof and wall in workshop and warehouse
| Technical parameters of BAODU new model fireproof sandwich panel | ||||||||
| Allowable vertical load and thermal conductivity of BAODU new model fireproof rockwool roof sandwich panel (allowable deflection f≤L/200) | ||||||||
| S(mm) | W/m²K | G(kg) | P=KN/m2 | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50 | 0.75 | 15.53 | L(m) | 3.66 | 3.13 | 2.75 | 2.46 | 2.12 |
| 70 | 0.53 | 18.37 | L(m) | 4.90 | 4.22 | 3.73 | 3.35 | 2.91 |
| 100 | 0.41 | 21.21 | L(m) | 5.99 | 5.17 | 4.58 | 4.12 | 3.59 |
| 125 | 0.36 | 24.05 | L(m) | 6.91 | 5.96 | 5.28 | 4.79 | 4.14 |
| 150 | 0.31 | 26.88 | L(m) | 7.82 | 6.75 | 5.98 | 5.37 | 4.68 |
| 200 |
0.23 |
22.78 | L(m) | 9.65 | 8.33 | 7.38 | 6.62 | 5.77 |
| Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200) | ||||||||
| S(mm) | W/m²K | G(kg) | P=KN/m2 | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50 | 0.69 | 12.95 | L(m) | 3.74 | 3.23 | 2.86 | 2.57 | 2.23 |
| 70 | 0.47 | 14.50 | L(m) | 5.01 | 4.34 | 3.86 | 3.48 | 3.05 |
| 100 | 0.36 | 16.04 | L(m) | 6.21 | 5.32 | 4.73 | 4.28 | 3.75 |
| 125 | 0.34 | 17.06 | L(m) | 7.11 | 6.31 | 5.77 | 4.93 | 4.32 |
| 150 | 0.33 | 19.14 | L(m) | 8.00 | 6.94 | 6.18 | 5.58 | 4.89 |
| 200 | 0.30 | 22.78 | L(m) | 9.79 | 8.56 | 7.63 | 6.88 | 6.00 |
Project Case
Company Profile
Baodu International Advanced Construction Material Co., Ltd was established in January 2010 with the office in Beijing and factory in Hebei, China. Baodu is a designer, manufacturer, supplier and exporter of industrial noise comprehensive treatment, steel structure, sandwich panel and prefab house. Baodu has an annual output of 6 million square meters of acoustic sandwich panels, 100000 tons of steel structures and 1 million square meters of floor decking sheet. The products are sold in more than 30 countries and regions around the world. Baodu has a professional design team with more than 10 years’ experience, including 5 senior engineers, 20 engineers, and 35 technicians. Baodu has several energy saving and environment protection intellectual property rights, construction and environment protection design qualification, CE certification and Russian GOST certification etc. Baodu participated in the military parade village project for the 60th anniversary of China and project of Beijing Daxing International Airport. Under the guidance of China's "one belt, one road" strategy, Baodu has also undertaken overseas projects such as the project of Thar,Pakistan coal fired power plant, Hasyan Dubai power plant and so on. Finally, welcome your coming to Baodu for a visit and cooperation!
