75mm 80mm 200mm Sandwich Panel Rockwool For Warehouse
| Place of Origin | Hebei, China |
|---|---|
| Brand Name | BAODU |
| Certification | CE |
| Minimum Order Quantity | Discussible |
| Price | Discussible |
| Packaging Details | In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements. |
| Delivery Time | 15days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000 Square Meters per Day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 50mm 75mm 80mm 100mm 150mm 200mm Insulated Wall And Roof RockWool Sandwich Panel | Length | Customer's Choice |
|---|---|---|---|
| Width | 950mm,960mm | Thickness | 50mm-200mm,etc |
| Density | 100kg/m3 | Steel Thickness | 0.4-0.8mm |
| Application | Wall,Building,Warehouse,Roofing,wall And Roof | Material | Color Steel Sheet,Sandwich Panel,Color Steel Sheet&Polyurethane |
| Advantage | Superior Fireproof-insulation,fire Proof,Light Weight&Easy To Install,Fireproof,Innovative Technology | Fireproof | A Grade |
| High Light | 75mm sandwich panel rockwool,80mm sandwich panel rockwool,Warehouse 75mm sandwich panel |
||
Product Description
50mm 75mm 80mm 100mm 150mm 200mm Insulated Wall And Roof RockWool Sandwich Panel
The rockwool sandwich panels are used to construct external walls and internal partitions in the single- or multiple-span shell structure.
The rockwool sandwich panels can be installed both vertically and horizontally. The core of the panel comprises mineral wool of 100 kg/m3.
Thanks to their properties, i.e. high fire-resistance parameters, the rockwool sandwich panels can be used to construct buildings with high fire ratings.
Specification
|
50mm 75mm 80mm 100mm 150mm 200mm Insulated Wall And Roof RockWool Sandwich Panel
50mm 75mm 80mm 100mm 150mm 200mm Insulated Wall And Roof RockWool Sandwich Panel |
In particular baodu rockwool sandwich panels can be applied in:
Industrial buildings
Store houses and logistic centres,
Commercial buildings and offices,
Food industry facilities,
Agricultural objects
Sport halls.
| Technical parameters of BAODU new model fireproof sandwich panel | ||||||||
| Allowable vertical load and thermal conductivity of BAODU new model fireproof rockwool roof sandwich panel (allowable deflection f≤L/200) | ||||||||
| S(mm) | W/m²K | G(kg) | P=KN/m2 | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50 | 0.75 | 15.53 | L(m) | 3.66 | 3.13 | 2.75 | 2.46 | 2.12 |
| 70 | 0.53 | 18.37 | L(m) | 4.90 | 4.22 | 3.73 | 3.35 | 2.91 |
| 100 | 0.41 | 21.21 | L(m) | 5.99 | 5.17 | 4.58 | 4.12 | 3.59 |
| 125 | 0.36 | 24.05 | L(m) | 6.91 | 5.96 | 5.28 | 4.79 | 4.14 |
| 150 | 0.31 | 26.88 | L(m) | 7.82 | 6.75 | 5.98 | 5.37 | 4.68 |
| 200 |
0.23 |
22.78 | L(m) | 9.65 | 8.33 | 7.38 | 6.62 | 5.77 |
| Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200) | ||||||||
| S(mm) | W/m²K | G(kg) | P=KN/m2 | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 |
| 50 | 0.69 | 12.95 | L(m) | 3.74 | 3.23 | 2.86 | 2.57 | 2.23 |
| 70 | 0.47 | 14.50 | L(m) | 5.01 | 4.34 | 3.86 | 3.48 | 3.05 |
| 100 | 0.36 | 16.04 | L(m) | 6.21 | 5.32 | 4.73 | 4.28 | 3.75 |
| 125 | 0.34 | 17.06 | L(m) | 7.11 | 6.31 | 5.77 | 4.93 | 4.32 |
| 150 | 0.33 | 19.14 | L(m) | 8.00 | 6.94 | 6.18 | 5.58 | 4.89 |
| 200 | 0.30 | 22.78 | L(m) | 9.79 | 8.56 | 7.63 | 6.88 | 6.00 |
Features:

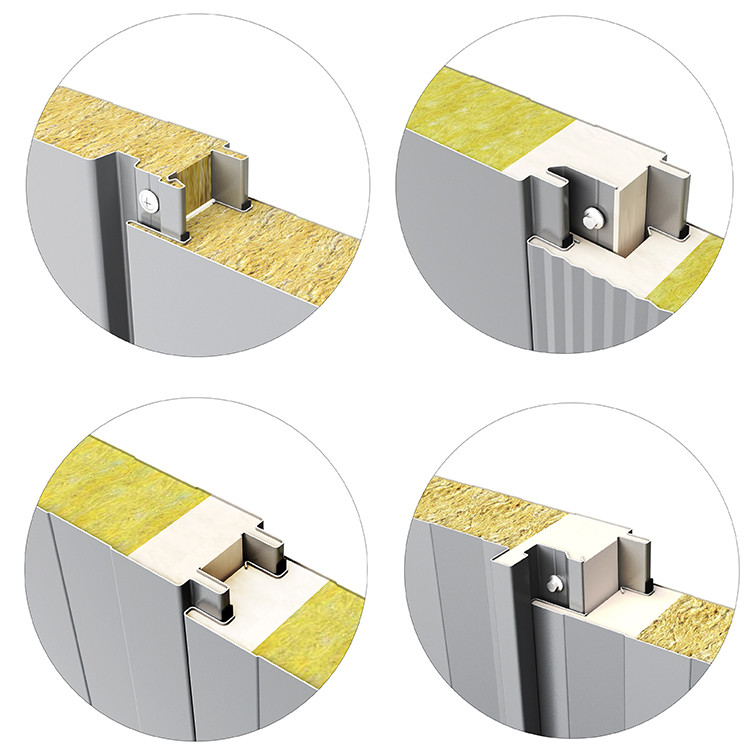

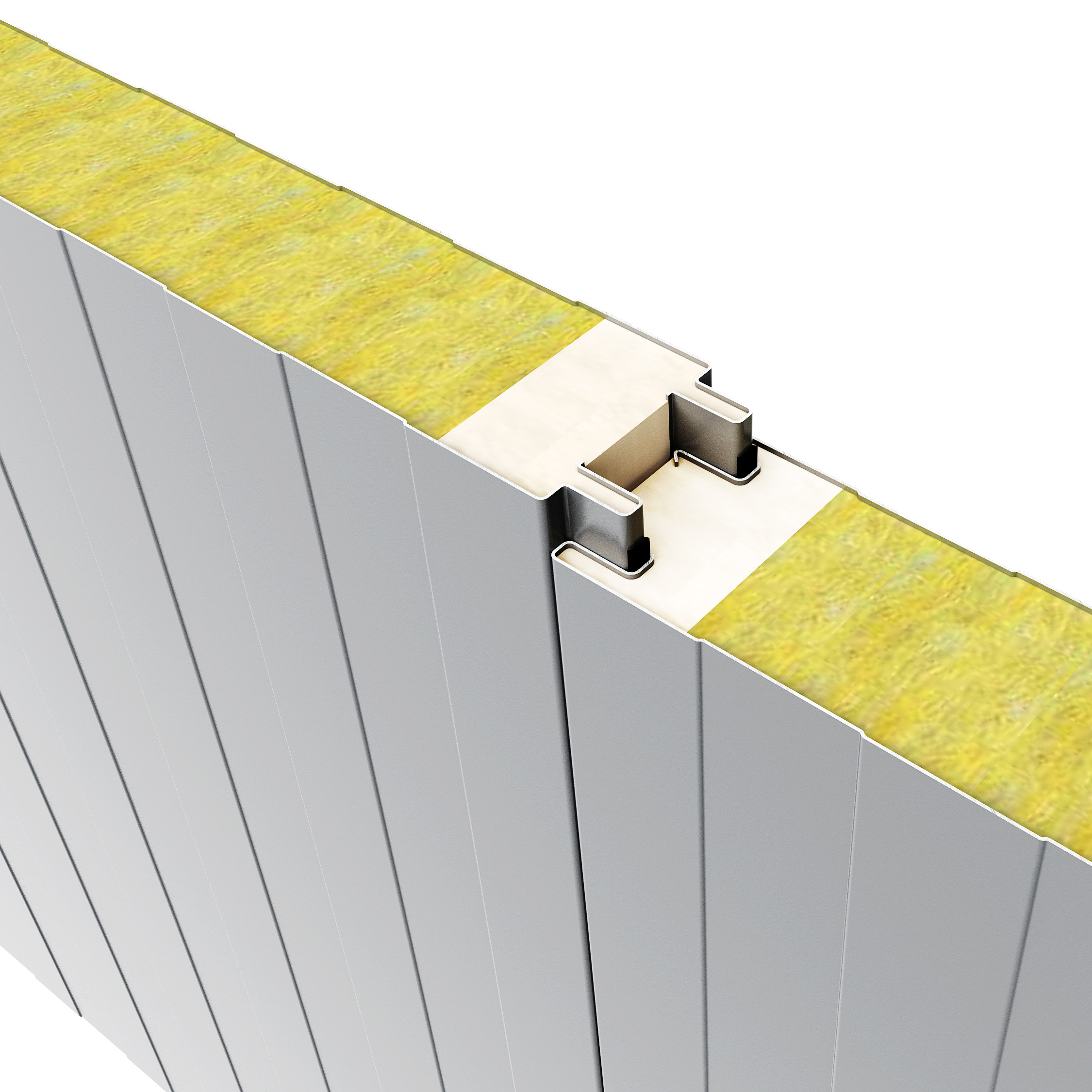

Baodu wall use the 1000mm dislocation double mortise and tenon joint with Pu sealing rockwool sandwich panel. (connection picture as follows )
1.The PU sealing not only can strength the connection but also can make sure the connection be more smooth. And Pu sealing also can reduce the thermal bridging situation in extremely cold area.
2.The hidden screw facade can prevent the rain or chemical corrosion so that improve the sandwich panel life , which also can make it more beautiful.
3.Dislocation double mortise and tenon joint can make sure the sandwich panel connection be more fasten and which also can prevent the rain goes back to the interior.
4.Double steel plates are used in the connection part which can improve sandwich panel wind-proof function without any nails.
5.Sponge bar are used in the connection part which can provide better airtightness and free from thermal bridging
Project Case
Company Profile
Baodu International Advanced Construction Material Co., Ltd was established in January 2010 with the office in Beijing and factory in Hebei, China. Baodu is a designer, manufacturer, supplier and exporter of industrial noise comprehensive treatment, steel structure, sandwich panel and prefab house. Baodu has an annual output of 6 million square meters of acoustic sandwich panels, 100000 tons of steel structures and 1 million square meters of floor decking sheet. The products are sold in more than 30 countries and regions around the world. Baodu has a professional design team with more than 10 years’ experience, including 5 senior engineers, 20 engineers, and 35 technicians. Baodu has several energy saving and environment protection intellectual property rights, construction and environment protection design qualification, CE certification and Russian GOST certification etc. Baodu participated in the military parade village project for the 60th anniversary of China and project of Beijing Daxing International Airport. Under the guidance of China's "one belt, one road" strategy, Baodu has also undertaken overseas projects such as the project of Thar,Pakistan coal fired power plant, Hasyan Dubai power plant and so on. Finally, welcome your coming to Baodu for a visit and cooperation!
WHY CHOOSE BAODU?
As a famous manufacturer and supplier of rockwool sandwich panel in China,BAODU has forged a formidable credibility as the top rockwool Panel Company that offers unrivaled top quality of products and also highest criteria in performance. The manufacturing procedure satisfies worldwide high quality norms and each product offers a testimony to the business principles of accuracy as well as excellence. To get rockwool panel, BAODU is the location of selection with a wide variety of insulation and composite paneling services that offer the best function anywhere meant.
