Alu Zinc Decorative Sandwich Panel PU Customized

  • Alu Zinc Decorative Sandwich Panel PU Customized
  • Alu Zinc Decorative Sandwich Panel PU Customized
Place of Origin HEBEI,CHINA
Brand Name BAODU
Minimum Order Quantity 500square meters
Price $6-7square meter
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 Perch/Perches per Month stainless steel perforated metal sheet

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Width 380 Mm Use Roof,Wall
Color Customized Product Name 16mm Decorative PU Foam Sandwich Panel Insulated Metal Carved Exterior Wall Panel
Application External Interior Wall Panel Insulation Thickness 16mm
Project Solution Capability Graphic Design, 3D Model Design, Length Customized
Warranty More Than 5 Years After-sales Service Provided Online Support,Video Technical Support
High Light

Alu Zinc Decorative Sandwich Panel

,

Customized Decorative Sandwich Panel

,

Customized sandwich panel pu
Leave a Message
Product Description

Baodu panel is made up of three layers:

the top material is embossed metal board coated with Alu-zinc,the middle is fire- safe material and polyurethane foaming and the back is glass fibre paper.

Three layers
Material
Thickness
Top layer
Embossed metal board coated with Alu-zinc
0.3mm
Middle layer
Polyurethane foaming with fire-safe material
15.5mm
Back layer
Glass fibre paper.
0.2mm



The length of Baodu Panel is 3000mm-6000mm,standard length is 3800mm,width is 380mm,and thickness is 16mm.



Length
Width
Thickness
3000-6000mm(standard length:3800mm)
380mm
16mm

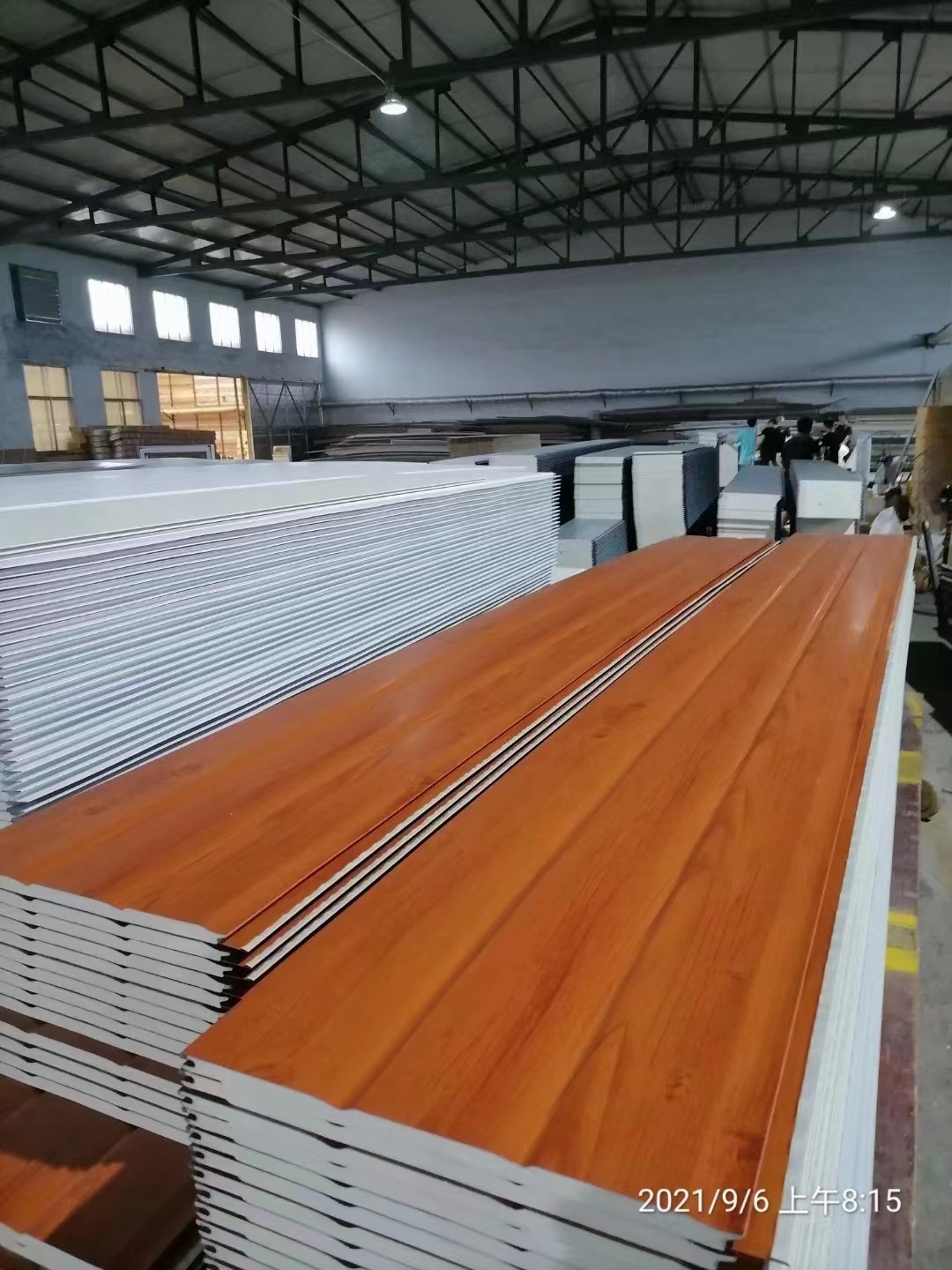

Alu Zinc Decorative Sandwich Panel PU Customized 0

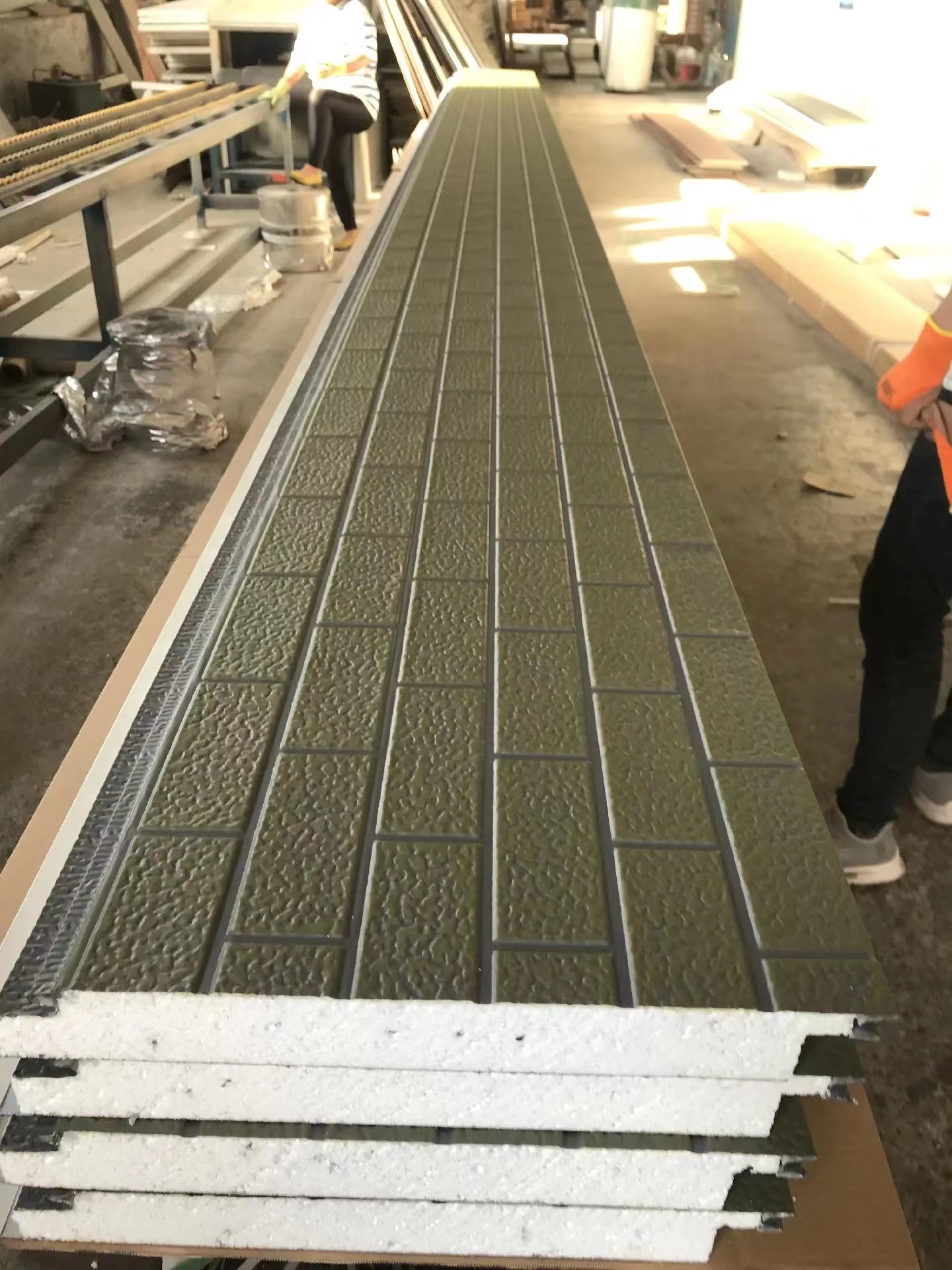

Alu Zinc Decorative Sandwich Panel PU Customized 1





Technical Index of B1 and B2
1
Fire-resistance Grade
B1
B2
2
Core Material
PIR
PUR
3
Weight (3 layers)
4.1kg/m2
3.6kg/m2
4
Density(core material)
45kg/m3
31.2kg/m3
5
Thermal Conductivity
0.018w/mk
0.024w/mk
6
Thermal Resistance
1.8m2·k/w
0.73m2·k/w
7
Heat Transfer Coefficient
0.51w/(m2·k)
1.14w/(m2·k)
8
Water Absorption Rate
0.90%
2.50%
  Tips 1: PIR is mainly for government project, chemical plant, cold storage etc.
  2: PUR is mainly for common residential buildings.



Accessory System

Baodu accessory is made up of 6 parts:starting,finishing,connection,out corner,in corner and window part. There are 2 kinds of accessory :aluminum and metal board.



Alu Zinc Decorative Sandwich Panel PU Customized 2 Alu Zinc Decorative Sandwich Panel PU Customized 3

Packing & Delivery

Alu Zinc Decorative Sandwich Panel PU Customized 4Alu Zinc Decorative Sandwich Panel PU Customized 5

Project Case

Alu Zinc Decorative Sandwich Panel PU Customized 6
