Waterproof Rockwool Insulated Sandwich Panel Composite 0.4mm 0.8mm

Place of Origin Hebei,China
Brand Name BAODU
Certification CE
Model Number Rockwool Sandwich Panel
Minimum Order Quantity Discussible
Price Reasonable
Packaging Details In general, for steel structure , we use the steel frame packing to keep goods not to be broken . For sandwich panel and color steel sheet, we use the plastic packing . If the clients need special packing will according to their requirements.
Delivery Time 15days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 Square Meters per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Light Steel 0.4mm 0.8mm Waterproof Rock Wool Sandwich Panel Insulated Sound MOQ Reasonable
Advantage Superior Fireproof-insulation Fire Proof Light Weight&Easy To Install Fireproof Innovative Technology Color Customized
Length Customized Heat-insulation Yes
Design Style Modern Certificate CE
Waterproof Yes Application Wall,Building,Warehouse,Roofing,wall And Roof
High Light

Waterproof insulated sandwich panel

,

Rockwool insulated sandwich panel

,

Rockwool sandwich composite

Leave a Message
Product Description

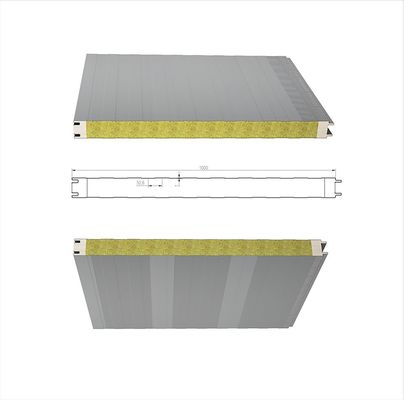

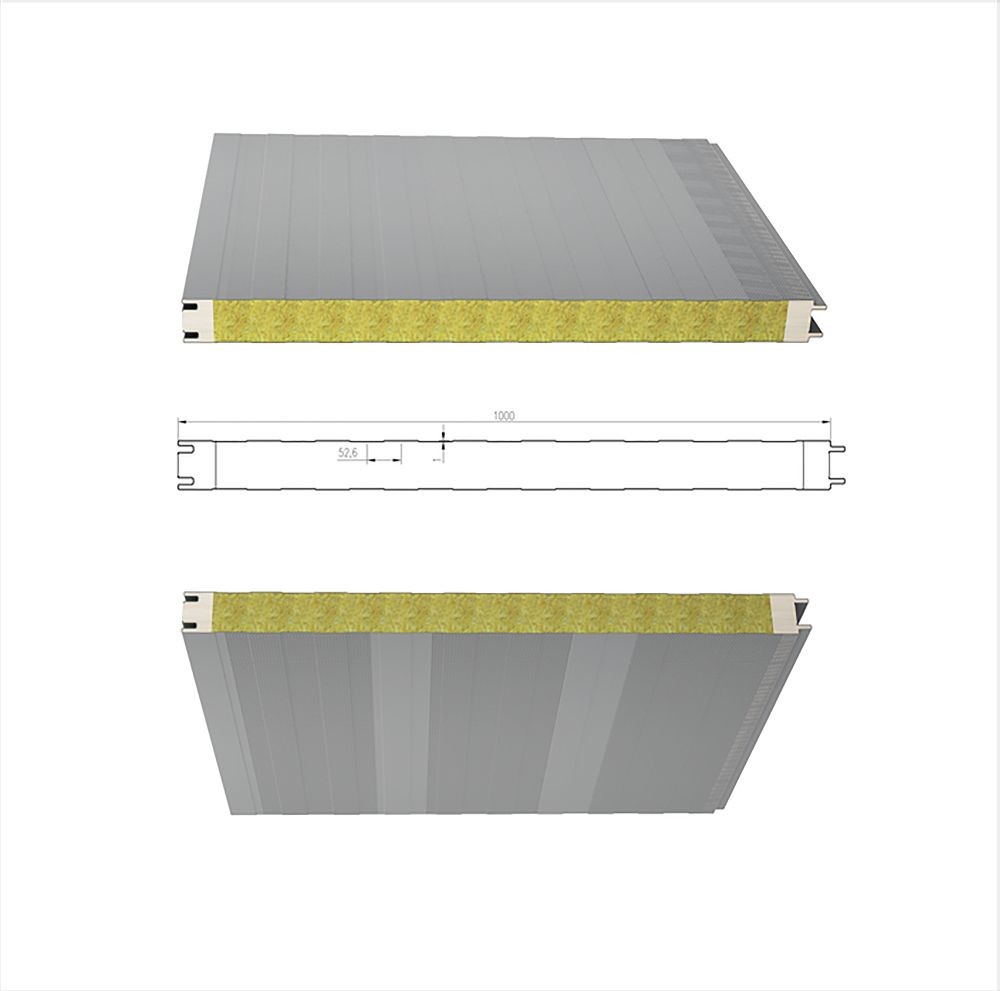

Light Steel 0.4mm 0.8mm Waterproof Rock Wool Sandwich Panel Insulated Sound

Product Description:

Rockwool Sandwich Panel is an insulated panel made of rock wool material. It is an energy-efficient and cost-effective product with excellent thermal insulation performance. The panel is available in a wide range of sizes, and its width and length can be customized according to the user's needs. Moreover, the panel is waterproof and has a PU edge for extra protection. The color of the panel can also be customized to meet various needs. It is an ideal choice for building insulation and roofing insulation, and is widely used in industrial and commercial buildings. With its superior insulation performance and long-term durability, Rockwool Sandwich Panel is the perfect solution for your insulation needs.

Features:

1. Good Thermal Insulation, an energy saving material

2. Good Fire Resistance: B1 grade for total panel

3. Special Connection Design: Screw concealed connection

4. Graceful Finish: embossment, small wave, big rib and flat finish

5. Advance Machine: The longest main machine

6. Raw Material: Only quality steel is selected

7. Strict Quality Control:CE

8. Wide Usage: Used as roof and wall in workshop and warehouse

Applications:

Waterproof Rockwool Insulated Sandwich Panel Composite 0.4mm 0.8mm 0Waterproof Rockwool Insulated Sandwich Panel Composite 0.4mm 0.8mm 1

Technical Parameters:

Technical parameters of BAODU new model fireproof sandwich panel
Allowable vertical load and thermal conductivity of BAODU new model fireproof rockwool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.75 15.53 L(m) 3.66 3.13 2.75 2.46 2.12
70 0.53 18.37 L(m) 4.90 4.22 3.73 3.35 2.91
100 0.41 21.21 L(m) 5.99 5.17 4.58 4.12 3.59
125 0.36 24.05 L(m) 6.91 5.96 5.28 4.79 4.14
150 0.31 26.88 L(m) 7.82 6.75 5.98 5.37 4.68
200 0.23 22.78 L(m) 9.65 8.33 7.38 6.62 5.77
Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200)
S(mm) W/m²K G(kg) P=KN/m2 0.60 0.80 1.00 1.20 1.50
50 0.69 12.95 L(m) 3.74 3.23 2.86 2.57 2.23
70 0.47 14.50 L(m) 5.01 4.34 3.86 3.48 3.05
100 0.36 16.04 L(m) 6.21 5.32 4.73 4.28 3.75
125 0.34 17.06 L(m) 7.11 6.31 5.77 4.93 4.32
150 0.33 19.14 L(m) 8.00 6.94 6.18 5.58 4.89
200 0.30 22.78 L(m) 9.79 8.56 7.63 6.88 6.00


Customization:

Our Rockwool Sandwich Panel is a great choice for those looking for a reliable and high-quality insulated panel. It features a brand name of BAODU, and a model number that is Rockwool Sandwich Panel. It is made in Hebei, China and is certified with CE certification for quality and safety. The minimum order quantity is negotiable, and the price is reasonable. The panel comes with packaging details that include a steel frame packing to keep goods from being broken for steel structure, and plastic packing for sandwich panel and color steel sheet. Special packing is available upon request. The delivery time is about 15 days, and the payment terms include L/C, D/A, D/P, T/T, Western Union, and MoneyGram. The supply ability is up to 5000 Square Meters per Day. The panel is available in a width of 1000mm and a length that is customizable. The panel also comes with after-sale service including online technical support and onsite installation. Additionally, the panel is heat-insulated and its design style is modern.

Packing and Shipping:

Packaging and Shipping for Rockwool Sandwich Panel

Rockwool Sandwich Panel is provided in individual packaging to ensure safe and secure transportation. The packaging is designed to prevent damage to the product during transportation and storage. Each panel is individually wrapped in protective film and packed in cardboard to protect it from scratches and impacts.

For shipping, Rockwool Sandwich Panels are shipped on pallets or in containers. The panels are secured to the pallet or container to ensure that they are not damaged during transportation. The panels are then loaded onto a truck or freight train for delivery to the customer's location.

Why Buy From BAODU?:

BAODU sandwich composite panels have good insulation and heat resistance performance, also have features of high strength, beautiful appearance, fast assembly,fire-proof,heat-proof,flame retardation,etc.Our products are mainly used for building envelopes and all kinds of insulation cladding walls for different construction.We also have rockwool sandwich panel production line,large bending machine shearing machine, drilling machine and CNC control system and automatic cutting, automatic assembly, automatic welding, automatic straightening equipment.That totally eliminates the faults from manual operation.Our strong technical force and highlight scale effect help us to become the first-class fabrication and installation company for steel structure and wall panels.
